High Standard Precision Manual Torque Multiplier Wrench

High Standard Precision Manual Torque Multiplier Wrench
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KS
Type: Torque Wrench
Material: Alloy Steel
Standard: Metric
Surface Treatment: Chrome
Feature: Anti-Explosion
Brand: Kashon

Product Description

High Standard Precision Manual Torque Multiplier Wrench

1.Manual type, Hand Torque Multiplier suitable for the occasions where it requests for high torque but power supply or space is limited.
2.Torque increasing system of precise planetary gears, compact structure, Strong and durable,easymaintenance, accuracy: ±5%
3.All Hand Torque Multiplier models are equipped with anti-returning device, to improve operation convenience and security.
4.High torque/weight ratio, Hand Torque Multiplier assisted with manual torque wrench, to easily realize precise assembly of bolts/nuts.
5.Easily switch clockwise to anti-clockwise direction by the reversing bar and buttons.

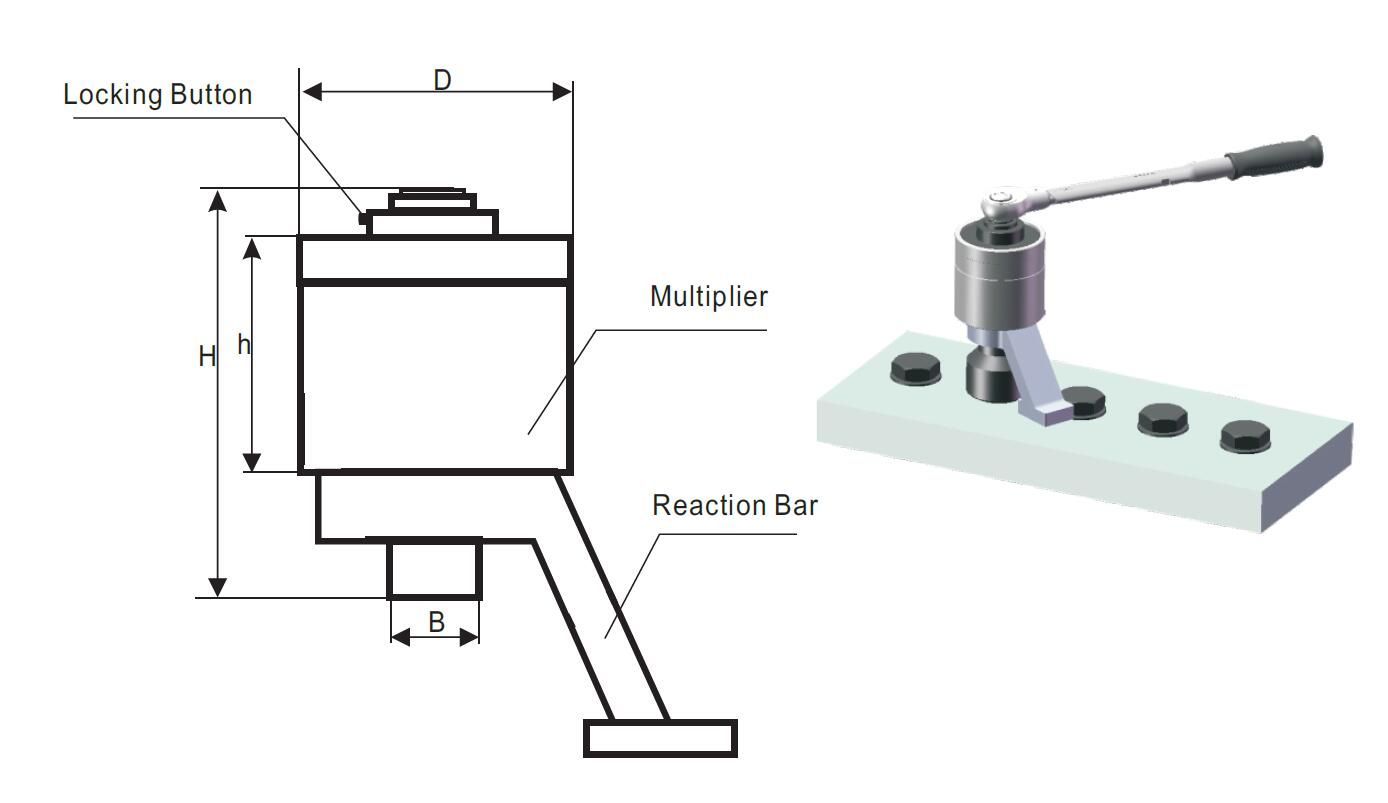

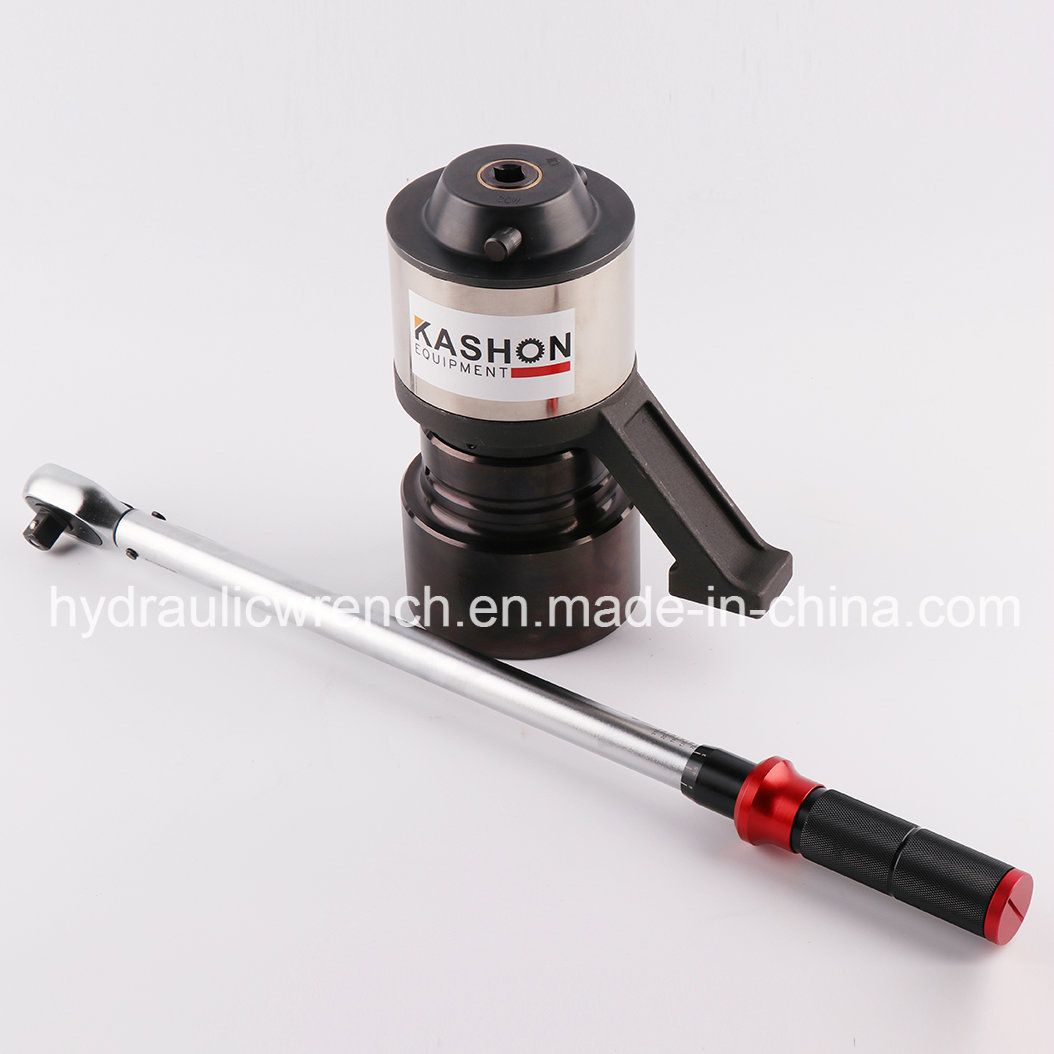

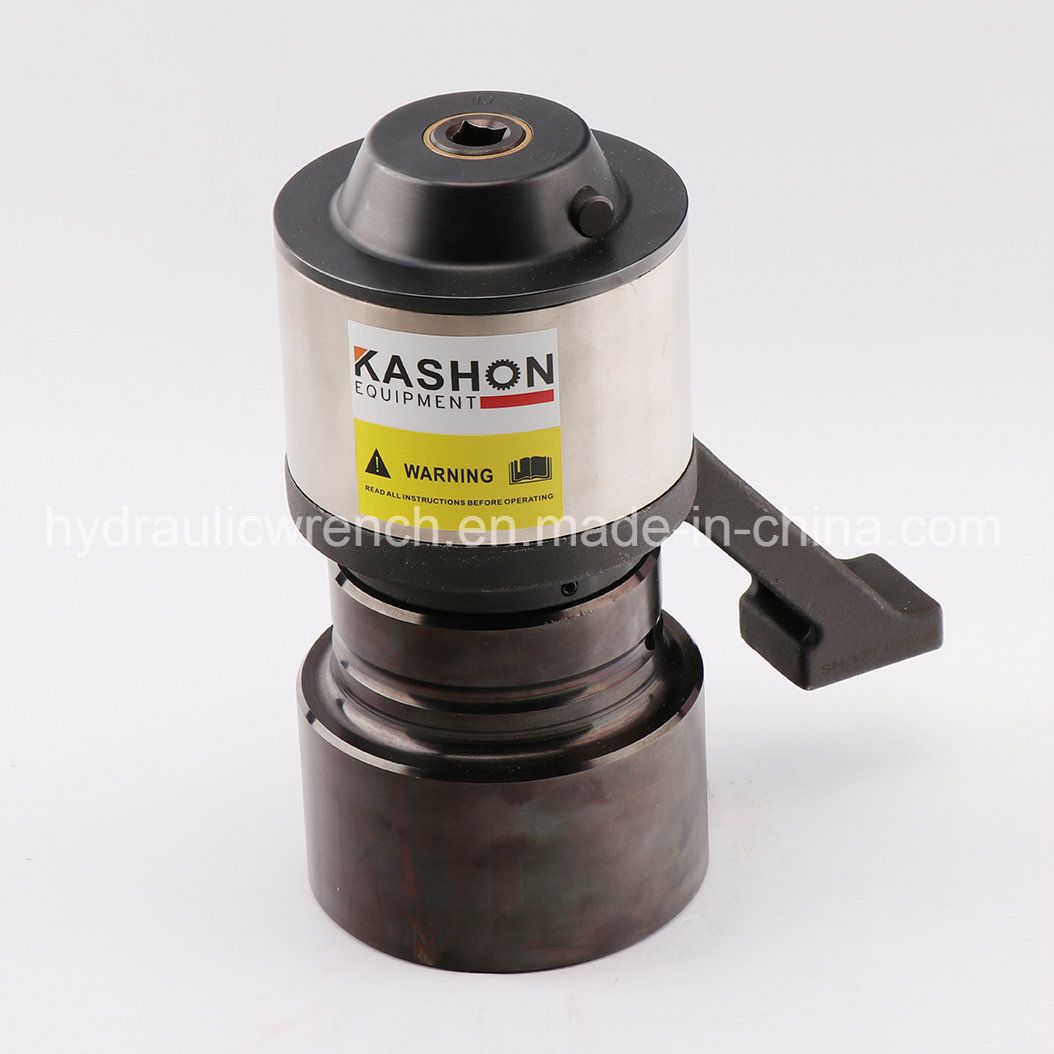

KS-W series torque multiplier(reaction arm "Z" type):

Model

KS-10W

KS-20W

KS-35W

KS-55W

KS-75W

Max. Torque Output (N.m)

1000

2000

3500

5500

7500

Input Square Drive

1/2"

1/2"

1/2"

1/2"

1/2"

Output Square Drive(B)

1"

1"

1"

1 1/2"

1 1/2"

Torque Ratio

1:4

1:13.7

1:17

1:21

1:24.3

D (mm)

82

82

98

115

127

H(mm)

88

93.5

106

125.5

135

h (mm)

49

76

94

107

107

Approx. Weight (kg)

2.3

3.3

5.9

9.7

13

Remark: model KS-20W/KS-35W/KS-55W/KS-75W also can assemble with horizontal
plate reaction arm,PLEASE CONTACT US FOR DETAILS IF YOU NEED,THANK YOU!

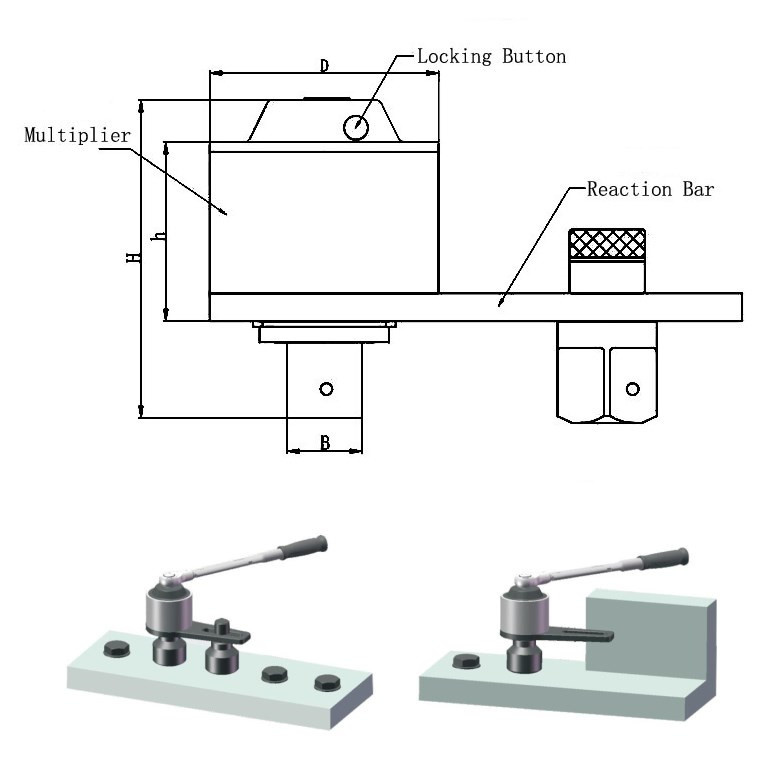

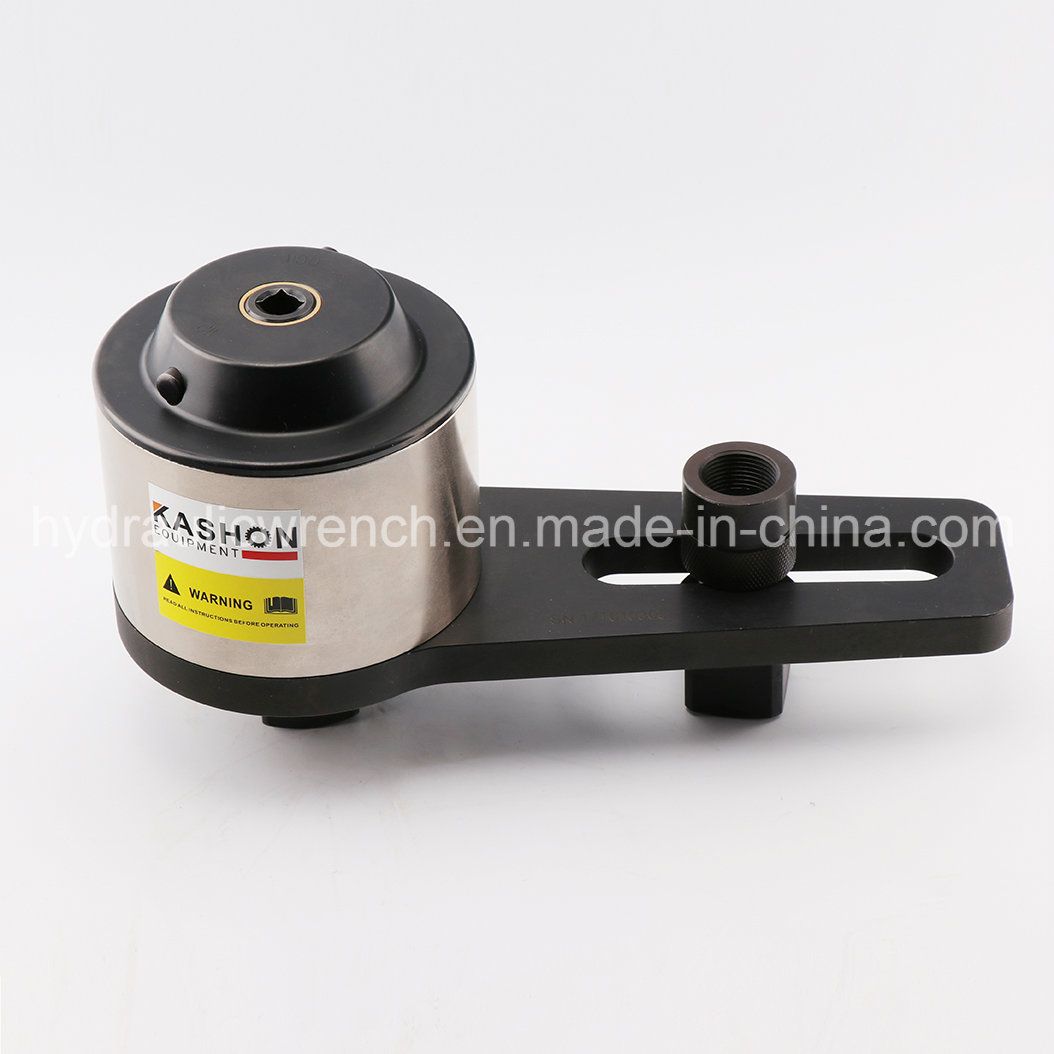

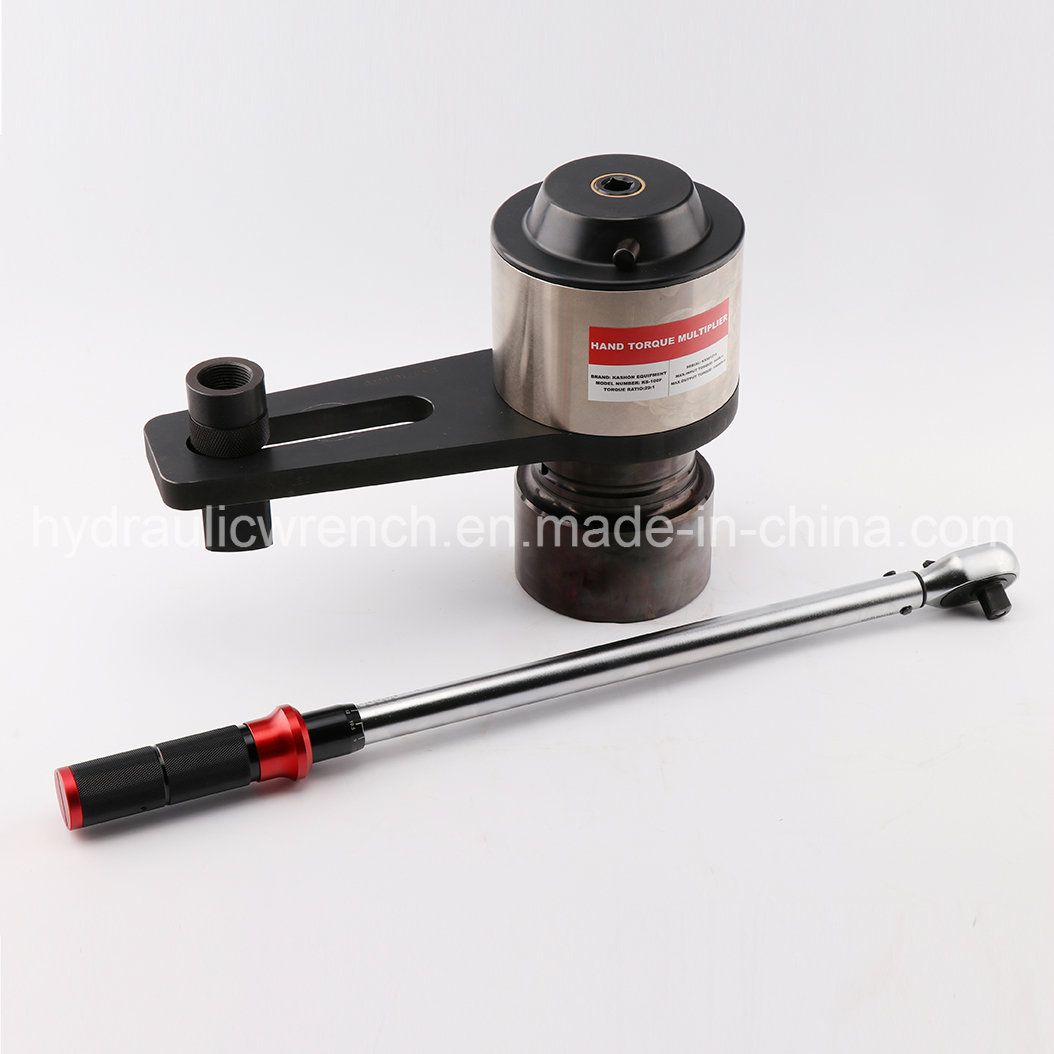

KS-F series torque multiplier(reaction arm horizontal plate type):

Model

KS-100F

KS-150F

KS-200F

Max. Torque Output (N.m)

10000

15000

20000

Input Square Drive

1/2"

3/4"

3/4"

Output Square Drive(B)

1 1/2"

2 1/2"

2 1/2"

Torque Ratio

1:29

1:61.2

1:67

D (mm)

141

156

170

H(mm)

 130

300

330

h (mm)

115

246

264

Approx. Weight (kg)

16

30

36

Remark: model KS-20W/KS-35W/KS-55W/KS-75W also can assemble with horizontal
plate reaction arm,PLEASE CONTACT US FOR DETAILS IF YOU NEED,THANK YOU!
