| Price: | US $ 1800-5800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | pneumatic torque wrench |
|---|---|
| Max. Air Pressure: | 6bar |
| OEM Service: | Can Put Customers' Brand |
| Square Drive: | 1-1 / 2" |
| Accuracy: | ±5% |
| Characteristic: | Vertical Type, Electric Torque |
| Max Working Pressure: | 700 Bar |
| Working Style: | Rotary Type |
| Type: | Pneumatic Torque Wrench |
| Usage: | Tighten and Loosen Bolts |
| Air Wrench Type: | Pneumatic Torque Wrench |
| Brand: | Kashon |

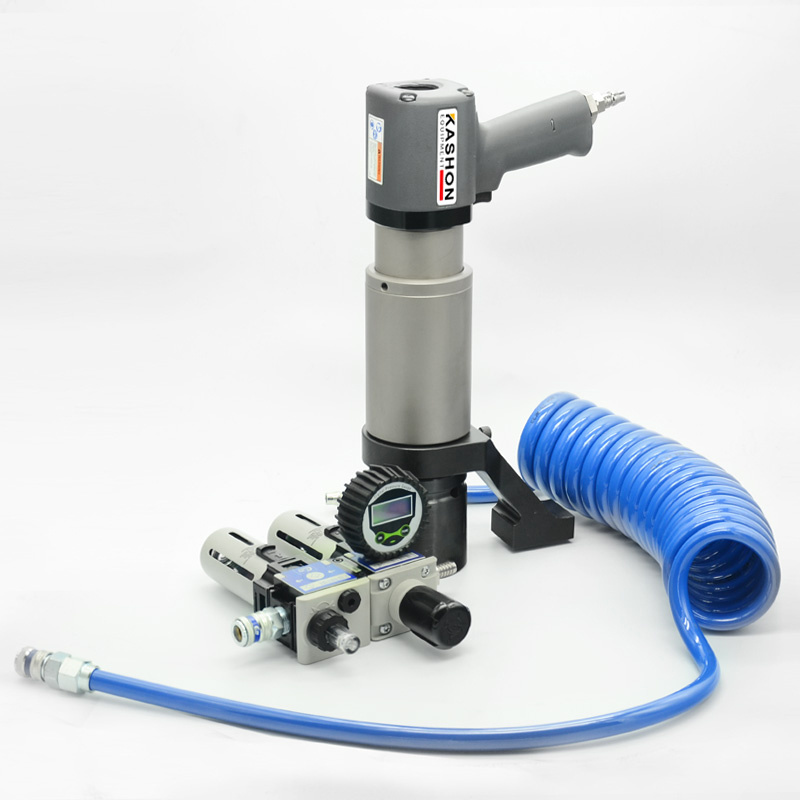

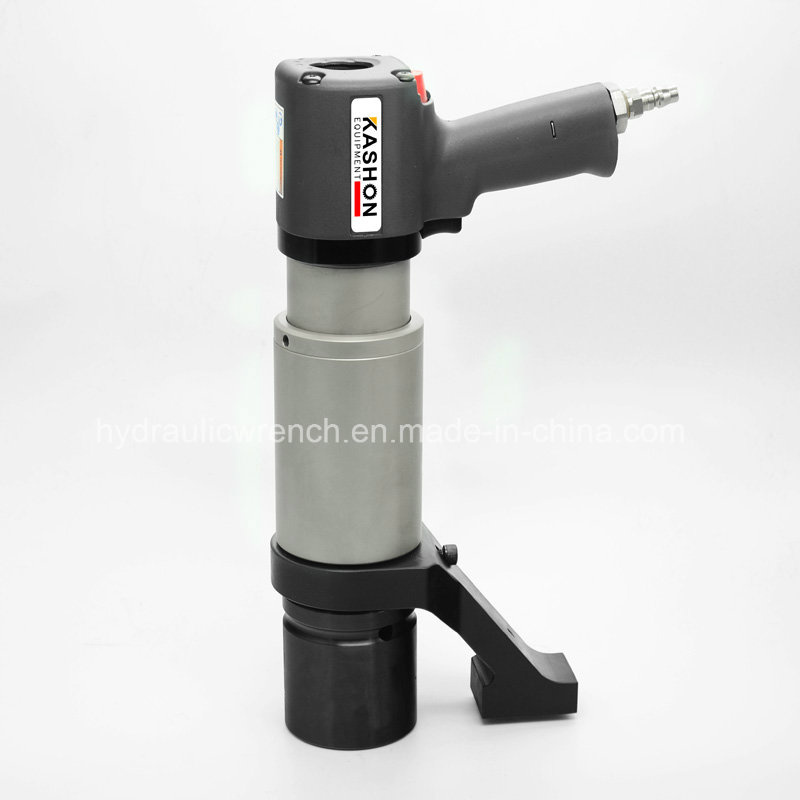

single speed vertical type pneumatic torque wrench
Features:
High output and repeat accuracy: ±5% and ±3%
Air pressure requirements: no less than 6 bar
Air flow requirement: 600L/min ~1000 L/min.
Powerful and low noise, less than 80Dba under max.power
Set and control torque by adjusting the pressure, convenient and high repeatability
With single speed gearbox, light weight,small size and high speed, easily operated
Very suitable for continuous operation in production assembly and maintenance
Reverse pressure-bias motor provide the higher power and torque when removing or loosening bolts
Free connection of power handle and drive unit, could be rotated 360°.
After-sales service: 1 year guarantee period, then lifelong maintanence.
Specifications:
| Model | Min torque(N.m) | Max.Torque (N.m) | Square Drive S (mm) | Outside diameter D(mm) | Length M (mm) | Length L (mm) | Width K (mm) | Weight (Kg) | Max Speed rpm |
| KSPW-09SS | 290 | 950 | 3/4" | 74 | 172 | 302 | 195 | 5.4 | 20.5 |
| KSPW-16SS | 480 | 1640 | 1" | 78 | 214 | 344 | 195 | 6.9 | 11.5 |
| KSPW-20SS | 490 | 2050 | 1" | 78 | 214 | 344 | 195 | 6.9 | 9.0 |
| KSPW-30SS | 810 | 3100 | 1" | 88 | 254 | 384 | 195 | 9.7 | 5.5 |
| KSPW-40SS | 1190 | 4300 | 11/2" | 88 | 254 | 384 | 195 | 9.7 | 3.8 |
| KSPW-60SS | 1100 | 6200 | 11/2" | 113 | 283 | 413 | 195 | 15.1 | 2.7 |
| KSPW-80SS | 1600 | 8000 | 11/2" | 120 | 292 | 422 | 195 | 16.8 | 1.9 |
| KSPW-100SS | 3700 | 10600 | 11/2" | 128 | 336 | 466 | 195 | 21.6 | 1.4 |
| KSPW-120SS | 3900 | 13500 | 11/2" | 128 | 336 | 466 | 195 | 21.6 | 1.1 |
Photos:
Company Information:
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Electric and pneumatic torque wrenches(800-13500Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
