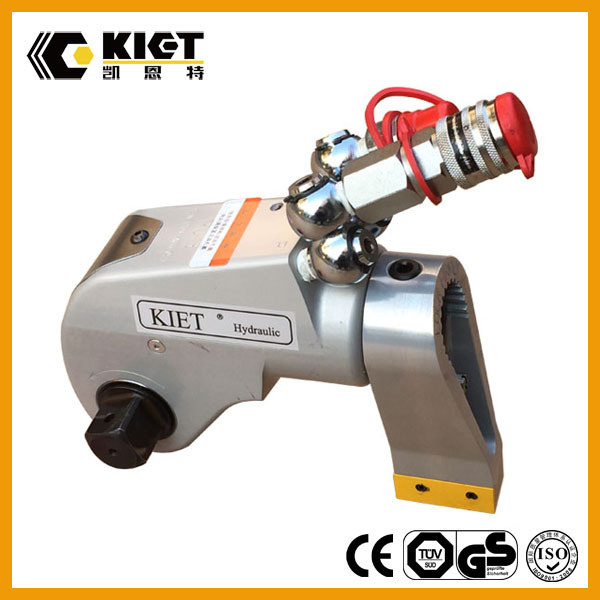

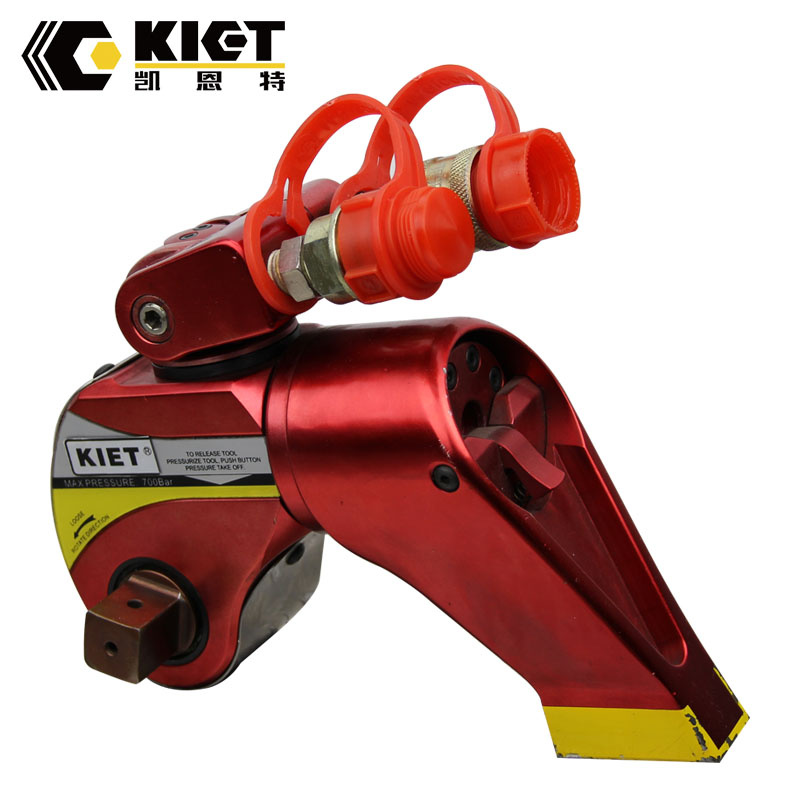

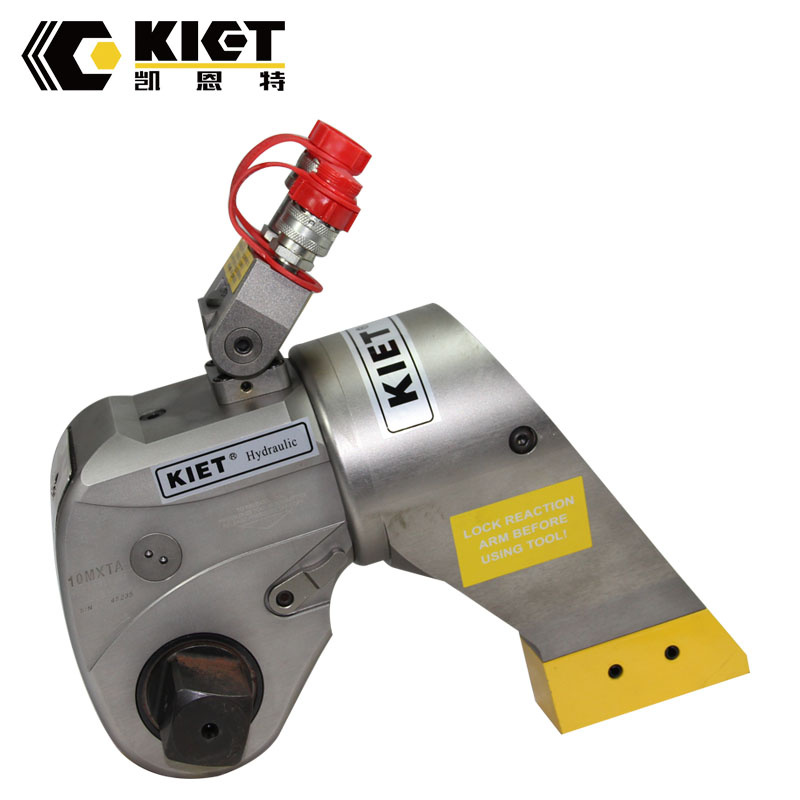

High Torsional Accuracy and Durable Square Drive Hydraulic Torque Wrench

Prod Model:	KET-MXTA
Product Name:	Square Driven Hydraulic Torque Wrench
Working Pressure:	70MPa
Weight:	2kg-43kg
Color:	Can Customize
Warranty:	1 Year
Delivery Time:	7-15days After Payment
Terms Of Payment:	T/T
Stock:	Yes
OEM:	Yes
Markrt:	Global World

Product Description

                         High Torsional Accuracy and Durable Square Drive Hydraulic Torque Wrench





 Features:

1.The 360º×180º rotatory oil connection has no limitation in used space and is convenient to be operated.
2.The torque release is used for the actuating shaft, which can fast switch the tightening and dismantling condition.
3.The hydraulic piston and power head have a smart design, light weight, compact structure and small operating space.
4.The output socket rotation angle in single operation which is large and the hydraulic piston has a quick return stroke, high efficiency...
5.The reactive force is on one straight line, which can decrease the inner torque abrasion.
6.The constant torque output provides the high precision for wrench in the whole working process.
7.Simple and easy maintenance, no need special tools for maintenance
8.All the surfaces of the torque wrenches have through the nickel plating treatment, with good corrosion resistant performance
Company Information:

Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.



Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.







We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Parameter:



Model	Torque Range (Nm)	Driving Square	H1	H2	H3	H4	L1	L2	R1	Weight
KET-1MXTA	183-1837	3/4	50	72	90	131	125	189	26	2
KET-3MXTA	451-4512	1	68	95	123	176	160	242	35	4.4
KET-5MXTA	752-7528	1-1/2	80	122	149	198	204	264	42	7.5
KET-8MXTA	1078-10780	1-1/2	90	130	167	216	222	293	47	9
KET-10MXTA	1551-15516	1-1/2	100	142	186	231	243	369	53	13
KET-20MXTA	2666-26664	2-1/2	120	183	220	269	310	386	64	23
KET-25MXTA	3472-34725	2-1/2	137	200	247	296	330	406	66	31
KET-35MXTA	4866-48666	2-1/2	147	218	276	331	353	539	75	43

Packing and Shipping:
Outer Package:wooden case;
Inner Package:aluminum alloy case;
Shipping:By sea,air,express,according to customer request.
