| Prod Model: |
SV51LB Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Hexagon Cassette Hydraulic Torque Wrench |
| Max. Pressure: |
700 Bar |
| Max. Torque: |
235-46500nm |
| Nuts On The Side: |
19-175mm |
| Working Head Length: |
195-440mm |
| Working Head Thickness: |
50-130mm |
| Plug In Thickness: |
32-85mm |
| Weight: |
1.5-29.5kg |
| Market: |
Global |
| Maintenance: |
Convenient, Dispenser with Special Tools |
| Type: |
Torque Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
European Type |
| Surface Treatment: |
Ash Nickel |
| Feature: |
Ordinary |
| Brand: |
Sov |
| Working Mode: |
Hydraulic |
| Handle Color: |
Customized |
Product Description

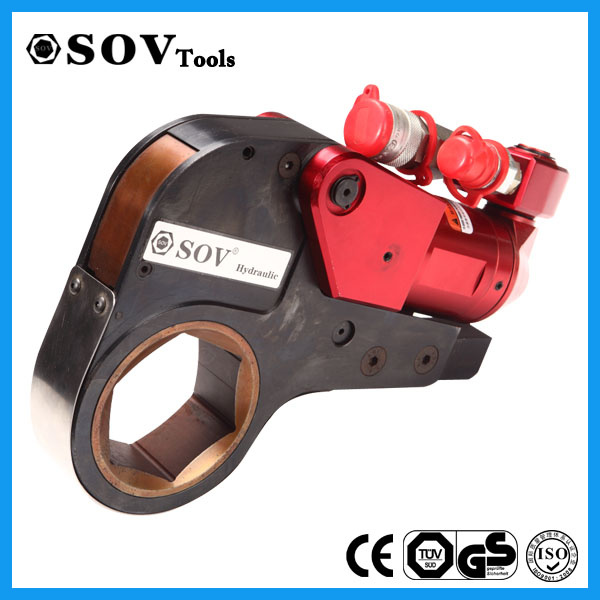

All-Ti Alloy Hexagon Cassette Hydraulic Torque Impact Wrench(SV51LB)
1. The new type anti-loose quick coupling ensures an unimpeded oil channel.
2. The 360º × 180º Rotating oil connection has no limitation in used space and is convenient to be operated.
3. Al-Ti alloy integrated machine has high strength, high tenacity and light weight.
4. The check pawl can overcome wrench changeover and improve efficiency and torque precision as well as plays a vital role.
5. The integrated lengthening design makes the force arm longer and that the reliability is overall improved
6. The hollow design makes the wrench act on the nut directly and the torque can be more precise and lighter.
7. The taper reduction sleeve can be used to expand the application range of the wrench
Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Delivery
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Thank you for your time! Any questions, pls contact me at:
>>>>>>>>>>>>>>>>>>>>>>>>>>
> Name: Gloria Rui
> Mobile: +8618918150916
> >>>>>>>>>>>>>>>>>>>>>>>>>>
Best wishes for you! !
| Model | TorqueRange(Nm) | Nut on the Side (mm) | Working Head Length(mm) | Working Head Thickness (mm) | Plug-ins Thickness (mm) | Working Pressure
(Bar) | Weigh
(Kg) |
SV51LB230
| 235-2380 | 19-55 | 195 | 50 | 32 | 700 | 1.5 |
SV51LB250
| 245-2500 | 22-60 | 195 | 50 | 32 | 1.6 |
SV51LB600
| 590-6010 | 34-65 | 245 | 65 | 42 | 4.4 |
SV51LB750
| 650-6500 | 70-80 | 245 | 65 | 42 | 4.5 |
SV51LB1100
| 1100-11500 | 41-95 | 300 | 82 | 53 | 8 |
SV51LB1300
| 1250-12800 | 100-105 | 300 | 82 | 53 | 8.5 |
SV51LB1900
| 1850-18900 | 50-117 | 360 | 96 | 64 | 11.5 |
SV51LB4200
| 4190-42000 | 110-115 | 430 | 130 | 85 | 28 |
SV51LB4700
| 4510-46500 | 160-175 | 440 | 130 | 85 | 29.5 |
