Prod Model: |
chain link fence |
Model Name: |
Chain Link Fence |
Wire Diameter: |
2.0mm~4.8mm |
Mesh Size: |
40mm~75mm |
Finish 1: |
Galvanized + PVC Coated |
Finish 2: |
Hot DIP Galvanized |
Line Post: |
60mm, 76mm |
Straining Post: |
60mm, 76mm |
Rail: |
48mm |
Thickness Of Post: |
1.5mm~5.2mm |
Extension Crank: |
Single, Double |
Material: |
PVC Coated Steel Wire |
Application: |
Construction Wire Mesh |
Hole Shape: |
Diamond |
Weave Technique: |
Plain Weave |
Surface Treatment: |
PVC Coated |
Product Description

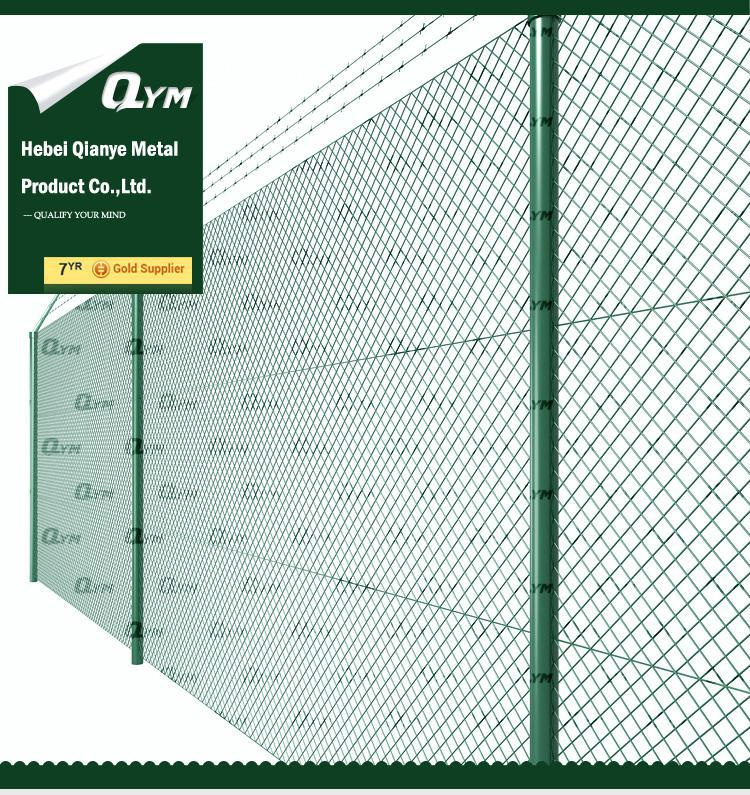

Home garden chain link fence/pvc coated hot dipped galvanized chain link fence
QYM-Chain Link fence

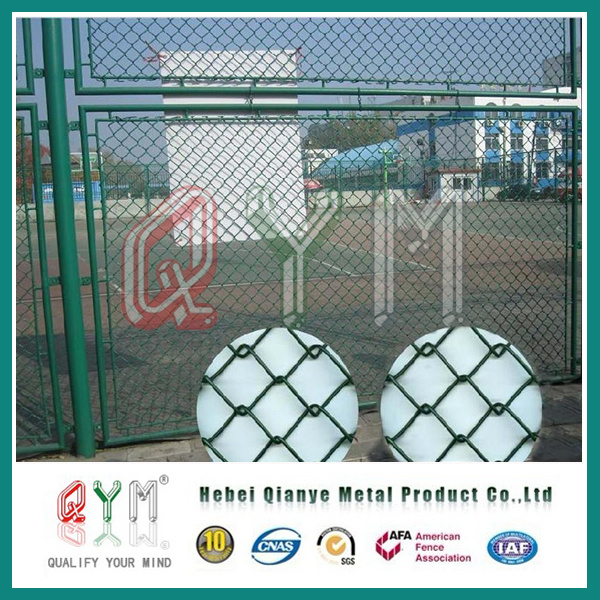

Chain link fence, also called Cyclone fences or diamond mesh fence, is made from steel wire fabrics. With variety of wire gauges and mesh size, chain link fence can be designed according to different applications. Moreover, it has the features of low cost, transparency, and easy installation. Chain link mesh rolls normally come with line wire and knuckled edges. Barbed edges are more popular and with higher security.
Mesh | Wire Thickness | Surface Treatment | Panel Width | Height |
40x40mm 50x50mm 60x60mm 65x65mm 75x75mm | 2.0mm - 4.8mm | Galvanized and PVC coated Or Hot dipped galvanized | 10m 15m 18m 20m 25m 30m | 1200mm |
1500mm |
1800mm |
2000mm |
2100mm |
2400mm |
2500mm |
3000mm |
3600mm |
Profile | Wall Thickness | Surface Treatment | Length | Rain hat |
Φ60 | 1.50mm - 5.20mm | Galvanized and Electrostatic polyester powder coated or hot dipped galvanized | On the basis of panel height | Metal |
Φ75 |
Note : Normally single branch crack or V type crack will be installed at top of the post, barbed wire and razor wire will be fixed at top of the fence to enhance secure class.
DIMENSIONS OF GALVANIZED CAGE WIRE |
Dimension | 2.00mm | 2.20mm | 2.50mm | 2.70mm | 3.00mm | 3.50mm | 4.00mm |
30×30mm | - | - | + | + | + | - | - |
40×40mm | - | - | + | + | + | + | - |
50×50mm | - | + | + | + | + | + | + |
60×60mm | - | - | + | + | + | + | + |
70×70mm | - | - | + | + | + | + | + |
75×75mm | - | - | + | + | + | + | + |
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products. Its registered capital is RMB50, 100, 000(about USD7, 400, 000), covering a land area of 30, 000 square meters.
Since its foundation in 2002, this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things. We making our own Brand QYM and has been exporting the QYM-Welded Mesh Fence, QYM-Airport Fence, QYM-High Security Fence, QYM-Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe, America, Africa, Middle East and Australia. In 2008, our export of 120 km metal fence to America made us an apparent leader in the local fence industry; In 2009, we successfully took and completed the orders from UN which perfectly proved our good reputation and our strong production capability.
Through years of production experience, we deeply understand that the qualified product is the factory basis for survival and development. In order to ensure consistency of product quality, our company introduced a fully automatic panel fence welding equipment, automatic electrostatic spraying production line, as well as advanced welding machines, cutting machines, punching machines and bending machines. We have first-class product design department responsible for new product reserch, first-class quality control department responsible for timely monitoring of product at each production process and first-class one-to-one sales staff to provide you with efficient services.
