Prod Model: |
JK114 |
Type: |
Hole Saw |
Product Description
Product Description:

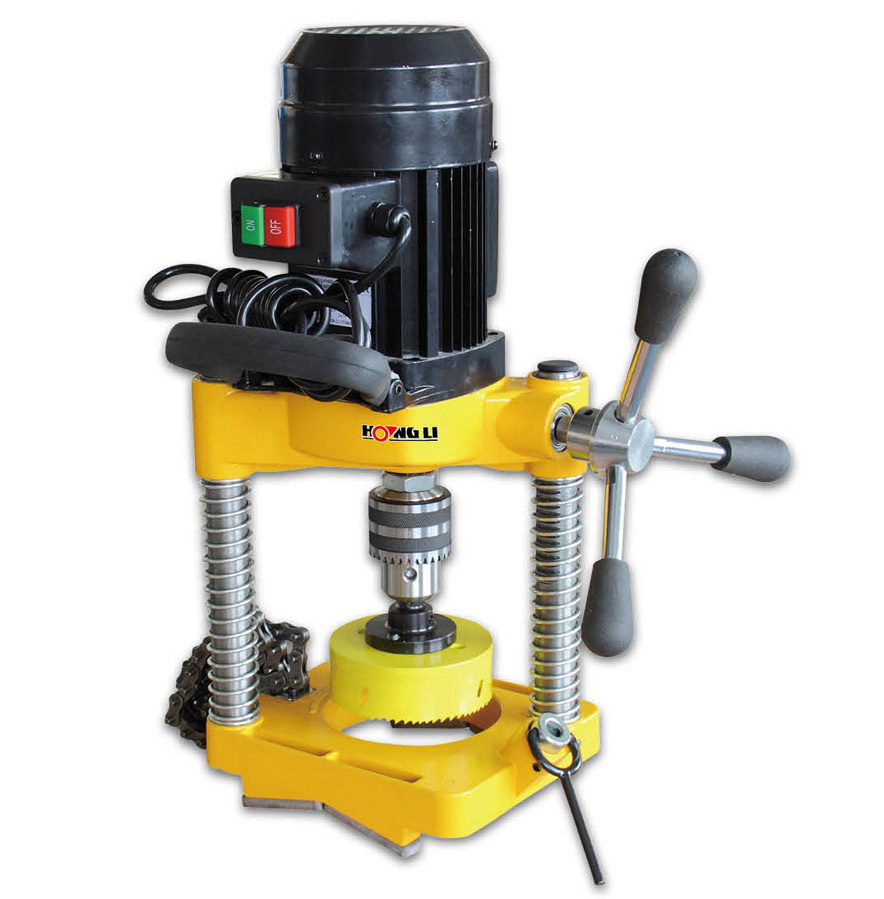

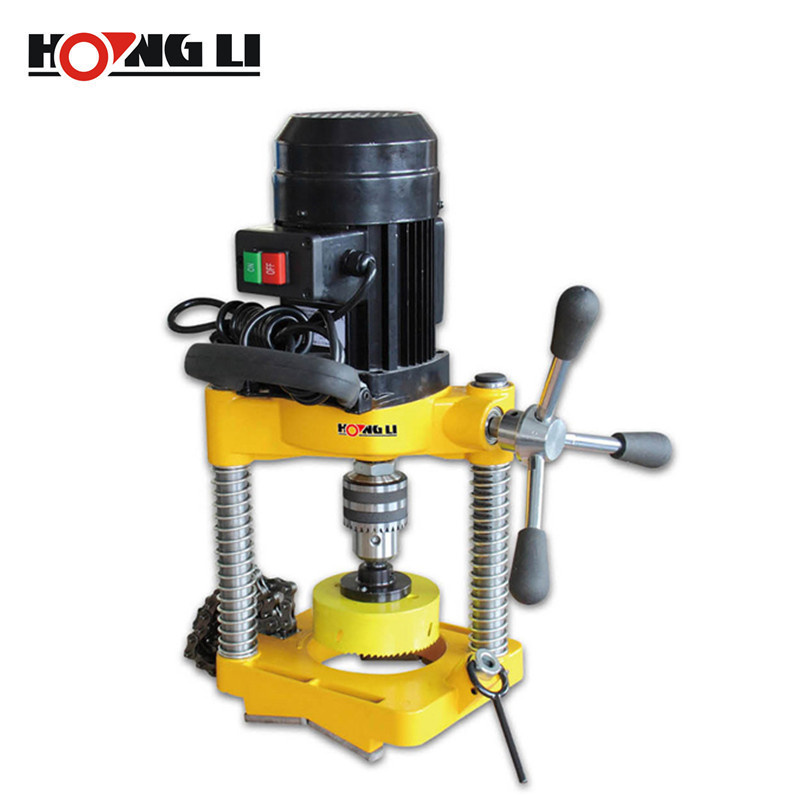

Hongli JK150 High efficient 12" Electric Pipe Hole Cutter
Feature:
1. The Hongli Model JK150 pipe hole cutter is designed to cut holes up to 152mm into steel pipe.
The multiple hole sizes allow the use of Mechanical fittings for branching unpressurized pipe lines.
2. The JK150 has a 5/8" (16mm) capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors.
3. An integral motor and gear reduction optimizes performance of large diameter hole saws.
4. The two feed handles allows the operator to use the Hole Cutting Tool from either the left or right side.
Specifications:
Pipe Hole Cutter
Cutting capacity: up to 6" (152mm)
Pipe mounting capacity: 1 1/4"-12" (30-300mm)
Drill chuck capacity: 3-16mm
Drill chuck speed: 110RPM (no load)
Motor: Universal, 1500W
Height:303mm
Length:340mm
Width:315mm
N.W.: 20KG
Using:
1. Cutting Hole on steel pipes or other steel materials
2. Working together with hole saws
HS CODE OF JK150 Hole Cutter: 8462490000
Technical Specifications |
Cutting Capacity: | up to 6" (152 mm) | Pipe Mounting Capacity: | 1 1/4"-12" (30 mm-300 mm) |
Drill Chuck Capacity: | 3-16 mm | Drill Chuck Speed: | 110 RPM (no load) |
Motor: | 1500W Universal type | Dimensions: | 513*260*248mm |
Ordering Information: Catalog.No. | Model No. | Description | N.W.:(KG) |
85002 | JK150 | Pipe hole cutter, 110V, 60Hz | 20 |
85001 | JK150 | Pipe hole cutter, 220V, 50Hz | 20 |

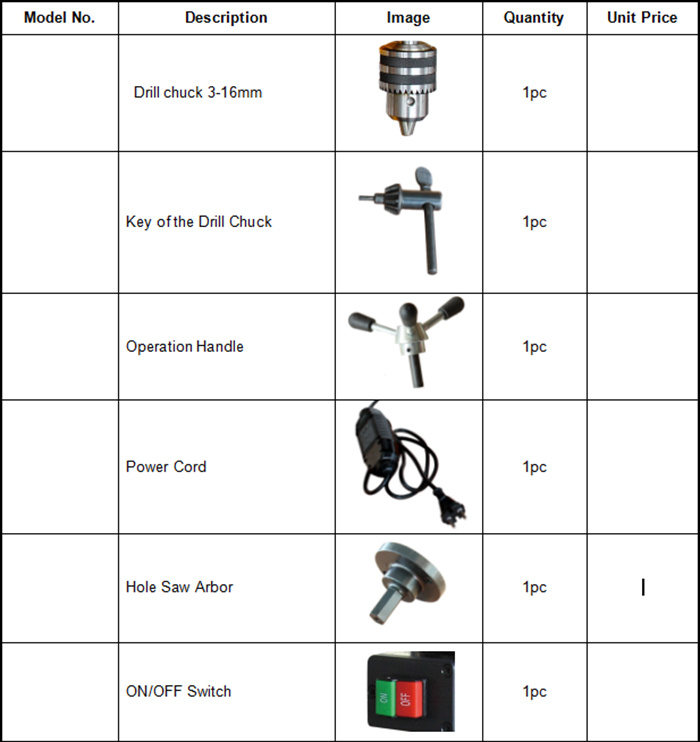

Standard Equipment of Hole Cutter:

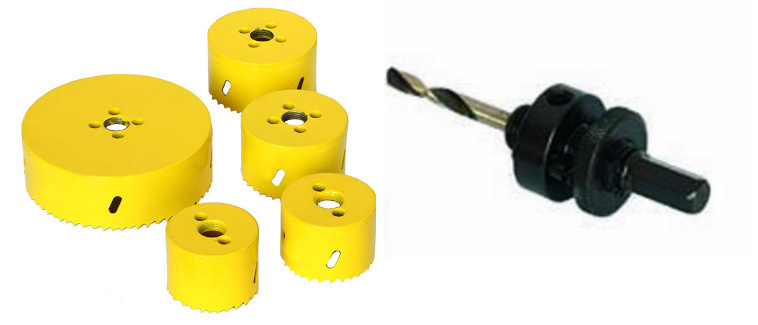

Different Hole Saw as your request :
Dia. MM | M3 | M42 | Height |
14 | 0.63 | 0.74 | 55.5mm |
15 | 0.68 | 0.79 | 55.5mm |
16 | 0.73 | 0.83 | 55.5mm |
17 | 0.77 | 0.89 | 55.5mm |
18 | 0.82 | 0.95 | 55.5mm |
19 | 0.87 | 0.99 | 53.5mm |
20 | 0.90 | 1.05 | 49.5mm |
21 | 0.95 | 1.09 | 49.5mm |
22 | 1.00 | 1.15 | 49.5mm |
23 | 1.05 | 1.20 | 49.5mm |
24 | 1.09 | 1.25 | 49.5mm |
25 | 1.14 | 1.31 | 49.5mm |
26 | 1.18 | 1.36 | 49.5mm |
27 | 1.22 | 1.41 | 49.5mm |
29 | 1.32 | 1.51 | 49.5mm |
30 | 1.37 | 1.57 | 49.5mm |
32 | 1.45 | 1.67 | 49.5mm |
33 | 1.50 | 1.72 | 49.5mm |
35 | 1.59 | 1.83 | 49.5mm |
37 | 1.53 | 1.76 | 43.5mm |
38 | 1.58 | 1.81 | 43.5mm |
40 | 1.66 | 1.90 | 43.5mm |
41 | 1.70 | 1.95 | 43.5mm |
43 | 1.78 | 2.05 | 43.5mm |
44 | 1.83 | 2.10 | 43.5mm |
46 | 1.90 | 2.20 | 43.5mm |
48 | 1.98 | 2.29 | 43.5mm |
51 | 2.11 | 2.43 | 43.5mm |
52 | 2.15 | 2.48 | 43.5mm |
54 | 2.23 | 2.58 | 43.5mm |
57 | 2.36 | 2.72 | 43.5mm |
59 | 2.45 | 2.81 | 43.5mm |
60 | 2.48 | 2.86 | 43.5mm |
64 | 2.61 | 3.00 | 43.5mm |
65 | 2.65 | 3.05 | 43.5mm |
67 | 2.73 | 3.15 | 43.5mm |
68 | 2.78 | 3.19 | 43.5mm |
70 | 2.86 | 3.29 | 43.5mm |
73 | 2.98 | 3.43 | 43.5mm |
76 | 3.10 | 3.56 | 43.5mm |
79 | 3.23 | 3.70 | 43.5mm |
83 | 3.38 | 3.89 | 43.5mm |
84 | 3.43 | | 43.5mm |
85 | 3.48 | | 43.5mm |
86 | 3.51 | 4.04 | 43.5mm |
89 | 3.63 | 4.18 | 43.5mm |
92 | 3.75 | 4.32 | 43.5mm |
93 | 3.80 | | 43.5mm |
94 | 3.84 | | 43.5mm |
95 | 3.88 | 4.46 | 43.5mm |
98 | 4.00 | 4.59 | 43.5mm |
99 | 4.05 | | 43.5mm |
100 | 4.09 | | 43.5mm |
101 | 4.13 | | 43.5mm |
102 | 4.17 | 4.78 | 43.5mm |
103 | 4.24 | | 43.5mm |
104 | 4.27 | | 43.5mm |
105 | 4.29 | 4.93 | 43.5mm |
108 | 4.40 | 5.07 | 43.5mm |
111 | 4.54 | 5.21 | 43.5mm |
112 | 4.58 | | 43.5mm |
113 | 4.62 | | 43.5mm |
114 | 4.65 | 5.35 | 43.5mm |
115 | 4.70 | | 43.5mm |
116 | 4.74 | | 43.5mm |
117 | 4.78 | | 43.5mm |
118 | 4.82 | | 43.5mm |
119 | 4.87 | | 43.5mm |
120 | 4.91 | 5.64 | 43.5mm |
121 | 4.94 | 5.67 | 43.5mm |
127 | 5.19 | 5.96 | 43.5mm |
133 | 5.43 | 6.24 | 43.5mm |
140 | 5.71 | 6.58 | 43.5mm |
146 | 5.96 | 6.85 | 43.5mm |
152 | 6.21 | 7.13 | 43.5mm |
160 | 6.53 | 7.52 | 43.5mm |
165 | 6.73 | 7.74 | 43.5mm |
168 | 6.86 | 7.88 | 43.5mm |
177 | 7.23 | 7.96 | 43.5mm |
200 | 8.17 | 9.39 | 43.5mm |
210 | 8.57 | 9.85 | 43.5mm |
Packing & Delivery: Model No. | G.W | N.W. | Packing |
JK150 Hole cutter | 22kgs | 20kgs | 25*22*40 CM |
