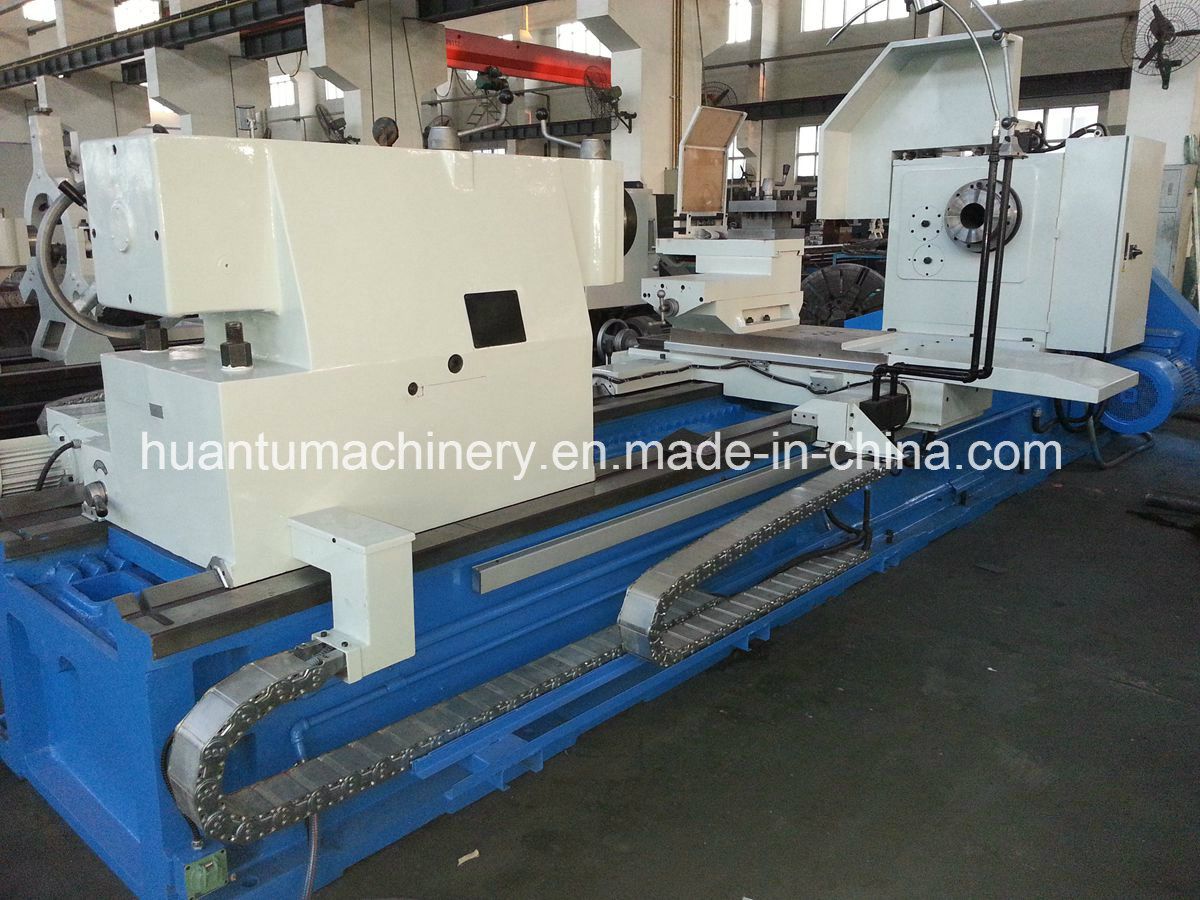

Horizontal Lathe Machine (Precision Lathe Machine LH6250D)
| Price: |
US $ 5000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Lathe Machine |
| Max Swing Over Bed: |
360/500/600/660/800mm |
| Max Swing Over Cross Slide: |
190mm |
| Max Swing Over Gap: |
520mm |
| Workpiece Cutting Length: |
750\1000\1500\2000\3000mm |
| Bed Width: |
360/400mm |
| Spindle Hole: |
52/65/80mm |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
SHANGHAI HUANTU TECHNICAL INDUSTRY CO., LTDNO. 1187 AKESU Road, Jiading District, SHANGHAI, CHINAWeb: huantumachinery.en.alibaba.com www.huantutech.comContact: Cindy He Tel: +86 21 3377 9007 Fax: +86 21 33510290Mobile:+86 15021180416 Horizontal Lathe Machine (Precision Lathe Machine LH6250D)
Main Specification| Model | CC61236 | CC61240 | CC61250 |
CAPACITY | Max. swing dia. Over bed | 360mm | 400mm | 500 |
| Max.swing over cross slide | 190mm | 230mm | 330 |
| Max.swing over gap | 520mm | 560mm | 660 |
| Workpiece cutting length | 750\1000\1500\2000\3000mm |
| Bed Width | 360mm |
HEADSTOCK | Spindle hole | 52/65/80mm |
| Spindle nose | ISO-C6 |
| Spindle taper | MT6 |
| Spindle speed(Number) | 42-1600rpm/44-1400rpm(12steps) |
FEEDS | Metric threads range | 0.25-14mm(19 kinds) |
| Inch threads range | 2-40inch (49 kinds) |
| Moudle threads range | 0.5-3.5mm(17 kinds) |
CARRIAGE | cross slide travel | 120mm |
| Max.travel of cross slide | 180mm |
| Max.size of toolshank | 20*20mm2 |
TAILSTOCK | Taper of tailstock sleeve | MT4/MT5 |
| Diameter of tailstock sleeve | 65/75mm |
| Travel of tailstock sleeve | 140/160mm |
| Main motor power | 4kw/5.5kw |
PACKING
L*W*H | Center Distance(750mm) | 225*115*1600cm |
| Center Distance(1000mm) | 245*115*1600cm |
| Center Distance(1500mm) | 295*115*1600cm |
| Center Distance(2000mm) | 345*115*1600cm |
N.W/G.W | Center Distance(750mm) | 1350/2000kg |
| Center Distance(1000mm) | 1450/2100kg |
| Center Distance(1500mm) | 1600/2250kg |
| Center Distance(2000mm) | 1750/2400kg |
Standard Accessories1.3-Jaw universal Chuck2.4-Jaw individual Chuck3. Face plate4. Dirving plate5. four way turret tool post6. Standard steady7. Follower rest8. Full set of wrench9. longitudinal stop or four longitudinal stop10. Wrenches, oil gun, operation manual Optional Accessories1. Knurling tool 2. Live center3. Taper gauge4. Electromagnetic brake5. Quick change tool6. with CE7. DRO Digital display After Sales Service1.Our warranty is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.About us
Shanghai HUANTU Technical Industry Co., Ltd
1. Shanghai HUANTU Technical Industry Co., Ltd located in Shanghai, the largest seaport city and economic center in China.
2. Shanghai HUANTU is government support enterprise started in 1988 and has more than 28 years industry manufacture experience. In 2006, we introduced German and Japan Technology and become the leader of the metal plate processing machinery manufacturer in China.
3. We occupy more than 65,000 square meters warehouse, workshop and dedicated to the research and development, production and sales of medium and high-rank plate processing machines including CNC hydraulic bending, shearing, notching, rolling, punching, drilling, milling, ironworker and lathe machine, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
4. National industry is the soul of a nation's economy. Machinery industry is the parent of all other industries. As a rising star in China's national machinery industry, Shanghai HUANTU Technical Industry Co., Ltd is aiming at the world, marching towards the goal of "building up a world-known brand and laying the basic for its development of hundred years".
Shanghai HUANTU Technical Industry Co., Ltd
When the new century has come on the horizon, Shanghai Huantu Technical Industry Co., Ltd has become the leader of the plate processing machinery inside the country. We occupy more than 20000 square meters warehouse and dedicated to the research and development, production and sales of medium and high-rank plate processing machine including hydraulic shearing, bending, rolling machine and Ironworker, which are widely used in airspace, shipbuilding, automobiles, military, electrical appliances, metal works, coinage and various other fields.
We have been exported to dozens of countries and regions in Europe, America and Southeast Asia. Our company has been taking the lead for its aggregate annual sales revenues, and has been listed among" the national key new & hi-tech enterprises". In the process of prospecting its modern corporate system, We have attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovation, equipment upgrade and its sophisticated strategy on product lines, quality and rank.
National industry is the soul of a nation‘ S economy; Machinery industry is the parent of all other industries. As a rising star in China‘ S national machinery industry, Shanghai Huantu Technical Industry Co., Ltd is aiming at the world, marching towards the goal of" building up a word-known brand name and laying the basic for its development of hundred years
