Prod Model: |

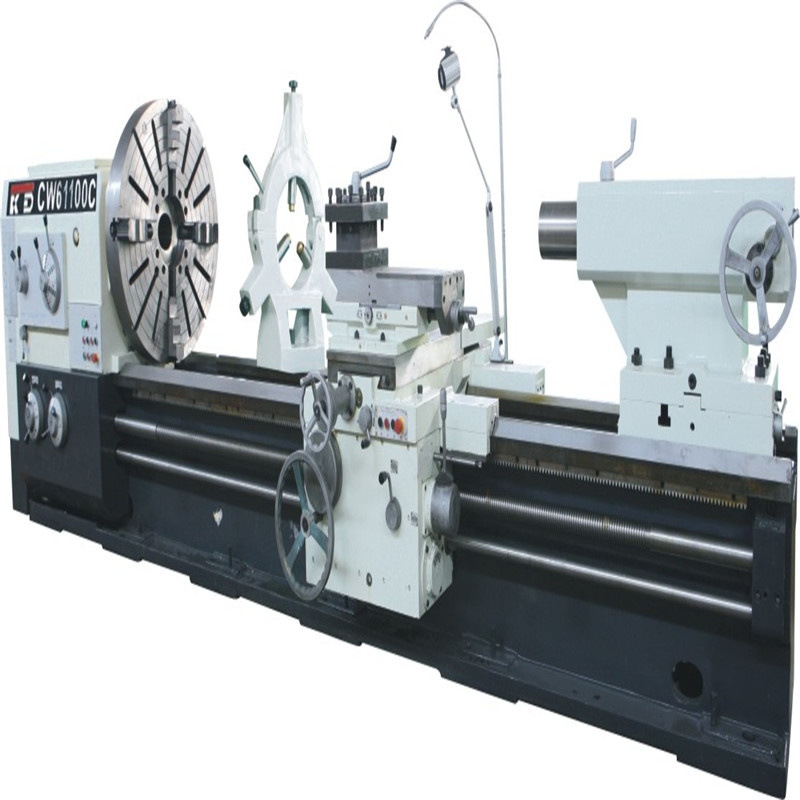

CW-61125C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Spindle Bore: |
130mm |
Max Swing Over Bed: |
1250mm |
Tool Post: |
Electrical 4 Way |
Bed Width: |
755mm |
Spindle Speed: |
2.5-250r/Min |
Motor: |
22kw |
Spindel Nose: |
A2-15 |
Type: |
Horizontal Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Setting Mode: |
Floor-type |
Precision: |
Normal Precision |
Processing Accessory: |
Chuck Center |
Tool Holder: |
4 Way Tool Post |
Product Description
Zhejiang Kaida Machine Tool Co., Ltd was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and around 1000 staff. Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.
We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005. Our various products can meet different customers' needs: Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe and manual lathe.
PRODUCT FEATURES:
The surface of the bedways is supersonic frequency handened.
The spindle system is high in rigitidy and accuracy.
Rapid feed structure is available on Apron.
Clutch in headstock makes the lathe start.
Standard accessories:
ø 1000 4jaw chuck
Centers M. T. No 6
Wrenches
Morse reduction Metric 80/M. T. NO. 6
Morse reduction Metric 140/M. T. NO. 6
Operation manual
Extra accessories
ø 1250 4jaw chuck
Follow rest
Steady rest
ITEMS | CW61100C/ CW62100C | CW61125C /
CW62125C | CW61140C/ CW62140C |
Max. swing over bed | Ø 1000 mm | Ø 1250 mm | Ø 1400v |
Max. swing over carriage | Ø 600 mm | Ø 865 mm | Ø 1015 mm |
*Over gap | Ø 1380 mm | Ø 1750 mm | Ø 1900 mm |
Width of bed | 755mm |
*Effective length of gap | 590mm |
Max. length of work piece(two centers) | 1.5/2/3/4/5/6/8/10/12 m |
Max. turning length | 1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85 |
Max. Weight of work piece(between centers) | 5000Kg |
Spindle nose | A2-15 |
Spindle bore | Ø 130 mm |
Cone hole diameter and taper of spindle hole | Metric Φ 140 1: 20 |
Number of speeds | 24(Normal)12(Reverse) |
Spindle speed scope | 2.5~250r/min |
Pitch of longitudinal ball screw/diameter | 12mm/ Ø 70mm |
Number of cross feeds | 97 |
Feed range of tool post for per rev. of spindle(Longitudinal) | 0.1~12mm/r |
Feed range of tool post for per rev. of spindle(Cross) | 0.05~6mm/r |
Feed range of tool post for per rev. of spindle(middle tool post) | 0.025~3mm/r |
Rapid feed for Axis Z | 3740mm/ minute |
Rapid feed for Axis X | 1870mm/ minute |
Rapid feed for Axis middle tool post | 935mm/ minute |
Thread cutting for Metric pitch threads(range/no. ) | 1~120mm/45 |
Thread cutting for Whit-worth pitch threads(range/no. ) | 30~1/4 TPI/42 |
Thread cutting for Module threads(range/no. ) | 0.5~60mm/46 |
Thread cutting for D. P. threads(range/no. ) | 1/2~60 DP/48 |
Vertical distance from spindle center to installing basis | 41 mm | 51 mm |
Size of tool shank | 40× 40mm | 50× 50mm |
Max. travel of cross slide | 720mm |
Swing angle of tool post | ± 90° |
Max. travel of middle tool post | 400 mm |
Max. travel of top slide | 200 mm |
Tailstock taper of bore | Metric 80 |
Tailstock sleeve travel | 300mm |
Tailstock sleeve dia. | Ø 160mm |
Power of main motor | 22 KW |
Rapid feed motor power | 1.5 KW |
Power of cooling pump | 0.25 KW |
3m Overall dimensions(L× W× H) | 6000× 1860× 1700 mm | 6000× 1860× 1825 mm | 6000× 1860× 1900 mm |
Net weight(3m) | 11200 Kg | 12000 Kg | 12500 Kg |
Note: The items with " *" are only for 62 series. For each additional machine length of 1m, there will be additional net weight of 1100kg |
