| Prod Model: |
W-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gabion Wire Gauge: |
2.0mm-4.0mm |
| Lacing Wire: |
2.2mm |
| Gewedge Wire: |
3.0-4.5mm |
| Mesh: |
as Request |
| Hole Shape: |
Hexagonal |
| Delivery Date: |
10 Days After The Payment |
| Material: |
Galvanized Iron Wire |
| Application: |
Cages |
| Weave Method: |
Twist |
| Weave Technique: |
Plain Weave |
| Surface Treatment: |
PVC Coated,Galvanized |
Product Description

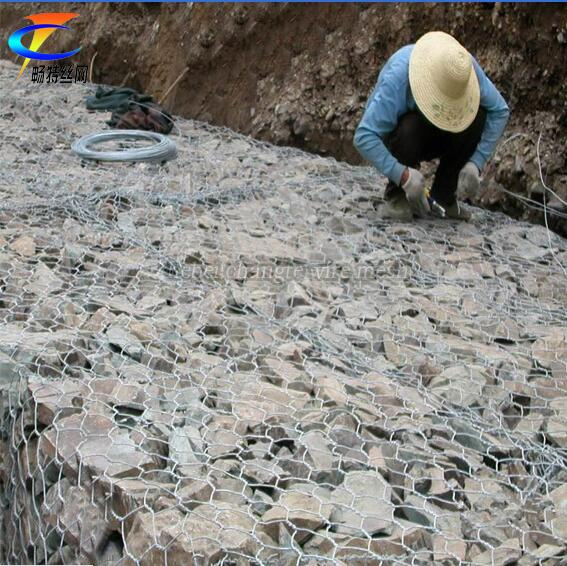

Gabion Mesh Box, made of heavy hexagonal wire mesh, Galvanized or PVC coated. They shall be supplied in various lengths, widths and heights. In order to strengthen the baskets, all the edges of the structure shall be selvedged with wire of greater diameter.
All wires used in hexagonal gabion mesh box and lacing wire have the tensile strength of 350-500N/mm according to EN10223-3, 2 BS1052/80 and ASTM A641-97.
Gabion Mesh Box USAGE:
Control and guide of water or flood
Preventing of rock breaking
Rock fall protection
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.
Port project
Keep off dust wall
Roadway protection.
Gabion /Gabion box/Gabion Mattress
Material
1)Hot DIP galvanized wire
Heavy zinc-coated wire(EN10244-2 240g/)
2)PVC coated wire(PVC thickness: 0.38-0.5mm)
3)Galfan wire
Avaliable: Welded mesh gabion, woven gabion box, hexagonal mesh gabion
Opening(mesh): 60*60mm, 60*80mm, 80*80mm, 80*100mm, 100*100mm,
100*120mm, 120*120mm ect
Box size: 2*1*1mm, 3*1*1mm, 4*1*1mm, 2*1*0.5mm, 3*1*0.5mm
The most popular spcification: 80*100mm, wire dia 2.7mm selwage wire3.4mm
| Gabion Size(m) | Mesh Model |
| | 8x10 | 6x8 |
| Length | Width | Height | Gal. or PVC coated | Gal. or PVC coated |
| | Mesh wire diameter | Gal. weight | Mesh wire diameter | Gal. weight |
| 2m | 1m | 1m | 2.7mm | >245g/m 2 | 2.0mm | >215g/m2 |
| 3m | 1m | 1m | Selvedge wire diameter | Gal. weight | Selvedge wire diameter | Gal. weight |
| 4m | 1m | 1m | 3.4mm | >265g/m2 | 2.7mm | >245g/m2 |
| 6m | 1m | 1m | Lacing wire2.7mm | Lacing wire2.0mm |
Opening
(mm) |
Wire Diameter
(mm) |
Wire Diameter(PVC Coated)
Inner/outside(mm) | Strands |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
Hebei Changte Wire Mesh Manufacturing Co., Ltd is located in Anping, the famous Wire Mesh Land of China. Established in 2000, today Changte has developed to be a major company who equipped with more than 200 sets wire mesh production machines, and engaged in various of wire mesh products'sale and production.
Our factory has advanced equipments, skilled workers, complete quality management system, strong R&D capability. With choice materials, we are mainly manufacture Crimped wire mesh, Woven wire mesh, Filter screen mesh, Self cleaning screen mesh, Square wire mesh, Gabion wire mesh, Wire mesh fence, Razor barbed wire etc.
As our company is growing day by day, the list of clients is also increasing and today; We have marked a niche in not only domestic but also in international market. With our internationally certified products, we have revolutionized the global market place.
Our clients are spread across the corners of world, recommending our products for their durability, designing accuracy, dimensional tolerance and adaptability to work under adverse conditions.
For export, utmost attention is paid towards packaging of the products in order to protect them from damage, scratches and dents during the transit.
Today, we are exporting our products to some of the major international markets that are as follows:
UAE
Bahrain
Kuwait
USA
Australia
New Zealand
Jordan
Dubai
South
Zambia
Ivory Coast
Japan
Russia
South Africa
Germany
We adopt to the win-win cooperation model and Set up customer-oriented concept.
If there is anything we can do for you, please send your inquiry. We will try our best to help you. Welcome to visit our factory.
