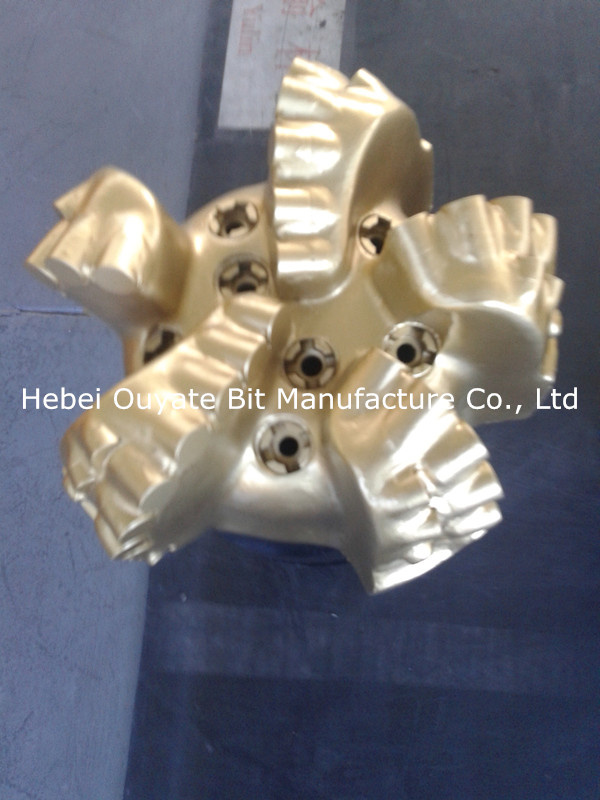

Hot Sale 8 1/2"PDC Bit for Oil Well Drilling Price

Prod Model:	323 423 233
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Stone Cutting, Drilling, Optical Glass Cutting
Manufacturing Arts:	Cutting
Kind:	Diamond Drill
Saw Blade External Diameter:	16mm
Size:	8 1/2
Blade:	6
Nozzle:	3

Product Description

Specifications
PDC bit
1.70HRC soldering surface
2. Good impact-abrasion resistance
3. Optimized Hydraulics
4. Lowest Vibration design


Applications:
PDC drill bit is mainly used to drill Oil well, gas well, water well, etc.
We design and produce specifie PDC bit with good performance for each soft, medium and hard formation.
Clay stone/lignite/siltstone/sands: We design 3-5 blades with low density cutter placement, large slot. Low cost, high speed.
Mudstone: We have experience to design suitalbe blades shape and cutter direction to get high drill speed and stalbe drill.
How to find your demands? You can: Select the products directly in our company website: www.wolfni.cnYou can also: Proposed product specifications and area (or your professional requirements), we will recommend quantity of blade, blade shape, cutter size and cutter quantity, tec. Size& parameter for choosing directlySizePAI whorlPAI whorlRotation speedWeight on bitDiameter(in)specificationrate (gpm)(rpm)(lbs)tolerance(mm)6"3 1/2 API Reg200-35080-3802000-15000+0, -0.388 1/2"4 1/2 API Reg300-50060-3503000-11000+0, -0.519 1/2"6 5/8 API Reg400-60060-3504000-20000+0, -0.7612 1/4"6 5/8 API Reg550-85060-3504000-14000+0, -0.7617 1/2"7 1/2 API Reg550-85060-2405000-24000+0, -1.14OthersDepending on your requirements, we can design and produce all above specification(All sizes 3 1/2"~26"). Backgound of Chengdu WolfniLocated in Chengdu, our company specializes in the new project development, manufacture, marketing and after-sales service of Steel Body PDC Dill Bits. Chengdu Wolfni Technology Co., Ltd. Has an excellent design team and a highly efficient management team. We have strict internal management systems and highly talented technicians who have rich working experience in oil drilling. In addition, we have set up several departments, including R & D, Production, Sales and Service. We always insist on the spirit of "People oriented, united and pragmatic, advanced technology, sincere pursuit, perfect production and service for the world". Thus, our corporation has won trust and compliments from customers. We are looking forward to having good cooperation with partners from at home and abroad to create a glorious future.
Thank you for your time to view our website. I am the organizer of PDC Bit project with 6years experience in designing, manufacturing and field operation. It is great honor to introduce our PDC bit to you and have change to cooperate hand in hand.
Hospital Wolfni friend are waiting for your factory site view. The best wish for you! ! !

Gravel/limestone/shale/clay stone/tuff: Round crown and reasonable cutter direction. Drill smoothly in good speed.


Introduction of PDC drill bit:
Steel body with hardening tungsten carbide surface(WC), make the drill bit both high strength and very strong abrasion resistance.
Dedicated PDC cutter can improve the life and shield the risk of complex formation drill not passed.
Raw materials: Alloy steel with a special treatment, achieve better mechanical properties (Rp0, 2: 1200MPa; Rm: 1100 MPa)
Low torque spiral design and software designed tooth reduce the cutting edge wear & increase life
(no repair life up to 8300M/pc).
The unique parabolic crown-shaped design and tooth balance design keeps smooth drilling under high speed.
(Speeds up to 30~40m/h. )
The scientific drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.
Authoritative API standard and ISO certification, quality and service will be better ensured.

Formation	Lithology	IADC
Very soft	Clay	M121
	Mudstone	M222
	Marl	M222
soft	Marl	M223
	Rock salt	M232
	Gypsum	M232
	Sandstone	M232
Medium  soft	Shale	M322
	Sandstone	M322
	Cretaceous  rocks	M323
Medium	Shale	M323
	Mudstone	M323
	Sandstone	M323
	Limestone	M323
Medium hard	Shale	M422
	Mudstone	M333
	Sandstone	M422
	Limestone	M423
	Anhydrites	M432
hard	Dolomite	M432
	Siltstone	M433
	Limestone	M433
	Dolomite	M433
	Quartzite
Very hard	Quartzite
	Basalt
	Flint
