| Prod Model: |
YSDZ0501 |
| Torque (Quick Chuck): |
>7500g/C |
| Torque (Hollow Drill): |
> 11200g/C |
| Torque (Reamer): |
>33000g/C |
| Speed (Acetabulum Burnishing Drill): |
>130rpm |
| Weight: |
3100g |
| Unit Rise In Temperature: |
< 25° |
| Charger Input Voltage: |
AC220V/50Hz |
| Frequency: |
> 15000rpm |
| Product Name: |
Bone Drill |
| Application: |
Clinic, Orthopedic Oscillating Saw |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Type: |
Drill/ Saw |
| Group: |
All |
Product Description
Hot sale multi-function model YSDZ0501 drill orthopedic oscillating saw
Model: YSDZ0501
Technical Data:
Charger input voltage AC220V/50HZ.
Unit rise in temperature < 25°.
Frequency > 15000rpm.
Speed (drill) >600rpm.
Speed (acetabulum burnishing drill) >130rpm.
Torque (quick chuck) >7500G/C.
Torque (reamer) >33000G/C.
Torque (HOLLOW DRILL) > 11200G/C.
Weight: 3100g.
Compositions:

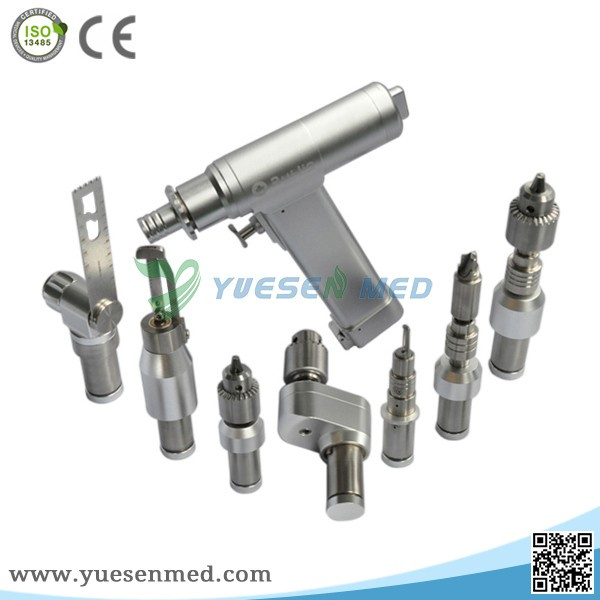

| No. | Items | Quantity |
| 1 | Main unit | 1 |
| 2 | Sternum saw | 1 |
| 3 | Swing saw | 1 |
| 4 | Bone drill | 1 |
| 5 | Canulate drill | 1 |
| 6 | Craniotomy drill (auto-pause) | 1 |
| 7 | Mill | 1 |
| 8 | Acetabulum burnishing drill | 1 |
| 9 | Charger | 1 |

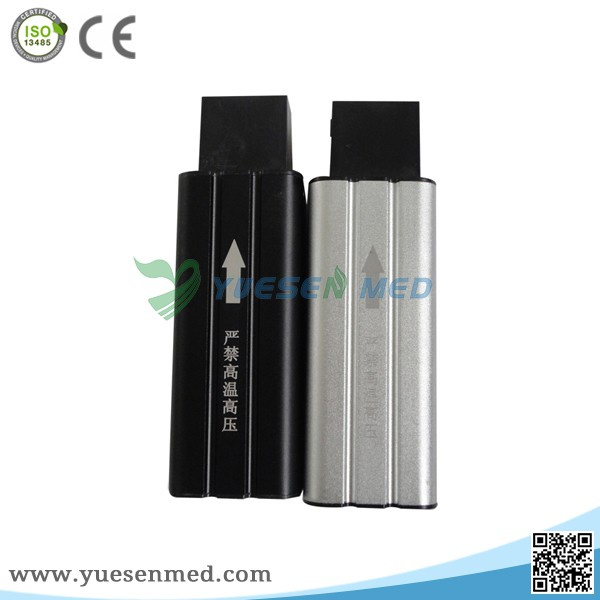

| 10 | Battery | 2 |

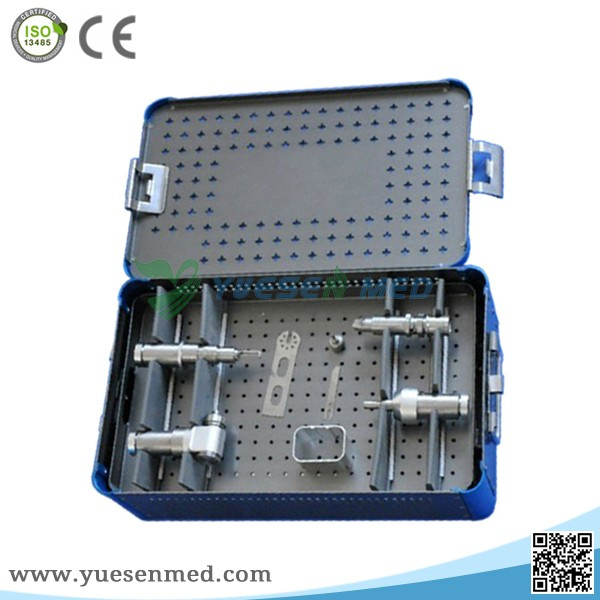

| 11 | Aluminum carrying box | 1 |
Technical features:
1. Main frame is made of stainless steel, durable, long working hours, the accessories can be selected freely for different operation.
2. Quick chuck: Imported chuck ensures outstanding performance during operation.
3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue around sternum.
4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.
5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free device allows easy, fast and safe loading and unloading blades.
6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.
7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary pin or kirschner pin fixing operation easily and conveniently.
8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
9. Highest quality
10. Perfect ergonomic design.
11. Applicable to different kinds of surgery options.
