| Prod Model: |
ECX3-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Disassemble DTH Hammer |
| Application: |
Quarry, Mining and Civil Construction |
| Hammer Range: |
3.5''-8'' |
| Condition: |
New |
| Type: |
Manual and Electric |
| Weight: |
350-800 Kgs |
Product Description

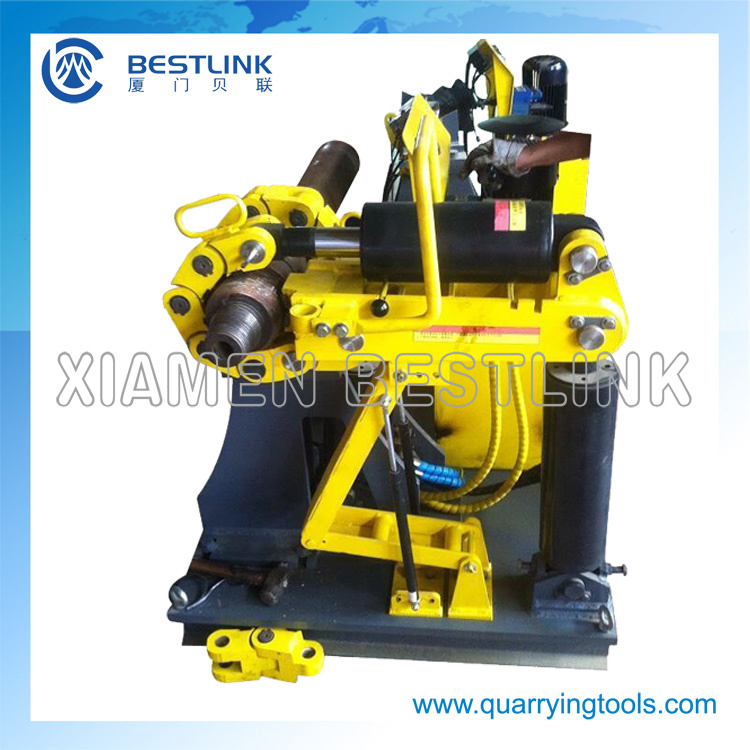

Hot Selling DTH Hammer Disassemble and Assemble Bench
Products Feature
DTH Hammer Loosening Tools: The threaded connections of the driver chuck and top sub may become very tightly tensioned during drilling.It is convenient to break the hammer threads on the rig, but if the threads cannot be loosened or tend to get stuck, a DTH Hammer Assembling equipment is the solution.
This handy but powerful DTH Hammer Loosening Tools / DTH Breakout Bench
can easily be placed in a workshop or container and it breaks DTH hammers between 3.5''-8".
There are two kinds of bench to disassemble the dth hammers.
Manual:
The operation method as below:
1). Put hammer on the bench.
2). Adjust the position of the hammer and wrench; use wrench to block the top sub side of hammer; let wrench and jack in the same face.
3). Fix K-shaped base with nut.
4). Fix wrench with nuts.
5). Shake handle of jack slowly till top sub away from hammer.
6). After top sub dismantled, grease the jack, release nuts, discharge the K-shaped base and turn around the hammer.
7). Adjust the position of hammer and wrench; use wrench to block the drive chuck of hammer; let wrench and jack in the same face.
8). Fix hammer
9). Fix K-shaped base and the wrench with nut.
10). Shake handle of jack slowly till drive chuck away from hammer.
Electric
The standard motor request power source with 3phase, 380V,50Hz. we can adjust the motor as customers request.
Specifications
1. for disassembling the dth hammer
2. easy operation
3. low cost
4. for 3" to 8" hammers
Main Technical Data
| Operating principie | by hydraulic jack
(manual) | by electric motor |
| Model | CX-5 | CX-8 | ECX3-8 |
| Operate hammers | 3-5" | 6-8" | 3.5-8" |
| Length | 920mm | 1100mm | 1060mm |
| Width | 510mm | 620mm | 930mm |
| Height | 875mm | 875mm | 1050mm |
| Weight | 350kg | 350kg | 800kg |
