Hot Selling Gasoline Sawing Machine/Hw Model Rail Track Cutter/Track Maintenance

Hot Selling Gasoline Sawing Machine/Hw Model Rail Track Cutter/Track Maintenance
Price: US $ 400-700/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Product Name: Hot Selling Gasoline Sawing Machine/Hw Model Rail
Petrol Engine Power: 6.5HP=4.8kw (Honda)
Grinding Wheel Size: 400X32X4
Profile Precision 1: Verticality Tolerance <=0.5mm
Profile Precision 2: Horizontal Tolerance <=0.35mm
Profile Precision 3: Cutting Profile Is Smooth and Clean No Bluing
Machine Weight: <=43kg
Wooden Box Packing: 860mmx580mmx580mm
Brand: Hengwang
Packages: Wooden Case

Product Description

hot selling gasoline sawing machine/HW model rail track cutter/track maintenance
hot selling gasoline sawing machine/HW model rail track cutter/track maintenance Product introduction:
The Internal Combustion Rail Cutting Machine also named as rail cutter, track cutter ,rail saw ,is used to cut the rails in pieces .It is very popular in the railway market. The gasoline engine is Honda, and is very convenient to be used without electric.
Our company is a leading manufacturer specialized in various railway maintenance equipment in China. Products including rail cutter, rail grinder, rail drilling machine ,track lifting and lining machine, railway ballast tamper ,railway bolt wrench, rail bender, rail gap adjuster, cutting disc, grinding stone ,and etc.

hot selling gasoline sawing machine/HW model rail track cutter/track maintenance Main Parameters:

Petrol engine power 6.5HP=4.8kw (Honda)
Cutting Linear velocity

Vmax=80m/s
Grinding wheel size

400x32x4

Profile precision

Verticality tolerance <=0.5mm

Horizontal tolerance <=0.35mm

Cutting profile is smooth and clean no bluing

Machine weight

<=43KG
Wooden box packing

860mmx580mmx580mm

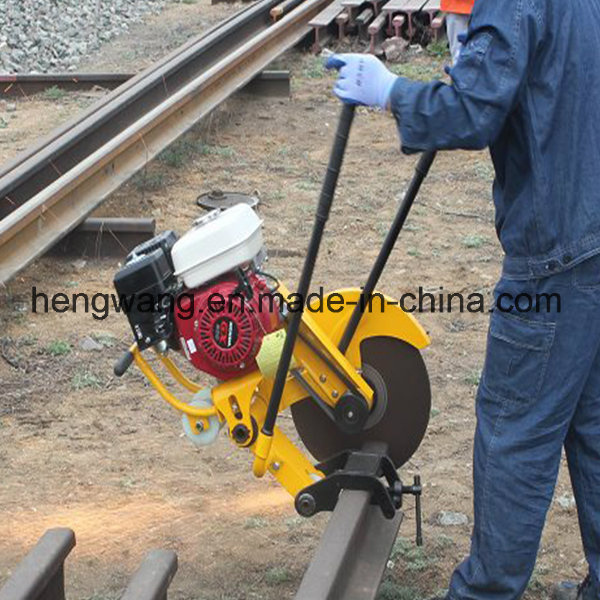

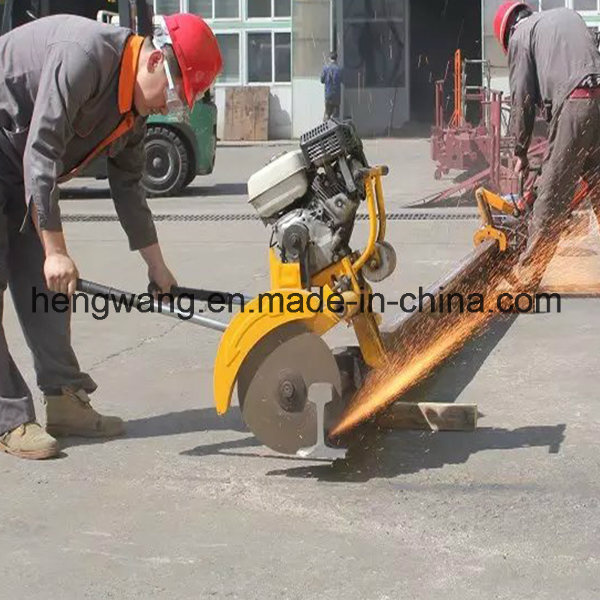

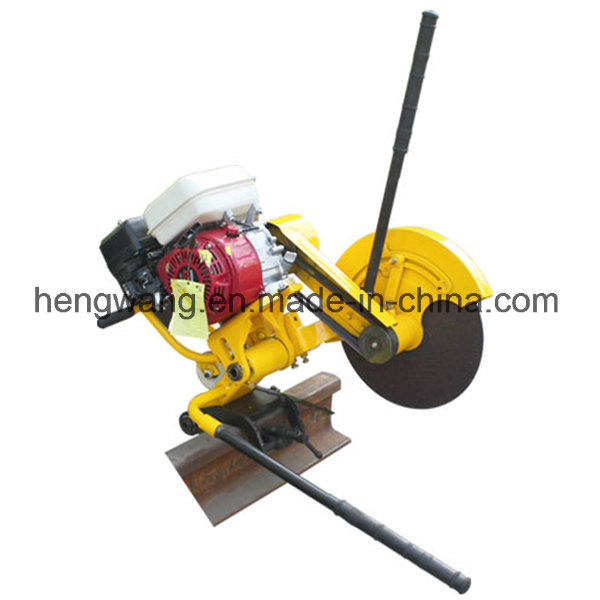

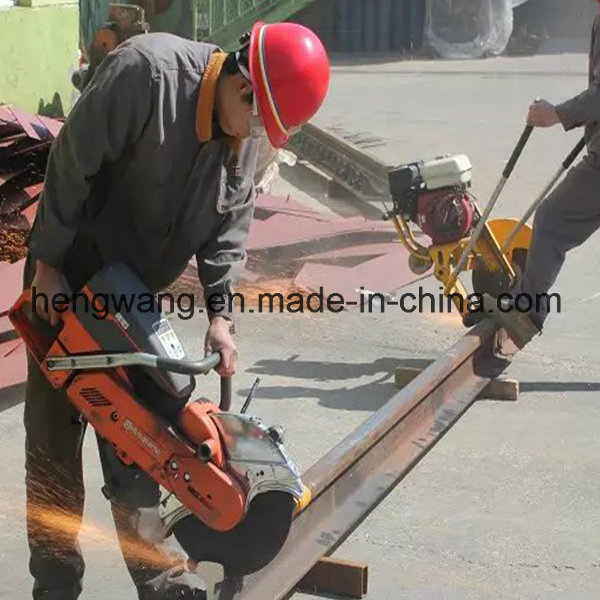

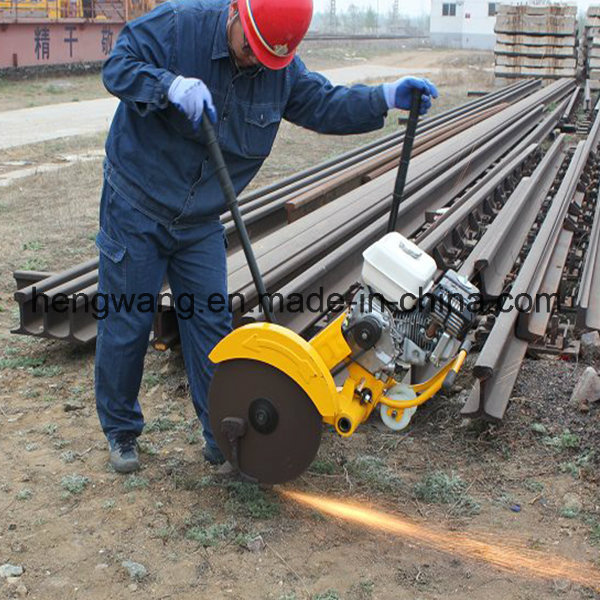

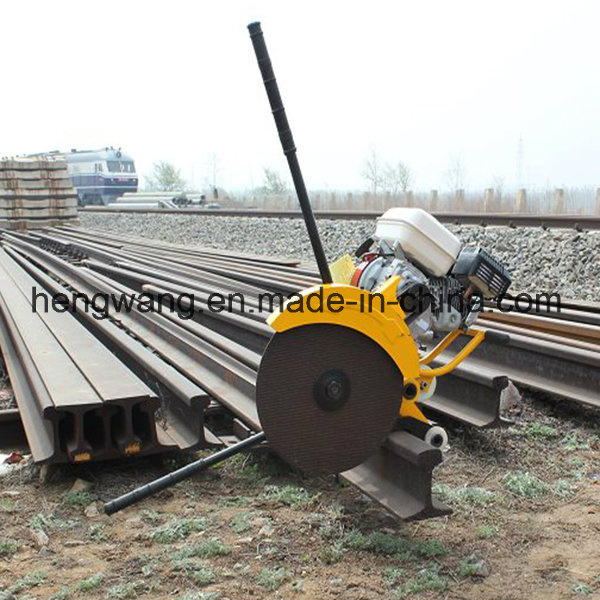

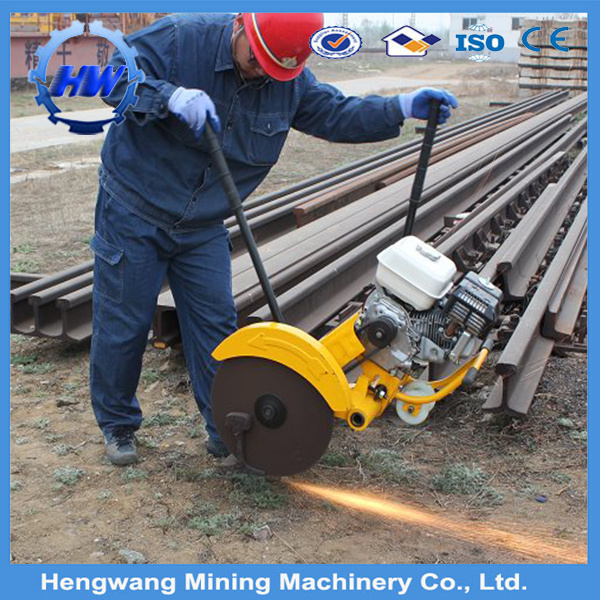

vertical type rail cutter petrol drive steel rail cutting machine Pictures:







hot selling gasoline sawing machine/HW model rail track cutter/track maintenance Basic Structure:
Swing arm shafts and Suites for rolling friction to minimize wear and tear and prolong life
The swing arm ,the cutting arm and the belt pulley are made of cast aluminium alloy, the quality is light and the strength is high
The internal combustion engine seat is a split cast aluminum alloy to reduce weight
Deformation mechanism is additionally arranged auxiliary wheel;to ensure smooth implementation of the ground
The clamping mechanism has the function of preventing derailment. The rail cutting machine is arranged on the rail , and the center of gravity of the rail cutting machine is coincident with the central axis of the rail loose clamping screw. Rail cutting machine does not tilt.

hot selling gasoline sawing machine/HW model rail track cutter/track maintenance Maintenance and Repair:
1,Grease the swing arm and the long shaft, and inject lubricating oil into the lubricator regularly
2,After cutting the rail machine for 500 hours, the main shaft bearing should be removed and replaced with grease
3,The swing arm and the cutting arm used the threaded pin connection, the factory has a good tune, when worn after loosening,locking nut, screw thread pin , adjust the mechanical axial clearance ,which can mutually rotate and axially move so far, then ,nut
4, V belt tensioning adjustment with two spiral rotation angle six
5,No throwing or throwing during use or transportation
6,For a long time, should be placed in ventilated , dry and non corrosive gas warehouse, the internal combustion engine should be released fuel
7,The thin grinding wheel should be dampproof, anti-collision and anti pressure.
8,The recommended ambient temperature of the gasoline engine is between -15~40 degrees
