Internal Combustion Rail Cutting Machine Factory Directly Rail Cutter
| Price: |
US $ 400-700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
HW |
| Product Name: |
Internal Combustion Rail Cutting Machine Factory D |
| Petrol Engine Power: |
6.5HP=4.8kw (Honda) |
| Grinding Wheel Size: |
400X32X4 |
| Profile Precision 1: |
Verticality Tolerance <=0.5mm |
| Profile Precision 2: |
Horizontal Tolerance <=0.35mm |
| Profile Precision 3: |
Cutting Profile Is Smooth and Clean No Bluing |
| Machine Weight: |
<=43kg |
| Wooden Box Packing: |
860mmx580mmx580mm |
| Brand: |
Hengwang |
| Packages: |
Wooden Case |
Product Description
Internal Combustion Rail Cutting Machine Product introduction: The Internal Combustion Rail Cutting Machine also named as rail cutter, track cutter ,rail saw ,is used to cut the rails in pieces .It is very popular in the railway market. The gasoline engine is Honda, and is very convenient to be used without electric.Our company is a leading manufacturer specialized in various railway maintenance equipment in China. Products including rail cutter, rail grinder, rail drilling machine ,track lifting and lining machine, railway ballast tamper ,railway bolt wrench, rail bender, rail gap adjuster, cutting disc, grinding stone ,and etc. Main Parameters: | Petrol engine power | 6.5HP=4.8kw (Honda) |
Cutting Linear velocity
| Vmax=80m/s |
Grinding wheel size
| 400x32x4
|
Profile precision
| Verticality tolerance <=0.5mm
|
Horizontal tolerance <=0.35mm
|
Cutting profile is smooth and clean no bluing
|
Machine weight
| <=43KG |
Wooden box packing
| 860mmx580mmx580mm |

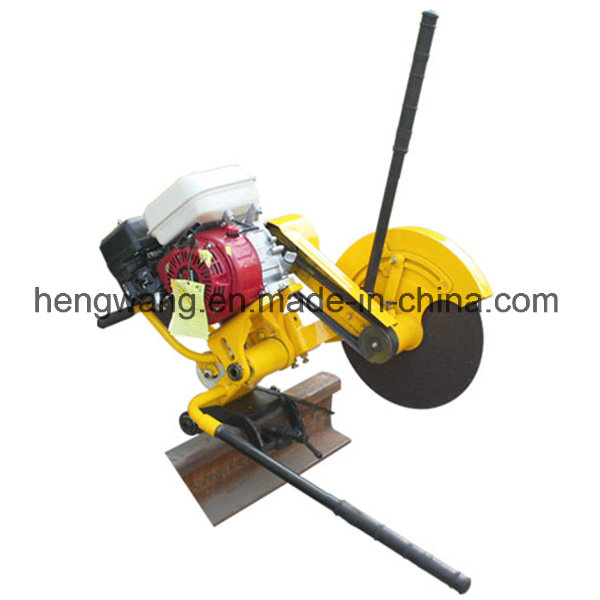

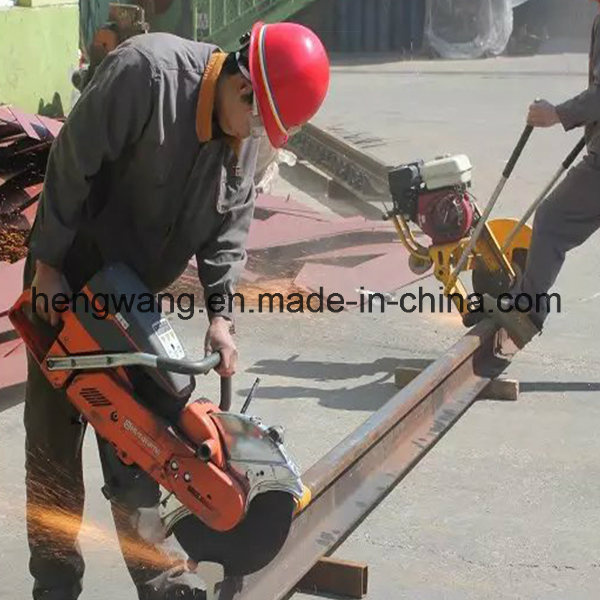

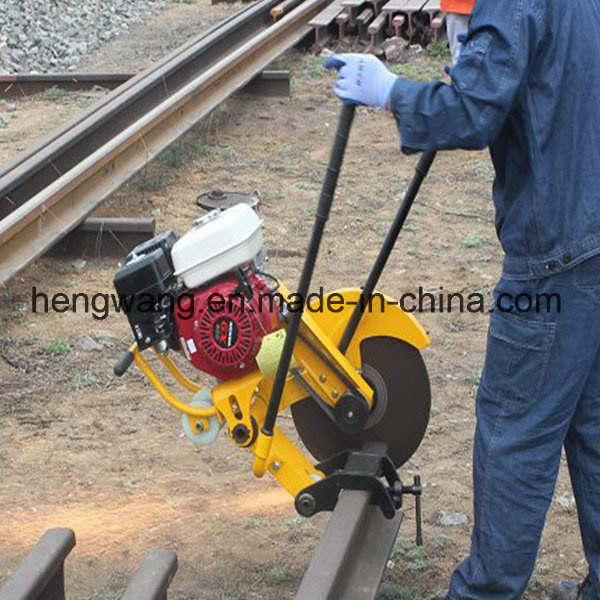

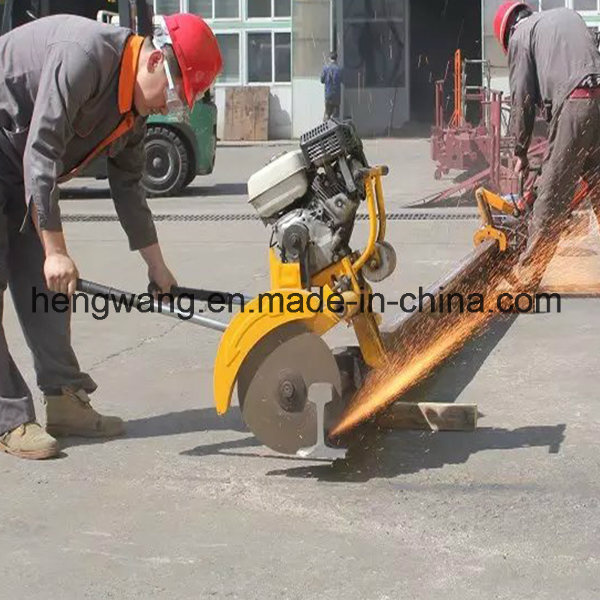

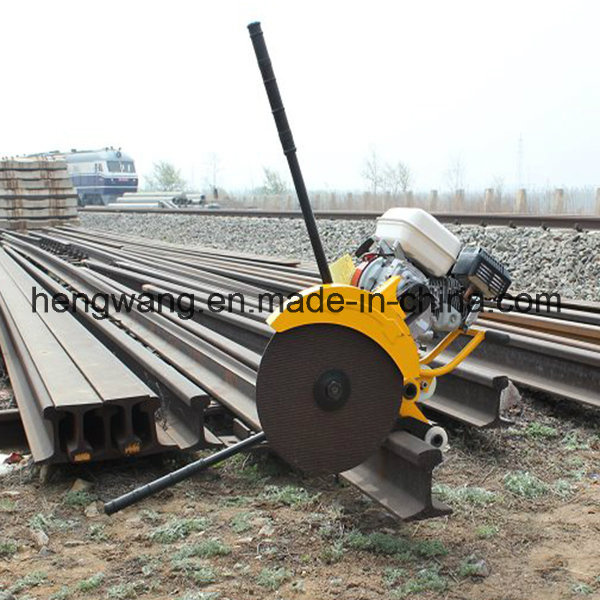

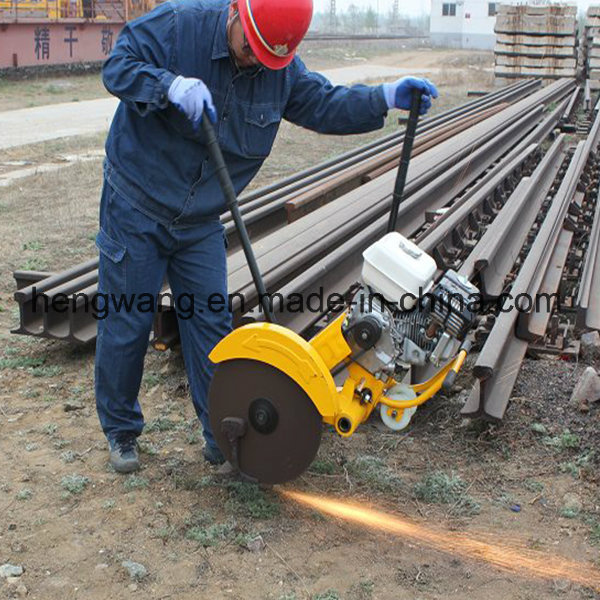

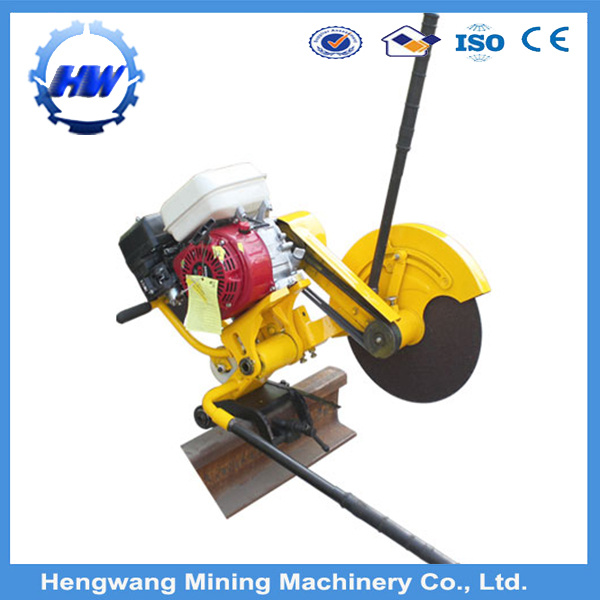

Internal Combustion Rail Cutting Machine Pictures:
Internal Combustion Rail Cutting Machine Basic Structure:Swing arm shafts and Suites for rolling friction to minimize wear and tear and prolong lifeThe swing arm ,the cutting arm and the belt pulley are made of cast aluminium alloy, the quality is light and the strength is high The internal combustion engine seat is a split cast aluminum alloy to reduce weight Deformation mechanism is additionally arranged auxiliary wheel;to ensure smooth implementation of the ground The clamping mechanism has the function of preventing derailment. The rail cutting machine is arranged on the rail , and the center of gravity of the rail cutting machine is coincident with the central axis of the rail loose clamping screw. Rail cutting machine does not tilt. Internal Combustion Rail Cutting Machine Maintenance and Repair:1,Grease the swing arm and the long shaft, and inject lubricating oil into the lubricator regularly2,After cutting the rail machine for 500 hours, the main shaft bearing should be removed and replaced with grease3,The swing arm and the cutting arm used the threaded pin connection, the factory has a good tune, when worn after loosening,locking nut, screw thread pin , adjust the mechanical axial clearance ,which can mutually rotate and axially move so far, then ,nut4, V belt tensioning adjustment with two spiral rotation angle six5,No throwing or throwing during use or transportation 6,For a long time, should be placed in ventilated , dry and non corrosive gas warehouse, the internal combustion engine should be released fuel 7,The thin grinding wheel should be dampproof, anti-collision and anti pressure.8,The recommended ambient temperature of the gasoline engine is between -15~40 degreesContacts:
