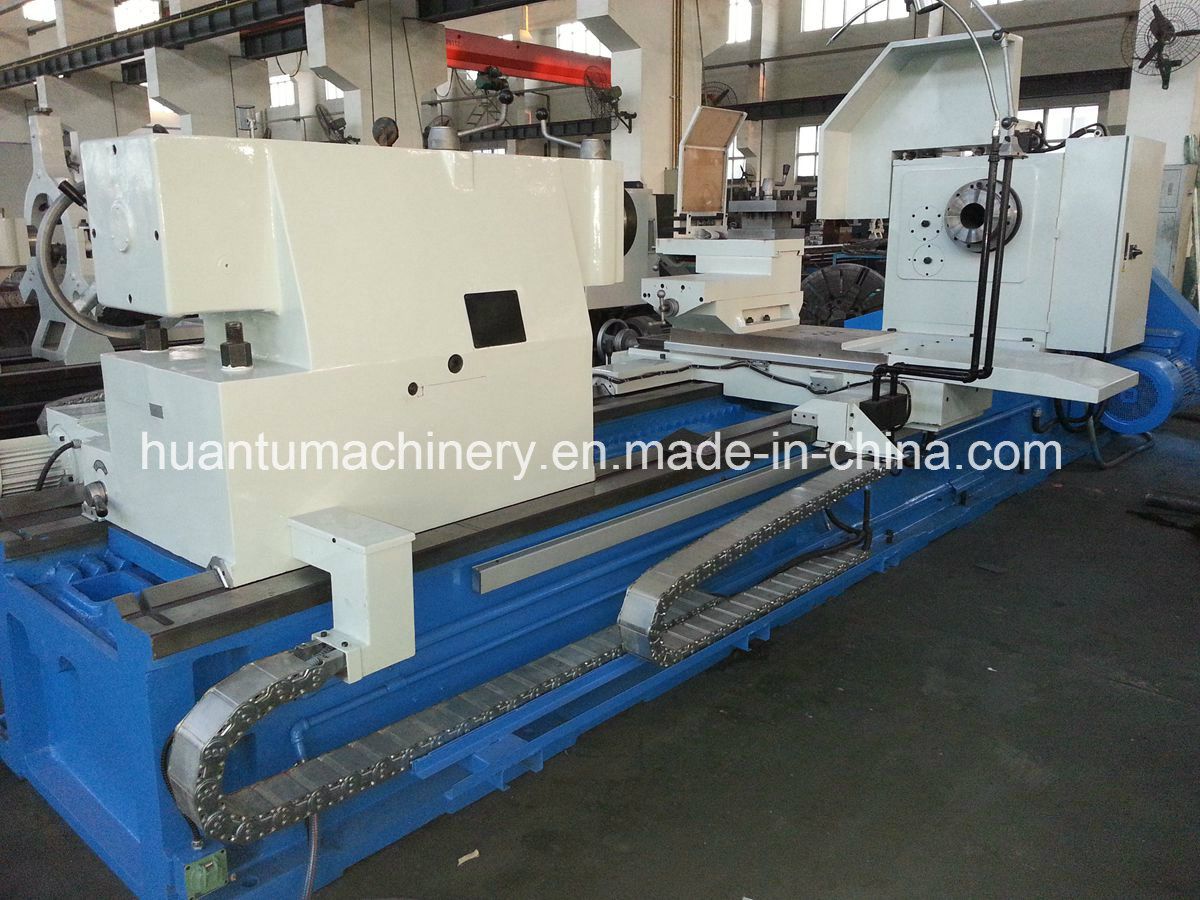

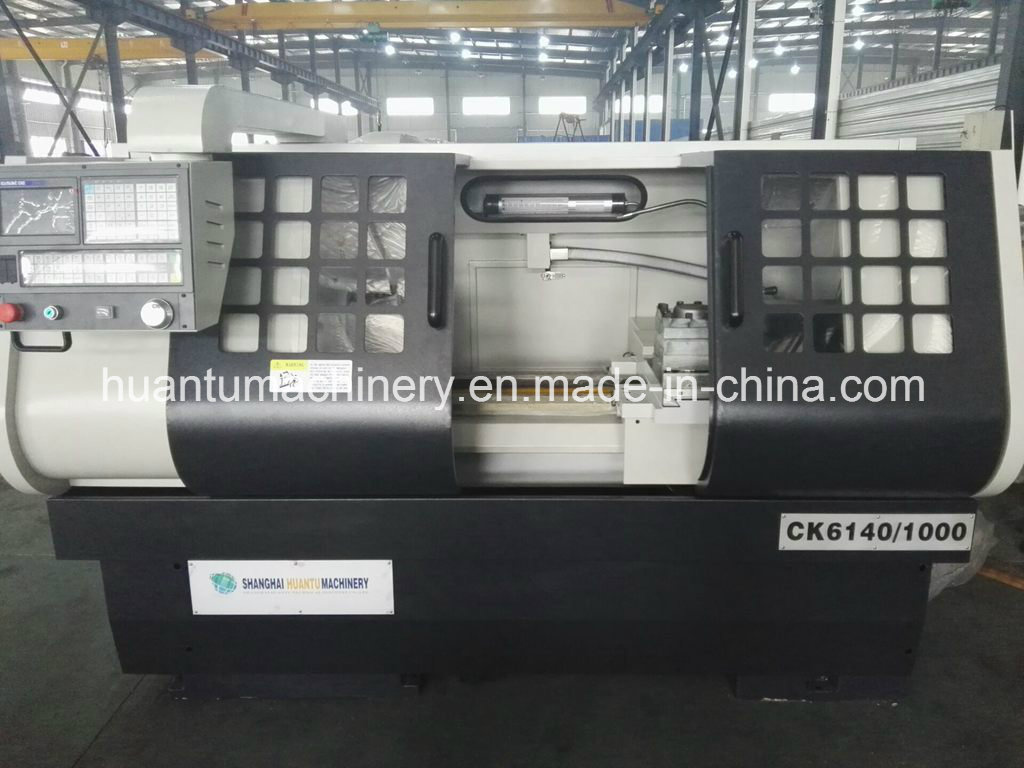

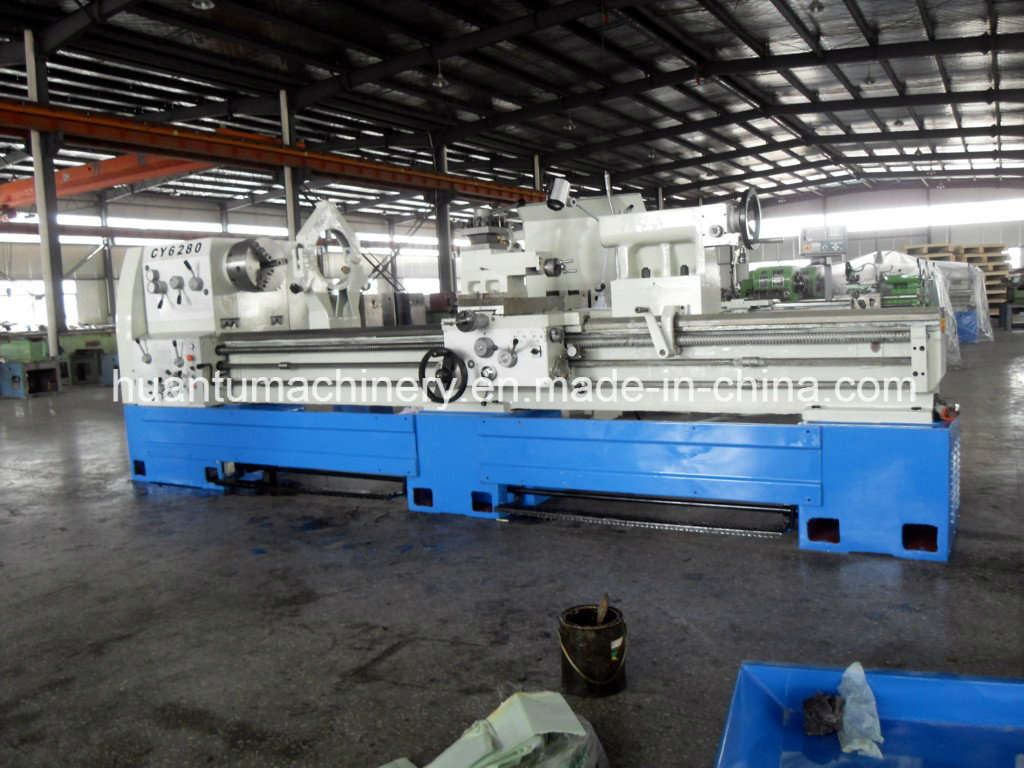

Hot Selling Horizontal Lathe Machine
| Price: |
US $ 5000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Lathe Machine |
| Max Swing Over Bed: |
360/500/600/660/800mm |
| Max Swing Over Cross Slide: |
190mm |
| Max Swing Over Gap: |
520mm |
| Workpiece Cutting Length: |
750\1000\1500\2000\3000mm |
| Bed Width: |
360/400mm |
| Spindle Hole: |
52/65/80mm |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description
SHANGHAI HUANTU TECHNICAL INDUSTRY CO., LTDNO. 1187 AKESU Road, Jiading District, SHANGHAI, CHINAWeb: huantumachinery.en.alibaba.com www.huantutech.comContact: Cindy He Tel: +86 21 3377 9007 Fax: +86 21 33510290Mobile:+86 15021180416 Hot selling horizontal lathe machine
Main Specification| Model | CC61236 | CC61240 | CC61250 |
CAPACITY | Max. swing dia. Over bed | 360mm | 400mm | 500 |
| Max.swing over cross slide | 190mm | 230mm | 330 |
| Max.swing over gap | 520mm | 560mm | 660 |
| Workpiece cutting length | 750\1000\1500\2000\3000mm |
| Bed Width | 360mm |
HEADSTOCK | Spindle hole | 52/65/80mm |
| Spindle nose | ISO-C6 |
| Spindle taper | MT6 |
| Spindle speed(Number) | 42-1600rpm/44-1400rpm(12steps) |
FEEDS | Metric threads range | 0.25-14mm(19 kinds) |
| Inch threads range | 2-40inch (49 kinds) |
| Moudle threads range | 0.5-3.5mm(17 kinds) |
CARRIAGE | cross slide travel | 120mm |
| Max.travel of cross slide | 180mm |
| Max.size of toolshank | 20*20mm2 |
TAILSTOCK | Taper of tailstock sleeve | MT4/MT5 |
| Diameter of tailstock sleeve | 65/75mm |
| Travel of tailstock sleeve | 140/160mm |
| Main motor power | 4kw/5.5kw |
PACKING
L*W*H | Center Distance(750mm) | 225*115*1600cm |
| Center Distance(1000mm) | 245*115*1600cm |
| Center Distance(1500mm) | 295*115*1600cm |
| Center Distance(2000mm) | 345*115*1600cm |
N.W/G.W | Center Distance(750mm) | 1350/2000kg |
| Center Distance(1000mm) | 1450/2100kg |
| Center Distance(1500mm) | 1600/2250kg |
| Center Distance(2000mm) | 1750/2400kg |
Standard Accessories1.3-Jaw universal Chuck2.4-Jaw individual Chuck3. Face plate4. Dirving plate5. four way turret tool post6. Standard steady7. Follower rest8. Full set of wrench9. longitudinal stop or four longitudinal stop10. Wrenches, oil gun, operation manual Optional Accessories1. Knurling tool 2. Live center3. Taper gauge4. Electromagnetic brake5. Quick change tool6. with CE7. DRO Digital display After Sales Service1.Our warranty is 5 years from B/L date. If any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provides the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.About us
