| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
HRC55 3 Flutes Taper Ball Nose Tools CNC Power Sup |
| Model No: |
2f Taper Ball Nose End Mills |
| Brand: |
Preda |
| Material: |
Carbide |
| Precision: |
High Precision |
| Machine Type: |
CNC Machine |
| Suitable For: |
Wood, Plastic, Aluminum |
| Usage: |
Metal Machining |
| Flutes: |
2 Flutes |
| OEM: |
Accept |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Product Description
Products Description

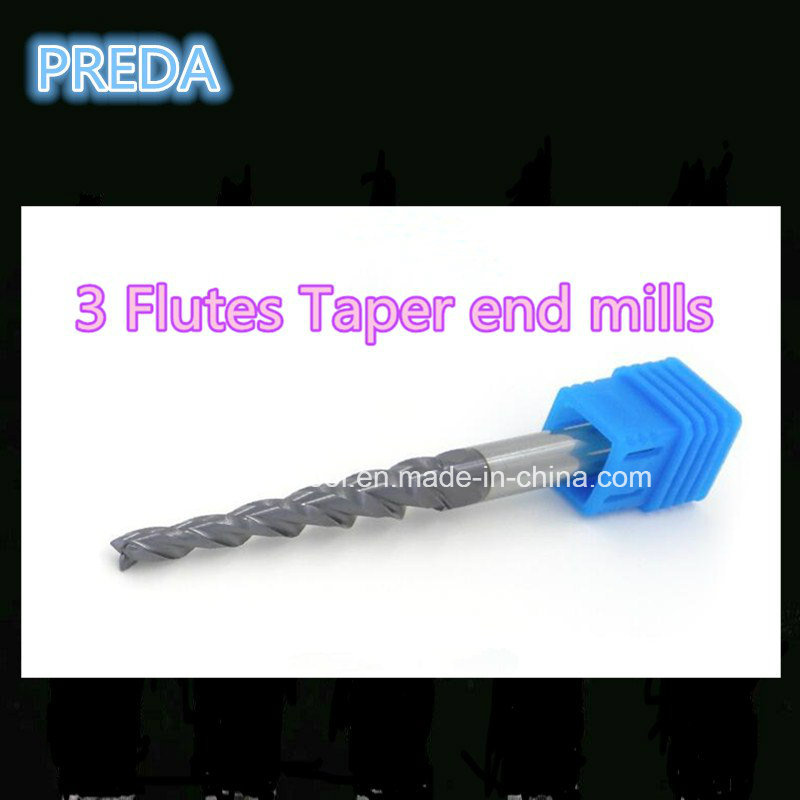

1 HRC55 3 Flutes Taper ball nose tools CNC power supply
2 Work piece for woodworking
3 Good price
4 Fast delivery
5 High quality for CNC Metal working
Products specification
SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3
| Coating Classifying and Advantage |
| Item | Coating Type | AlTin | Tialn | TiSin | Naco |
| Characteristic | Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp.(ºC) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
HRC55 3 Flutes Taper ball nose tools CNC power supply
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
Specifications:
roduct code | Flute dia | Flute length | angle | Overall length | Shank dia |
| XDD2T0505L10 | 0.5 | 10.0 | 0.5 | 50 | 4 |
| XDD2T0510L10 | 1 |
| XDD2T0515L10 | 1.5 |
| XDD2T0520L10 | 2 |
| XDD2T0530L10 | 2.5 |
| XDD2T0540L10 | 3 |
| XDD2T0550L10 | 5 |
| XDD2T0570L10 | 7 |
| XDD2T05100L10 | 10 | 6 |
| XDD2T07505L10 | 0.8 | 10.0 | 0.5 | 4 |
| XDD2T07510L10 | 1 |
| XDD2T07515L10 | 1.5 |
| XDD2T07520L10 | 2 |
| XDD2T07530L10 | 2.5 |
| XDD2T07540L10 | 3 |
| XDD2T07550L10 | 5 |
| XDD2T07570L10 | 7 |
| XDD2T075100L10 | 10 | 6 |
| XDD2T1005L13 | 1.0 | 13.0 | 0.5 | 4 |
| XDD2T1010L13 | 1 |
| XDD2T1015L13 | 1.5 |
| XDD2T1020L13 | 2 |
| XDD2T1030L13 | 2.5 |
| XDD2T1040L13 | 3 |
| XDD2T1050L13 | 5 | 6 |
| XDD2T1070L13 | 7 |
| XDD2T10130L13 | 10 | 8 |
| XDD2T12505L15 | 1.25 | 15.0 | 0.5 | 4 |
| XDD2T12510L15 | 1 |
| XDD2T12515L15 | 1.5 |
| XDD2T12520L15 | 2 |
| XDD2T12530L15 | 2.5 |
| XDD2T12540L15 | 3 | 6 |
| XDD2T12550L15 | 5 |
| XDD2T12570L15 | 7 |
| XDD2T125150L15 | 10 | 60 | 8 |
| XDD2T1505L20 | 1.5 | 20.0 | 0.5 | 50 | 4 |
| XDD2T1510L20 | 1 |
| XDD2T1515L20 | 1.5 |
| XDD2T1520L20 | 2 | 6 |
| XDD2T1530L20 | 2.5 |
| XDD2T1540L20 | 3 |
| XDD2T1550L20 | 5 | 60 | 8 |
| XDD2T1570L20 | 7 |
| XDD2T15200L20 | 10 | 75 | 10 |
HRC55 3 Flutes Taper ball nose tools CNC power supply
