| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
10mm HRC60 Carbide Cutters Blue Coated Power Tools |
| Model No: |
HRC60 Blue Coated End Mills |
| Brand: |
Preda |
| Material: |
Carbide |
| Precision: |
High Precision |
| Machine Type: |
CNC Machine |
| Suitable For: |
Wood, Plastic, Aluminum |
| Usage: |
Metal Machining |
| Flutes: |
4 Flutes |
| OEM: |
Accept |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Products Description1. 10mm HRC60 Carbide Cutters Blue Coated power tools
2. 2/4/6 Flutes Coated
3. HRC: 60
4. BLUE Coating
5.1mm-25mm / 1/16" to 3/4 "
6.2/4/6/8 Flute
7 Micro grain 0.5-0.6um
Products specification10mm HRC60 Carbide Cutters Blue Coated power tools
Surface Blue coating
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3
| Coating Classifying and Advantage |
| Item | Coating Type | AlTin | Tialn | TiSin | Naco |
| Characteristic | Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp.(ºC) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
Specifications: | Outside Dia/Dc | Shank Dia/D | Flute Length/LC | Overall Length/L | Flute |
| (mm) | (mm) | (mm) | (mm) | (mm) |
| 1 | 4 | 3 | 50 | 2& 3 |
| 1.5 | 4 | 4 | 50 | 2& 3 |
| 2 | 4 | 6 | 50 | 2& 3 |
| 2.5 | 4 | 8 | 50 | 2& 3 |
| 3 | 4 | 9 | 50 | 2& 3 |
| 4 | 4 | 12 | 50 | 2& 3 |
| 5 | 6 | 15 | 50 | 2& 3 |
| 6 | 6 | 18 | 50 | 2& 3 |
| 8 | 8 | 20 | 60 | 2& 3 |
| 10 | 10 | 25 | 75 | 2& 3 |
| 12 | 12 | 30 | 75 | 2& 3 |
| 16 | 16 | 50 | 100 | 2& 3 |
| 20 | 20 | 55 | 100 | 2& 3
|

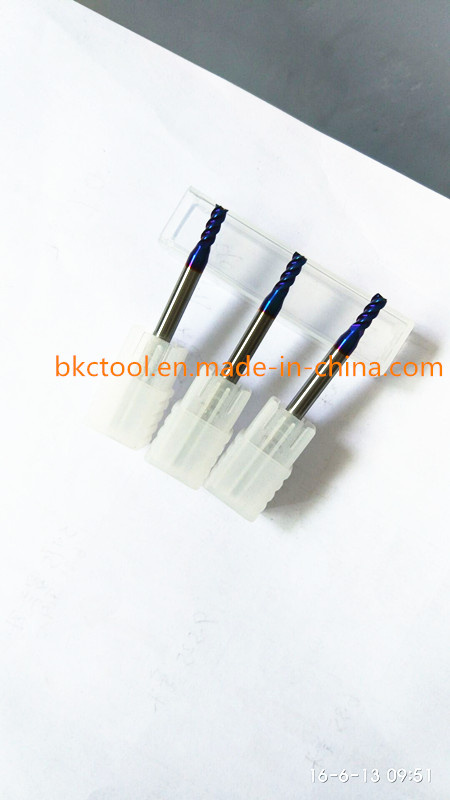

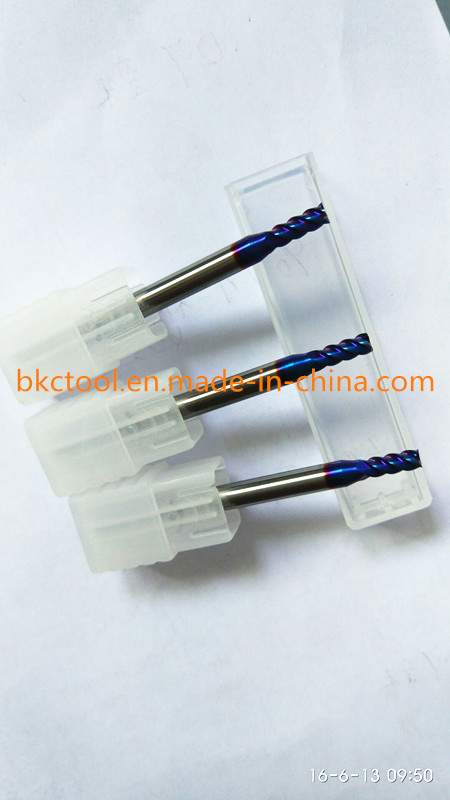

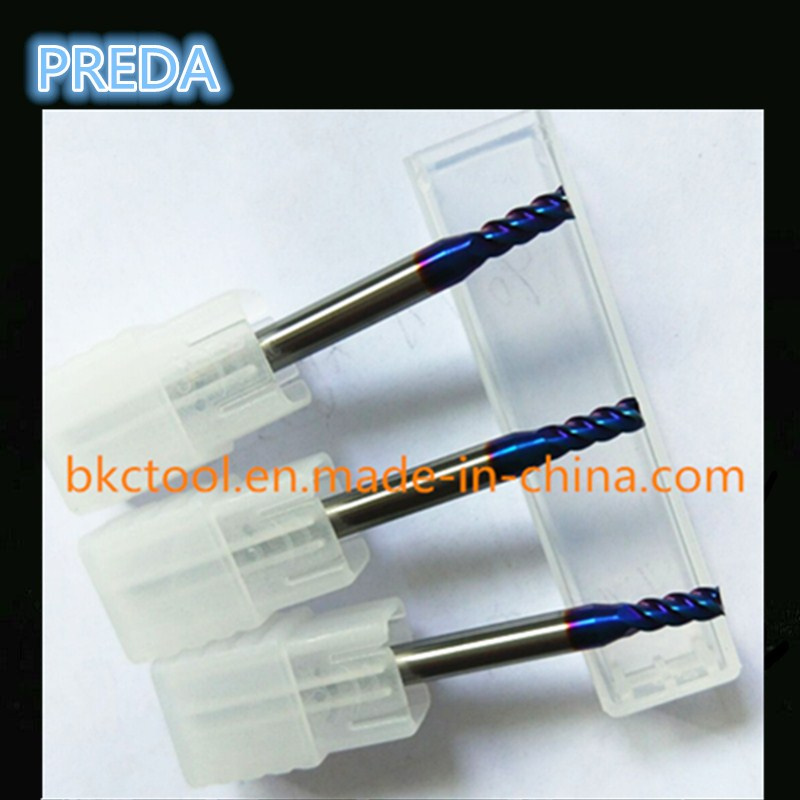

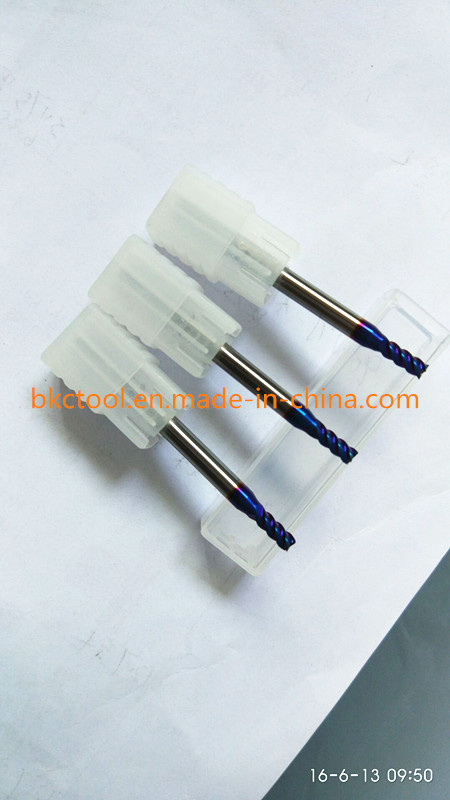

Products Show :

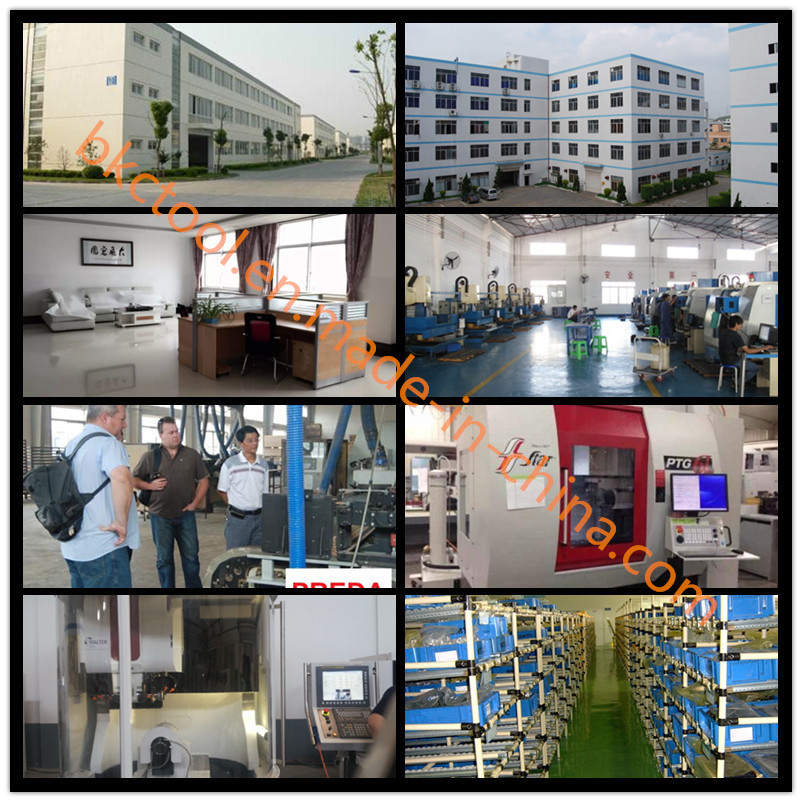

Company Details :
Package details :
FAQ:1. Are you manufacturer? Do you have factory? ---We are Professional manufacturer ,we have more than 15 years experience in this field.
2. Does free shipping is possible?----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
3. Can you send products to our Forwarder in China?----Yes, if you have forwarder in China, i will glad to send products to him/her.
4. Do you make OEM?----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5. How about the delivery time?----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
6. Can you produce carbide Special Tool ? --- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample
