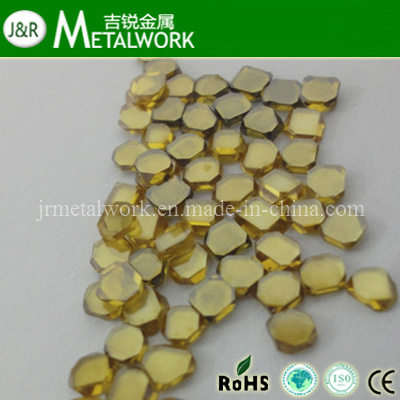

Hthp Synthetic Single Crystal Diamond Plates (MCD)
| Price: |
US $ 25/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
JRD11, JRD21, JRD12, JRD13, JRD23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2.5*2.5*1.1mm to 7.0*7.0*1.1mm |
| Orientation: |
110, 100, 111 |
| Applications: |
2 Point and 4 Point Tools |
Product Description

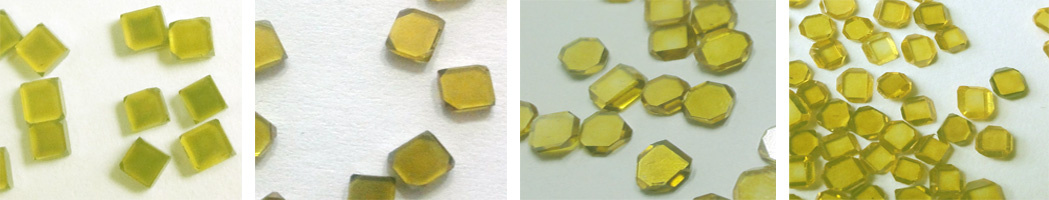

HTHP Synthetic single crystal diamond plate
Available type:4 point(100 direction) and two point(111)
Availablesize:2.5*2.5*1.1mm,3.0*3.0*1.1mm,3.5*3.5*1.1mm,4.0*4.0*1.1mm,4.5*4.5*1.1mm,5.0*5.0*1.1mm,5.5*5.5*1.1mm,6.0*6.0*1.1mm,6.5*6.5*1.1mm,7.0*7.0*1.1mm
Available grade:
JRD11:without any impurity with Square shape
JRD21: occasional spot with Square shape
JRD12:without any impurity with at least 2 right angle
JRD13:without any impurity with polygon shape
JRD23: occasional spot with polygon shape
Applications:
Cutting tools
Our range of rectangles are produced by further processing whole stones and have all faces cut to size. Whole stones and plates are oriented on the crystallographic {100} and {110} planes of synthetic diamond. For more information, please view our Synthetic diamond for dressing/cutting brochure.
Dressing tool
This plates are applied in dressing tool types, i.e. single point, blade, rotary and roller dressers, as well as special cutting tools and indentors. Plates are made by further processing whole stones and have all faces cut to size. It is oriented on the crystallographic {100} plane of synthetic diamond.
Wire drawing dies
For applications of drawing non-ferrous, ferrous, precious and refractory materials which require ultra-fine finishes, synthetic diamond is the preferred wire drawing material. The die blanks are orientated on the crystallographic {111} plane of synthetic diamond.

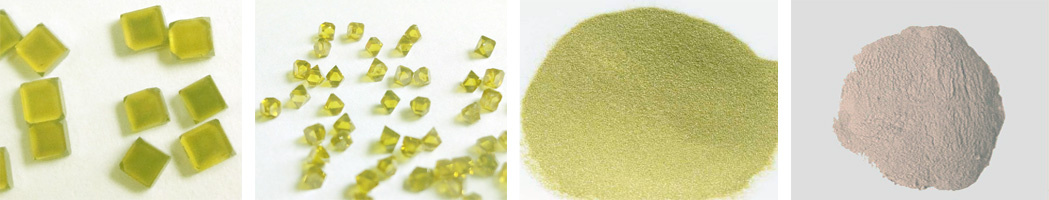

HTHP Synthetic single crystal diamond crystal
Available type:light yellow,yellow and slight black
Available size:1.0mm,1.2mm,1.4mm,1.6mm,1.8mm,2.0mm,2.2mm,2.4mm,2.6mm,2.8mm,
3.0mm,3.2mm,3.4mm,3.6mm,3.8mm,4.0mm,4.2mm
Available grade
JRD2290:light yellow without cracks or spots
JRD2280:VVS1 grade
JRD2240:a few cracks or spots
RD2220:some cracks or spots
Applications:correct pen,carving tools,salting natural parcels for jewellery
Synthetic diamond grits
Available type:completed crystal or crashed grits
Available size:20/25,25/30,30/35,35/40,40/45,45/50,50/60,60/70,70/80,80/100,100/120,120/140,
140/170,170/200,200/230,230/270,270/325,325/400,400/500,500/600,600/800
Applications:for make diamond bit,saw blade or diamond wheel for stone or non-ferrous cutting.
Synthetic diamond micro powder
Available type:yellow and green powder
Available size:W0.25 ~ W60
Applications: for make diamond wheel for polishing,lapping
