| Price: | US $ 0.4-0.6/Piece |
|---|---|
| Min Order: | 280/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | HZ-152 |
|---|---|
| Fixing: | Rubber/Plastic/Spring |
| Material: | Diamond Powder, Cobalt etc |
| Beads Dia.: | 7.2mm, 8.5mm, 9.0mm, 10.5mm, 11mm, 11.5mm |
| Bead Width: | 6mm/7mm |

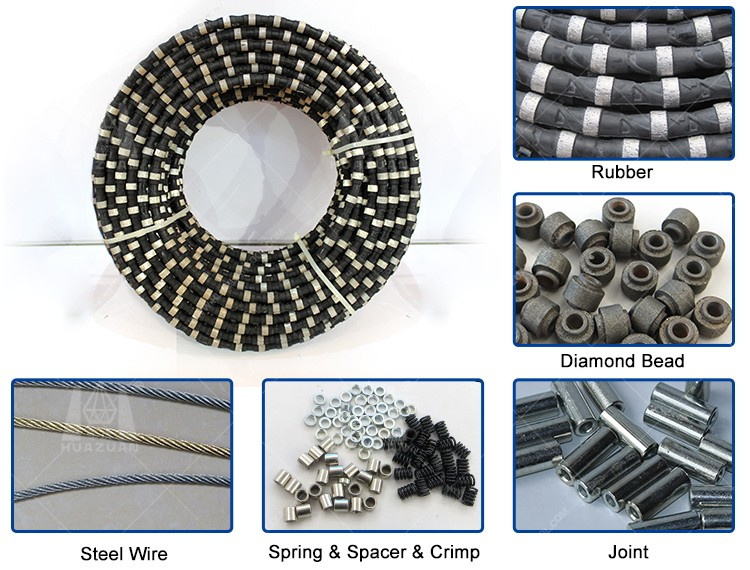

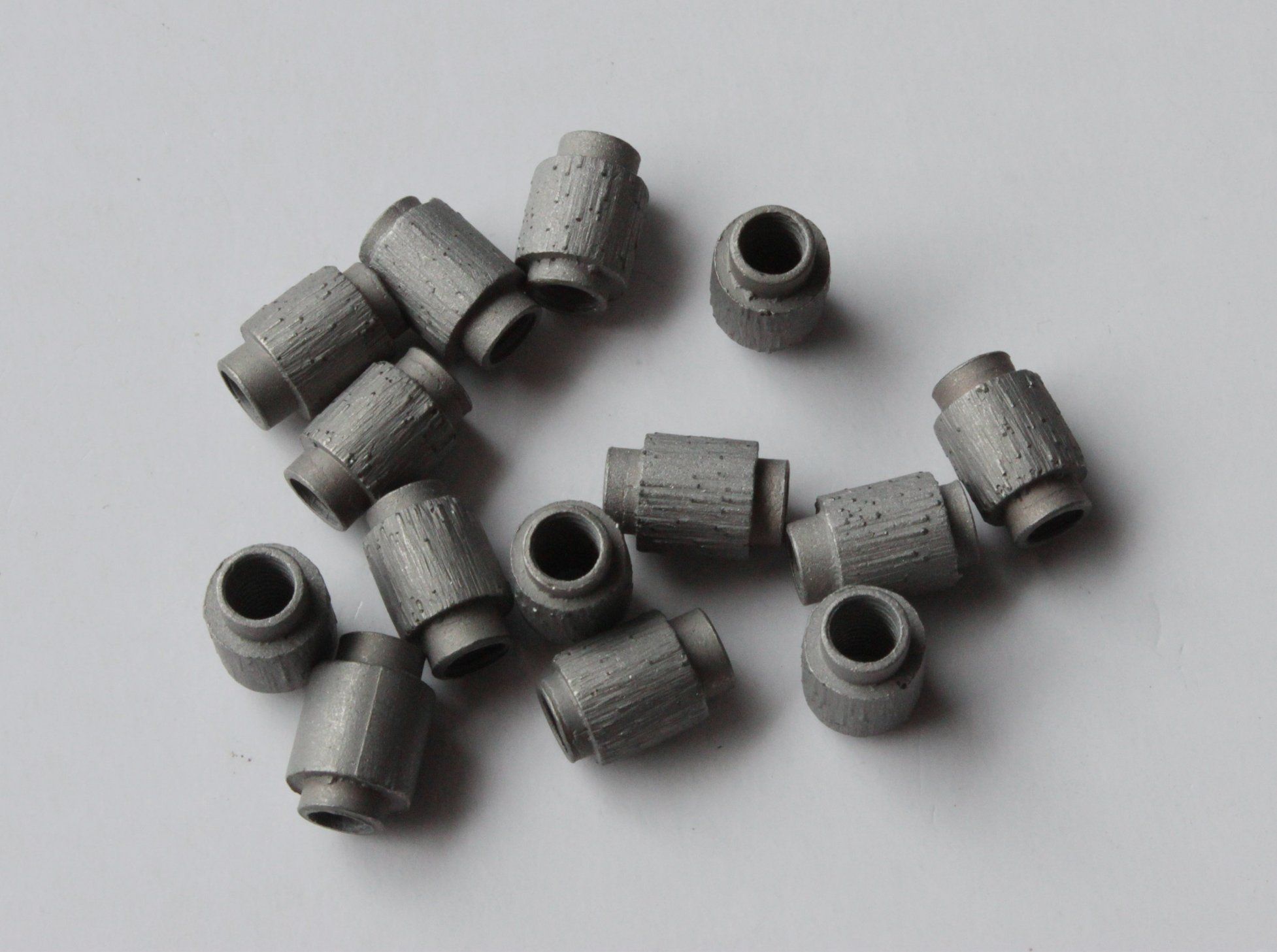

| Beads Type: | Sintered, Electroplated, Brazed Diamond Wire Saw |
| Beads Number: | 8PCS/Meter, 37PCS/Per Meter, 40 PCS/Per Meter |
| Packing: | Inner Box, Cartons, or as Request |
| MOQ: | 10 Meter/Meters Diamond Wire Saw |
| Product name | Huazuan Diamond Tools Diamond Wire Saw Beads for Granite Stone Processing | |
| Feature | High cutting ability,Smooth surface and clean edges | |
| Application | diamond wire saw for granite | for granite quarrying,block squaring,chamfering and profiling cutting. |
| diamond wire saw for marble | for marble quarrying,block squaring,chamfering and profiling cutting. | |
| diamond wire saw for reinforced concrete | widely used in the building construction,make cuttting for houses,bridges,big post,cement pipes and under water buildings. | |
| electroplated & brazed diamond wire saw | for marble quarrying and concrete cutting | |
| our advantages | 1.High performance,low cost and waste. 2.Smooth cutting face,accurate of processing. 3.Safety,environmental. | |
| Diamond Wire Saw for Granite | |||
| Specification | Beads/Meter | Coating | Usage |
| dia.7.2mm | 37/40 | Rubber,Plastic Rubber/Plastic+Spring | Granite Quarry Granite Shaping Granite Profiling |
| dia.8.5mm | |||
| dia.9.0mm | |||
| dia.10.5mm | |||
| dia.11.0mm | |||
| dia.11.5mm | |||
| Diamond Wire Saw for Marble | |||
| dia.8.5mm | 26/28/33 | Rubber,Plastic,Spring Plastic+Spring | Marble Quarry Marble Shaping Marble Profiling |
| dia.10.5mm | |||
| dia.11.0mm | |||
| dia.11.5mm | |||
| Diamond Wire Saw for Reinforced Concrete | |||
| dia.10.5mm | 40 | Rubber+Spring | Concrete Cutting |
| dia.11.0mm | |||
| dia.11.5mm | |||
| Electroplated & Brazed Diamond Wire Saw | |||
| dia.10.1mm | 28/34/40/46 | Rubber Rubber+Spring | Reinforced Concrete Marble Profiling |
| dia.10.5mm | |||
| dia.11.0mm | |||
| Other specifications are available upon request. | |||

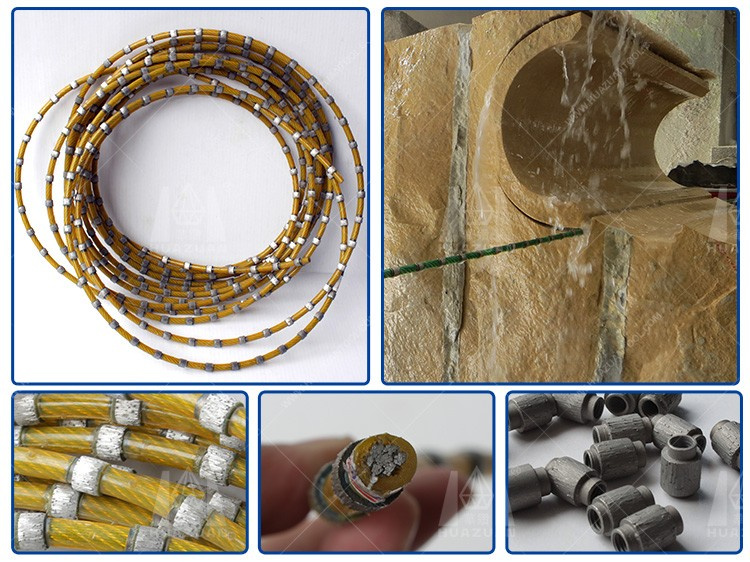

1.Diamond Wire Saw For Quarry:
We recommend rubber wire
it can protect the wire saw rope very well and increase the wire's strength.
The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem.

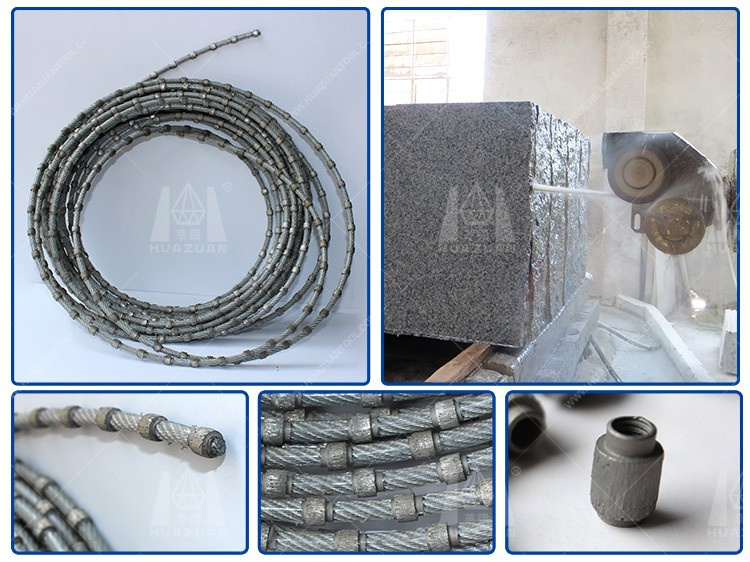

2.Diamond Wire Saw For Block Dressing:
We recommend plastic wire,it can be used to dissect marble granite.
It can cut accurately with small inter-space.
It can cut the block with the thickness of 2.3M
3.Diamond Wire Saw For Profiling :
We recommend plastic wire for shaping operations provides a huge range of possibilities
It makes smooth surface, and accurate sizes with small inter-space.
Columns and elements for the building industry can be produced in much more economic way

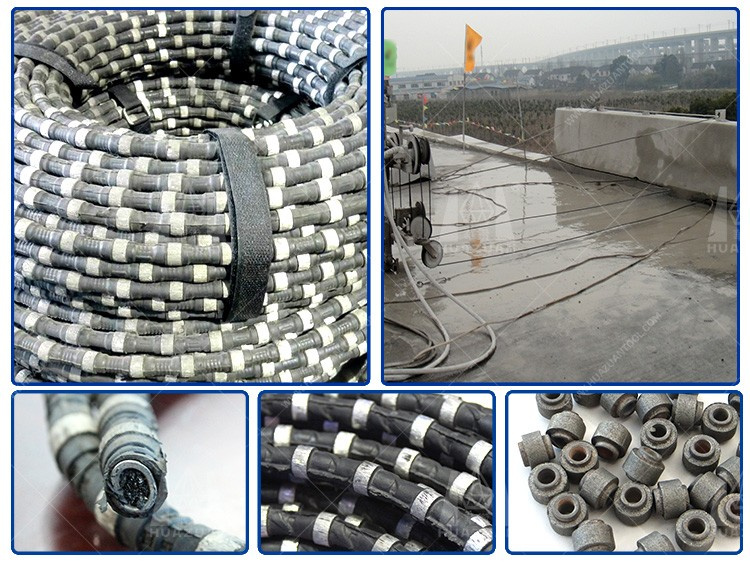

4.Diamond Wire Saw For Reinforce Concrete Cutting:
We recommend 10.5/11.5mm Rubber and Spring wire.
The wires are widely used in the reinforced concrete with more than 5% steel inside.
Used in the building constructions, cutting for houses,bridges,cement pipes and under waster buildings.
Sawing with diamond wire is the most efficient way to remove large concrete constructions
such as foundations and bridges. Or to cut thick walls and openings with exact corners.
Our wire saws, are easy to use. They are powerful and flexible, making them perfect for smaller jobs.
Sawing is easy thanks to their unique design that increases the friction between the wire and the drive wheel.
There is virtually no limit in terms of sawing depth . You're able to do deep sawing in confined spaces.
And our unique diamond tools enable you to cut very complex structures, both in steel and heavily reinforced concrete.
Also, there's no need for water when making dry cuts, which makes our wire saws useful when slurry is a concern.

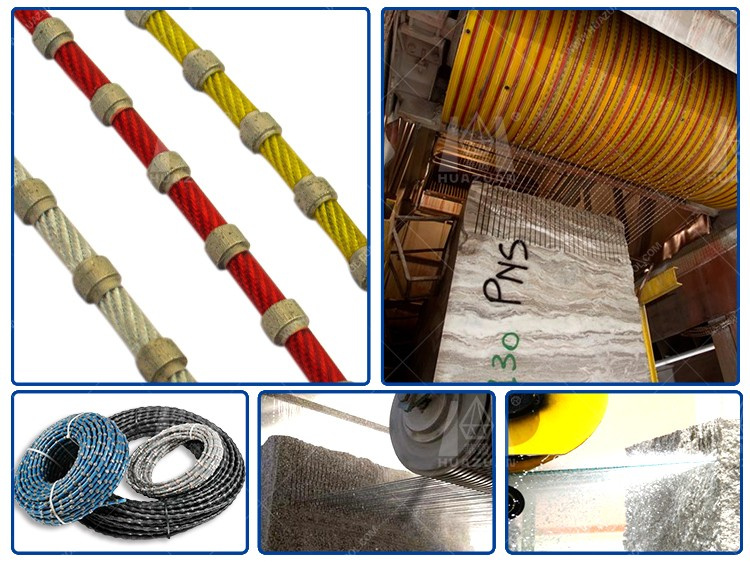

5.Diamond Multi-Wire Saw For Slab Cutting:
Diamond multi-cutting wire saws are suitable for cutting the different kinds of large granite slabs
Remark :modern gang saw can produce in a month 3000 to 4000 square meters of slabs of 2cm thickness
The multi-wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm.
