Hydraulic Hose Fitting Crimping Tool

Name: Hydraulic Hose Fitting Crimping Tool
Brand: tool-buy.com
SKU: 712267672
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Tianjin Hengyong Hydraulic Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	HY-68
Crimping Range:	6 to 51 mm
Max.Buckling Force:	500 T
Dies:	10 Sets
Voltage:	220V/380V
Crimping Hose Layers:	up to 4 Layers
Dimension(LWH):	730X470X780mm
Weight:	270kg
Delivery Time:	7-10 Days After Receiving The Payment
Color:	Red and Blue

Product Description

hydraulic hose fitting crimping tool

Nowadays, more and more machine have used rubber hose to transmit hydraulic pressure as working power. After crimped by the Hose Crimping Machine, the rubber hose have been used widely in almost every industrial field which involved in hydraulic pressure.

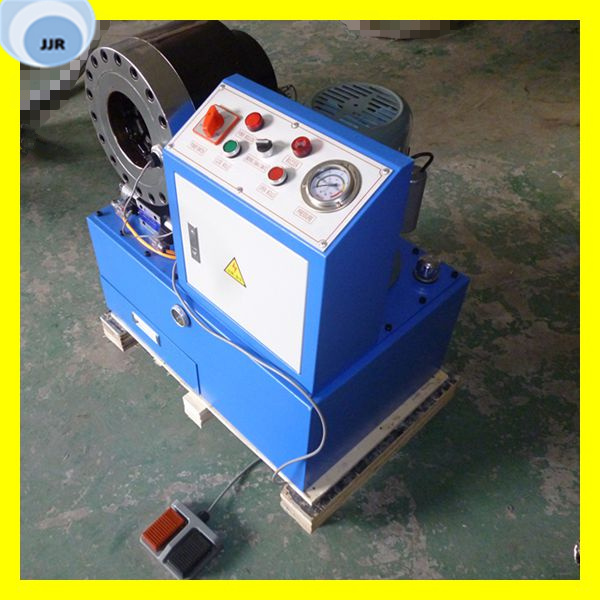

HY-68 Hydraulic hose crimping machine is widely used in the mechanical engineering at home and abroad for buckling processing of high pressure rubber pipe assembly. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and very easy to operate.

Crimping range	6mm-51mm/1/4"~2"
Max.buckling force	500T
Scale accuracy	0.01mm
Rated pressure	31.5mpa
Oil pump displacement	5ml/rad/3kw(380V) 2.5ml/rad/2.2kw (220V)
Overall dimensions	730(L)×470(W)×780(H)mm
Dies	10 sets
Weight	275kg

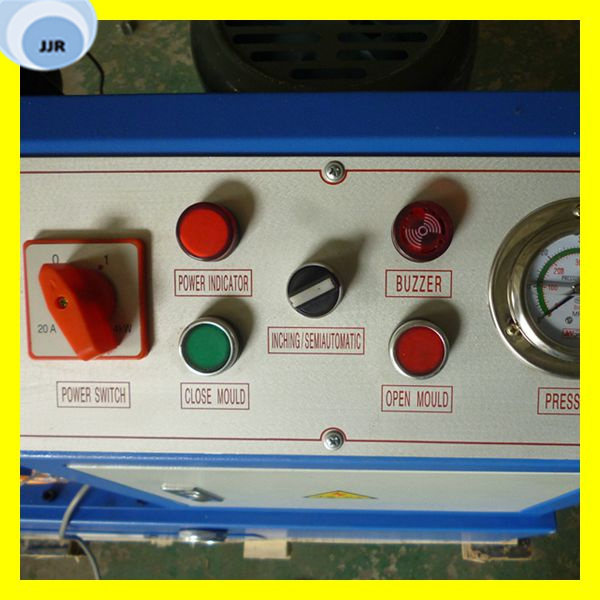

Control panel

You can choose INCHING or SEMIAUTOMATIC model for operation.INCHING model can be used when changing dies and adjusting settings.

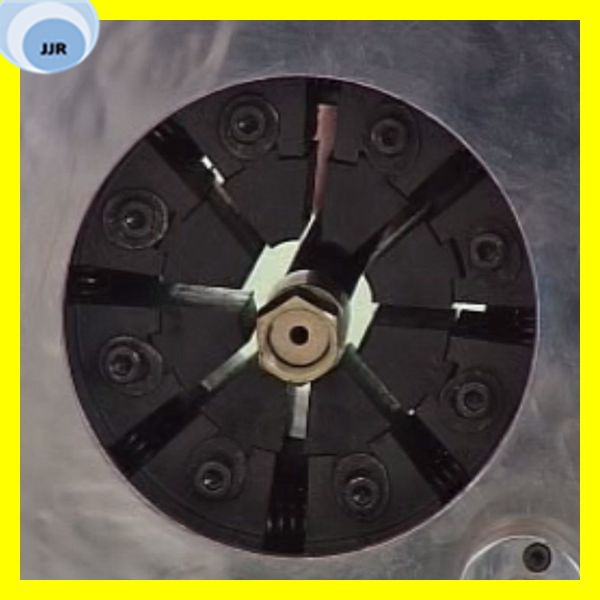

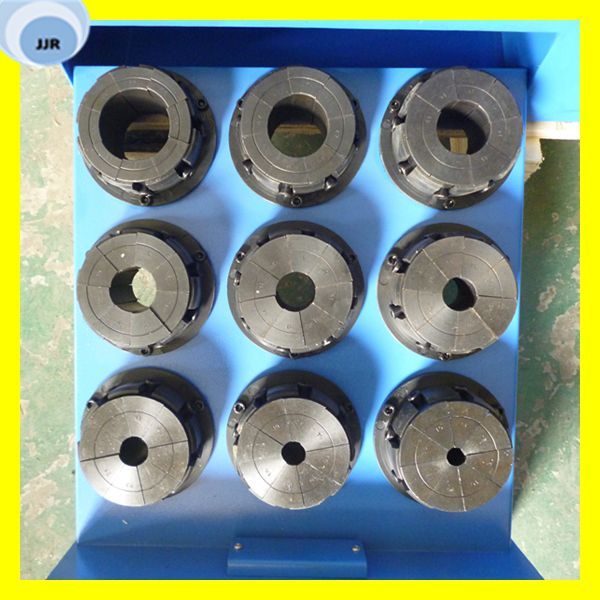

Dies from Φ6mm-Φ51mm

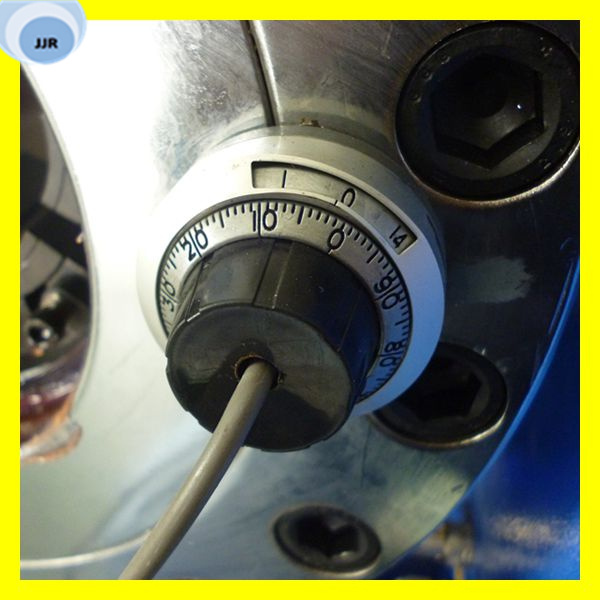

Crimping diameter dial

Used for regulating the amount of swaging. When it is regulated as clockwise, the swaging amount will increase. When it is regulated anti-clockwise, the swaging amount will decrease.One circle equals 1mm.

Crimping fitting

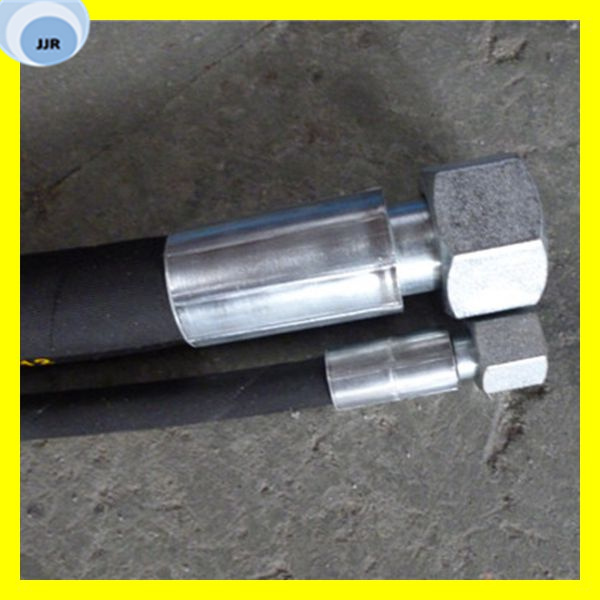

Hose assembly

Packing in wooden case

It is worth having this machine for home shop use,making your own hydraulic hoses!

Tianjin hengyong hydraulic technology Co., Ltd is a leading manufacture and exporter of hydraulic hose and fitting in China.

Our products are widely used in petroleum, construction, coal mining industry, machinery, agriculture, garden industry, automobile industry, etc.

15800 Workshop, 180sets Of Main Processing Machineries, 20sets of Inspection &Test Machineries. 230 well trained workers, our output per year is more than 5, 000, 000 meters for various kinds of rubber hose, 2, 000, 000 of connectors and 300, 000 Assembly hoses.

With more than 15 years experiences in this field, we keep our top focus on the premium quality and customer totally satisfaction all the time.

The stability and credibility of quality can be guaranteed under our strict quality control system, plus a prompt response and good delivery time always enable us meet and exceed our clients' expectations. We have built a long term relationship with several outstanding enterprises by providing OEM service

Our goal is striving to maximize our customer's value by delivering the highest quality products and service at a competitive price. Please feel free to contact us if you require any further information or assistance.

We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price
