| Prod Model: |
DFQ-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Water Well, Farm Irrigation, Pile Foundation |
| Drilling Caliber: |
105-203mm |
| Weight: |
5200kgs |
| Dimension(L*W*H): |
3700*1660*2350mm |
| Max.Drilling Depth: |
200m |
| Diesel Power: |
50kw |
| Certification: |
BV, SGS Certificate |
| Warranty: |
One Year Warranty |
| Control System: |
Hydraulic System.High Efficiency |
| Usage: |
Water Well |
| Power Type: |
Diesel |
| Type: |
Core Drilling Rig |
| Condition: |
New |
Product Description

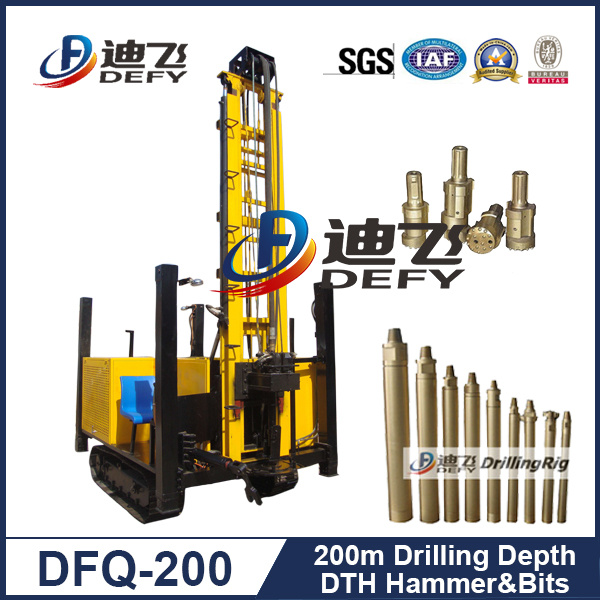

200m Drilling Depth Water Well Drilling Rig for Sale DFQ-200 with Air Compressor
Brief Details of Water Well Drilling Rig:
1. Model No.: DFQ-200
2. Max. Drilling Depth:200m
3. Drilling Rod Diameter:Φ63.5/Φ73
4. Borehole Diameter: 105~~203mm
5. Warranty: One year guarentee excluding wearing parts
6. Certifications: BV, SGS Certificate
7. Applications:Water Well,Irrigation wells,Geological Exploration,Geothermal Heat Project etc.
Customers' Focus
First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.
1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation
Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the
soft and hard layers?
The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.
Product Specifications of DFQ-200 Drilling Rig:
DFQ-200 drilling rig is a light weight, high efficiency and multi-function drilling equipment, it adopts rubber crawler, will not damage the roads, self-propelled transitions,convenient and quick. It is widely used for water well drilling,geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering. Much higher efficient than the traditional rotary drill rigs, creating the considerable economic benefit for users. DFQ-200 drilling machine is able to work efficiently under all kinds of geological conditions.DFQ series penumatic well drilling rig is very popular in market from Kenya, Nigeria, Ethopia, Mombasa, Uganda, South Africa, Zimbabwe, Chile, Peru, Malaysia, Dominica, India, etc.
1. suitable land condition is mainly very hard rock, like marble, granite, limestone.
2. Equipped with special DTH hammer and DTH bit, efficient in rocky area.
3. Power is diesel engine, suitable outside working.
4. Need use with air compressor
5. Higher efficiency, compared with traditional rigs. Drilling speed--20 m/h
Parameters of Water well Drilling Rig DFQ-200
| No. | Item | Parameter |
| 1 | Drilling caliber | Φ105-203mm |
| 2 |
Max. drilling depth | 200m |
| 3 |
Diameter of drill pipe |
Φ63.5,Φ73 |
| 4 |
Unit Length of drill pipe |
3000mm |
5 |
Work pressure |
1.05-2.0 MPa |
6 |
Gas consumption |
10~24 m³/min |
7 |
Impacter |
DHD250\360 |
8 |
Impacting frequency |
1200-1500Hz |
9 |
Apply to rock hardness |
f=6-12 |
10 |
Power |
50Kw/2200rpm |
11 |
Grade ability |
25° |
12 |
Walking speed |
0~2.0 Km/h |
13 |
Ground clearance |
215mm |
14 |
Leg cylinder stroke |
900mm |
15 |
System pressure |
20MPa |
16 |
Propulsion |
5.0 tonf |
17 |
Lifting force |
8.5 tonf |
18 |
Speed of spindle |
Fast 135 rpm |
Slow 91 rpm |
19 |
Rotary torque |
2000N.m |
20 |
Weight |
5200 Kg |
21 |
Dimension |
3200×1660×2350 mm |
Packaging & Shipping
Package of Water well Drilling Rig DFQ-200
To protect drilling rigs during sea transportation, we give them proper packing.
Main machines: In wooden case
Spare parts: Wooden case or plastic woven bag
