| Prod Model: |
FY-MXTA |
| Product Name: |
Hydraulic Tool Hydraulic Torque Wrench Aluminum Ti |
| Model: |
Fy-Mxta |
| Min Torque: |
183nm |
| Max Torque: |
48666 |
| Bolt Diameter: |
M16-M115 |
| Nut Size: |
24-165mm |
| Color: |
Customize |
| Working Pressure: |
700bar |
| Weight: |
2.3-53.5kg |
| Material: |
Aluminum Titanium |
Product Description
Product Description Hydraulic tool hydraulic torque wrench aluminum titanium square drive hydraulic torque wrench
MXTA series hydraulic torque wrench is the all time most requested square
drive hydraulic torque equipment by maintenance, service and construction
personnel worldwide! The MXTA equipment includes features that set the

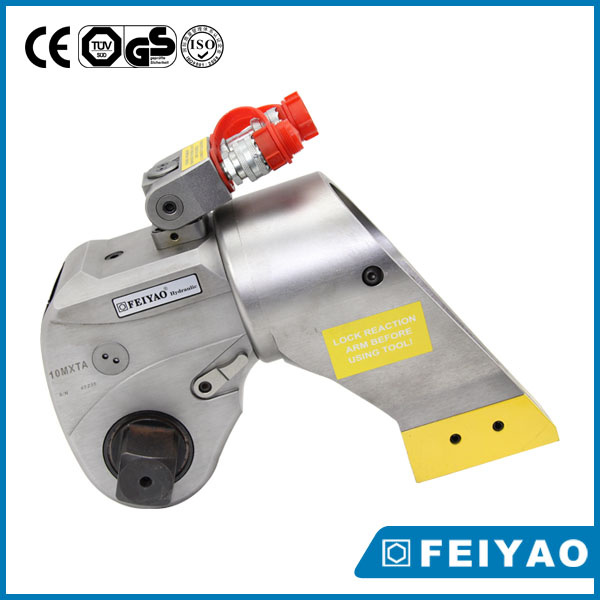

standard by which all other manufacturer's strive to measure up to.Photo of square drive hydraulic torque wrench
Specifications of square drive hydraulic torque wrench:
| Model | FY-
02MXTA | FY-
05MXTA | FY-
08MXTA | FY-
10MXTA | FY-
16MXTA | FY-
20MXTA | FY-
27MXTA | FY-
39MXTA | FY-
50MXTA | FY-
60MXTA |
| Max. Torqu(N.M) | 1940 | 4763 | 8012 | 10704 | 15633 | 20782 | 28286 | 39584 | 50844 | 58673 |
| Min.torque(N. M) | 139 | 340 | 572 | 765 | 1117 | 1484 | 2020 | 2827 | 3632 | 4263 |
| Nut hex(mm) | 24-55 | 32-75 | 41-85 | 46-95 | 55-105 | 60-115 | 65-130 | 75-145 | 95-170 | 105-185 |
| Bolt size(mm) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 39-80 | 42-90 | 48-100 | 64-120 | 72-130 |
| Drive(inch) | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
| weight(kg) | 2.3 | 5.2 | 8 | 12 | 14.8 | 18.9 | 28 | 41.2 | 46.3 | 53.5 |
Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
Certificate

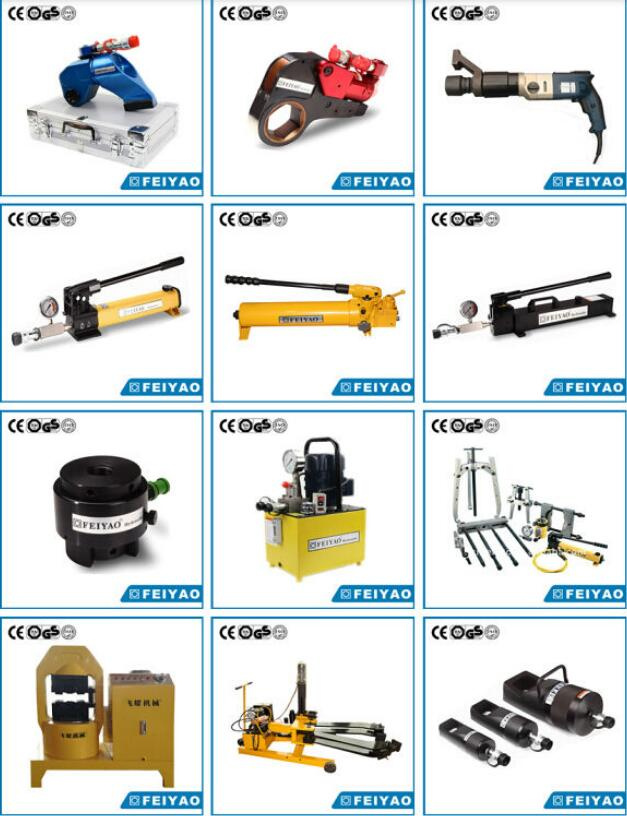

We are a manufacturer in Hydraulic tools, such as:- Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
- Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
- Hydraulic bolt tensioner (100-11486NM);
- Hydraulic pumps, manual and electric type (max up to 3000bar);
- Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
- Hydraulic nut and couplings. (M50-Tr1000)
We warmly welcome all overseas customers to talk with us about business or other cooperation
Any phone call, E-mail, fax from you would be a beginning of happy cooperation.
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you ! FAQQ1: How can contact sales? A1: Please call: 86-158-5692-3291 for pre-sales or click the contact find our website and email address.Q2: How can I buy FEIYAO products in my country? A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country. Q3: Can I have FEIYAO products catalog and price list? A3: Please visit our English website: www.fyhydraulic.com/en to download our E-catalog, and send us an email for price listQ4: How long does it take to get the product If I place an order? A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations. Q5: How to make payment? A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details. Q6: Manufacturing time? Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce. For more information about the products please contact me as below: Jiangsu Feiyao Machinery Manufacturing Co.,Ltd
Contact person: Mr. John
Tel:+86-158-5692-3291
Web:www.fyhydraulic.com
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.
Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.
Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.
At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.
The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
