| Prod Model: |
KET-KBS |
| Name: |
Split Type Hydraulic Torque Wrench |
| OEM: |
Yes |
| Weight (Kg): |
2.1-7.2 |
| Delivery Time: |
7-15days |
| Max.Pressure: |
700bar/10, 000psi |
| Quality Grade: |
Professional Level |
| Color: |
Can Customize |
| Working Mode: |
Hydraulic |
| Standard: |
German Type |
| Max Split Range (mm): |
117-210 |
Product Description

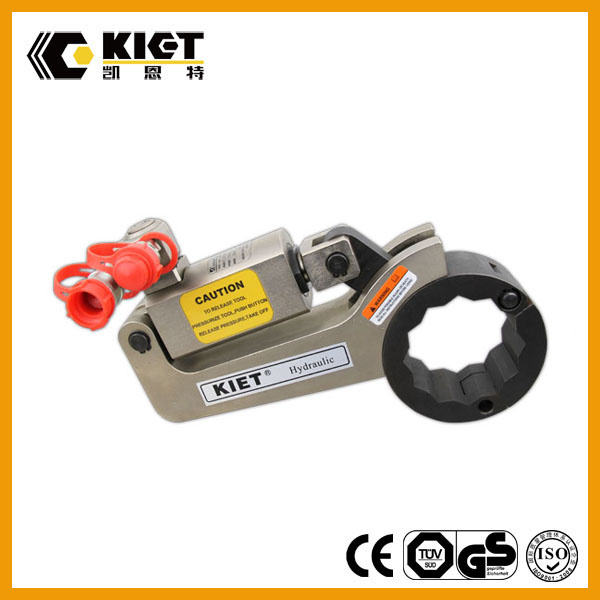

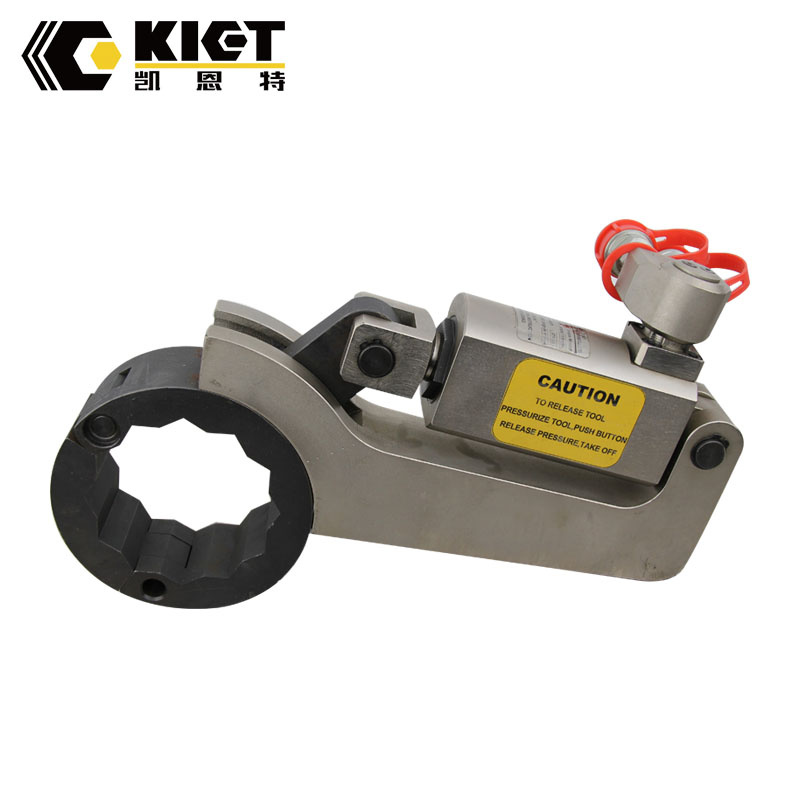

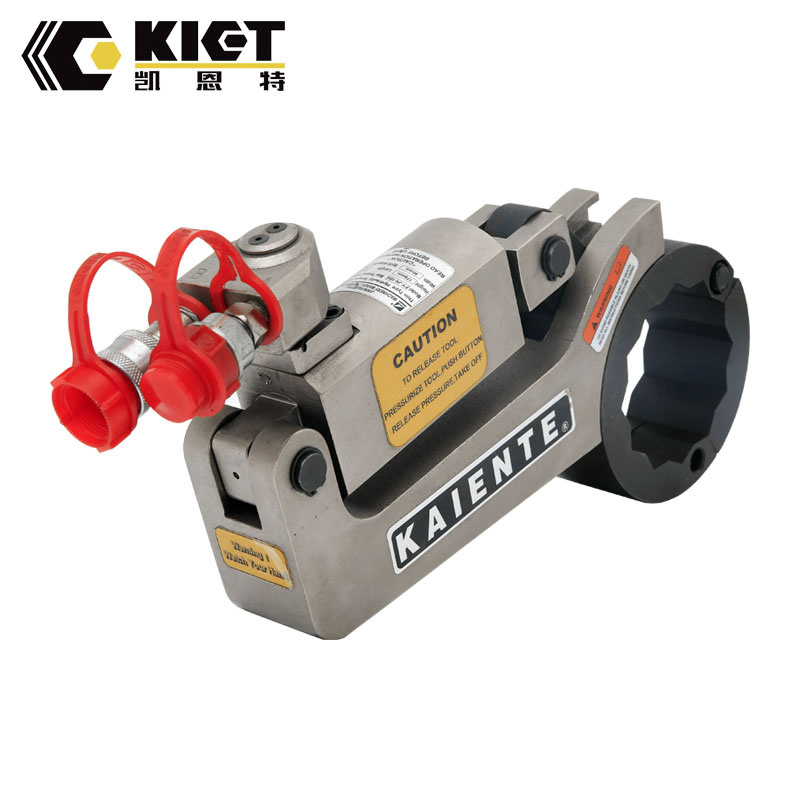

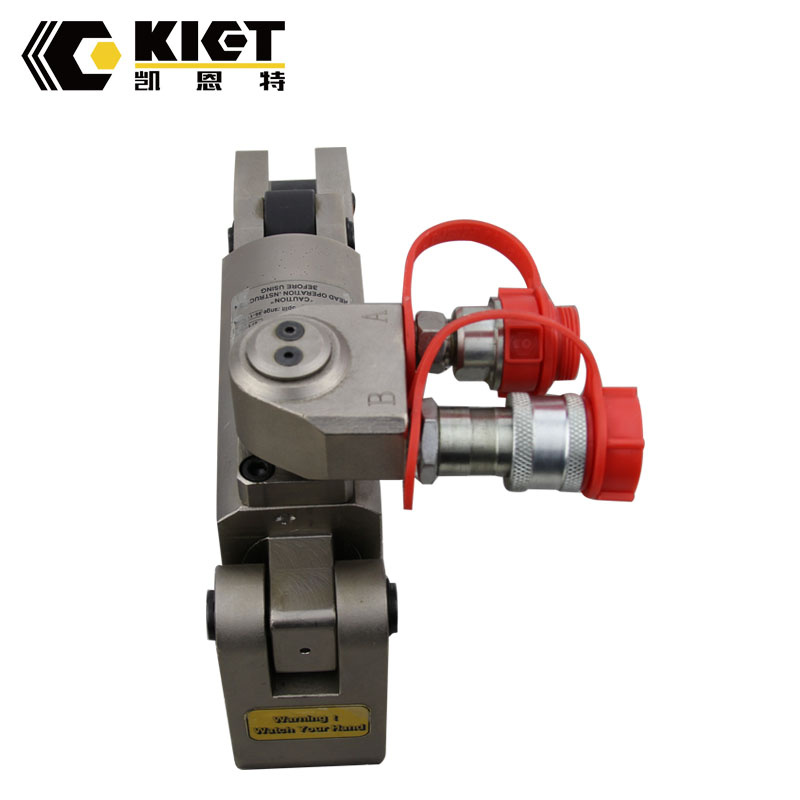

Hydraulic Tool Split Type Hydraulic Torque Wrench
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Product description
When the spit type hydraulic torque wrench encounters a problem of an axis, a rod or a pipe through in the center of nut, it still can solve easily.Uniqve "split type" design can reverse any size or any type of fastening nuts, provide unprecedented speed, accuracy and safety.
•Split type* design slows:he tool to be set on various types of axes, rods and tubes in one minute. It can tighten or remove the bols easily for oriy a few seconds.
Product features
Unique double-side swivd joint design, applicable to more occasions.
Corrosion resistant nickel coating on al exposed parts.
Each wrench is tostod and calibrator to ±3% accuracy.
Standard working pressure: 70MPa.
360 degree swivel mantifold with screw lock couplers
Optional interchangeable metric and imperial hexagon heads and reducer inserts
Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Brief introduction of Kiet:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
More Information and questions please contact me as below:
Contact :Aaron
Mobile number: +86 18052610078
Tel:+86-523-86183388
Web: http://www.chinakiet.com/EN/
Welcome to visit our factory !
| Model | Max- Torque (Nm) | Length (mm) | Height (mm) | Width (mm) | Radial Clearance (mm) | Axial Clearance (mml | Sptt Range (mm) | Weight (kg) |
| KET-KBS-10 | 11390 | 271 | 178 | 50 | 127 | 99 | 85-117 | 2.1 |
| KET-KBS-20 | 27256 | 357 | 232 | 50 | 187 | 127 | 117-152 | 4.8 |
| KET-KBS-30 | 43392 | 406 | 256 | 50 | 224 | 171 | 152-210 | 7.2 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
