| Prod Model: |
SV31LB |
| Torque Wrench: |
110-720000nm |
| Bolts Diameter: |
14-125mm |
| Nuts On The Side: |
22-180mm |
| Shaft Diameter: |
3/4~2 1/2inch |
| Max. Pressure: |
700bar |
| Weight: |
1.7-86.5 |
| Accuracy: |
+-3% |
| OEM: |
Yes |
| Dlelivery: |
Internation Express |
| Socket: |
Changeable |
| Type: |
Socket Wrench |
| Material: |
Alloy Steel |
| Standard: |
European Type |
| Surface Treatment: |
Chrome |
| Feature: |
Ordinary |
| Brand: |
Sov |
| Working Mode: |
Hydraulic |
Product Description
Square Drive Hydraulic Torque Wrench Made in Al-Ti AlloyProduct Features
1. Al-Ti alloy integrated machine has high strength, high tenacity with light weight.
2. The 360º×180º rotating oil connection has no limitation in used space and is convenient to be operated.
3. The actuating shaft is released by torque and can fast switch between screwing up and dismantling.
4. The hydraulic piston and power head have a small shape, compact structure and small operation radius.
5. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
6. The reactive force is on one straight line, which can decrease the inner torque abrasion.
7. The constant torque output provides the high precision for wrench in the whole working process.
8. The maintenance is simple and does not need the special tools.
9. The precise ratchet wheel is used in the inside of the wrench, with the precision up to ±3%.

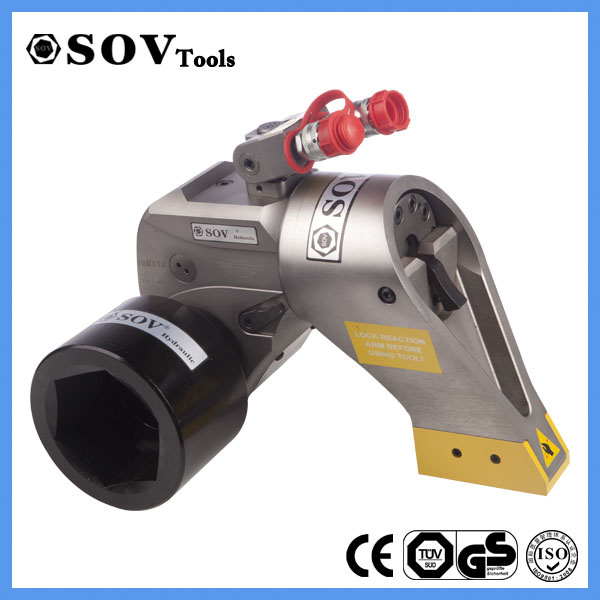

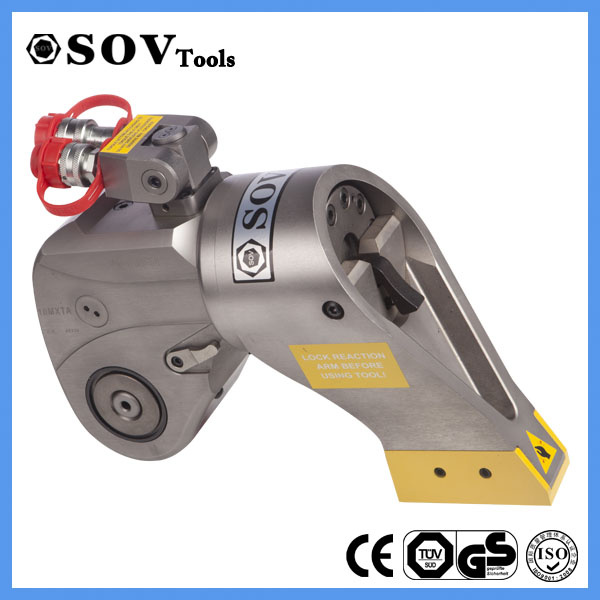

Product Picture
Model | Torque range(mm) | Bolt diameter
(mm) | Nut on the side(mm) | Drive shaft
(inch) | Max pressure(Bar) | Weight
(Kg) |
| SV31LB120 | 110-1200 | 14-30 | 22-46 | 3/4 |
700 | 1.7 |
| SV31LB180 | 180-1800 | 16-36 | 24-55 | 3/4 | 2.3 |
| SV31LB450 | 450-4510 | 22-48 | 34-75 | 1 | 4.8 |
| SV31LB750 | 755-7558 | 27-56 | 41-85 | 1-1/2 | 8.1 |
| SV31LB1000 | 1050-10550 | 30-64 | 46-95 | 1-1/2 | 11 |
| SV31LB1500 | 1550-15500 | 36-72 | 55-105 | 1-1/2 | 14.5 |
| SV31LB2500 | 2650-26500 | 42-90 | 65-110 | 2-1/2 | 26.5 |
| SV31LB3500 | 3500-35000 | 48-100 | 75-145 | 2-1/2 | 34.5 |
| SV31LB5000 | 4850-48500 | 64-120 | 95-170 | 2-1/2 | 48.2 |
| SV31LB7000 | 7200-72000 | 72-125 | 105-180 | 2-1/2 | 85.5 |

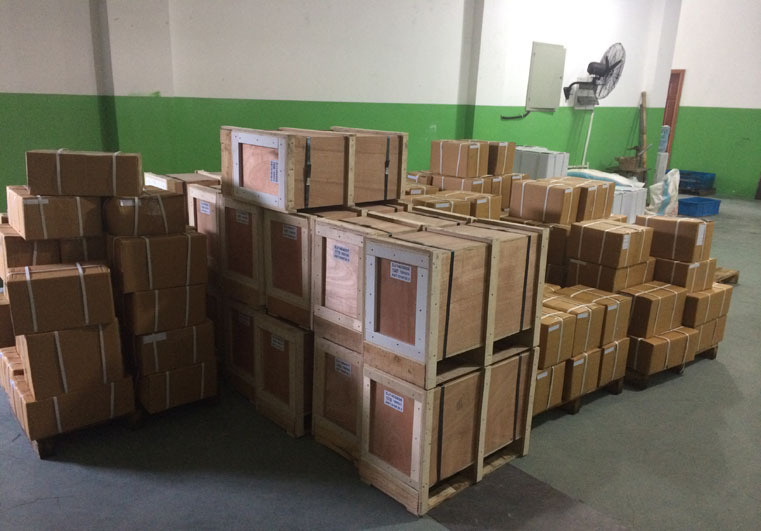

Packaging Details
1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days, according to the diatance.

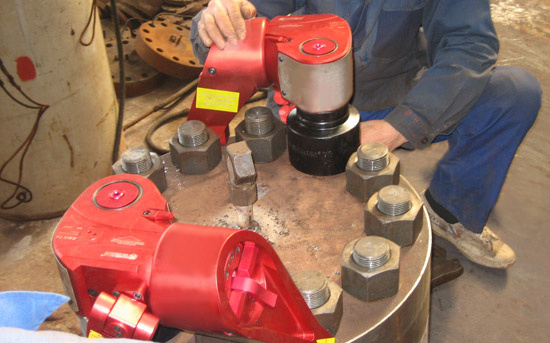

Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information

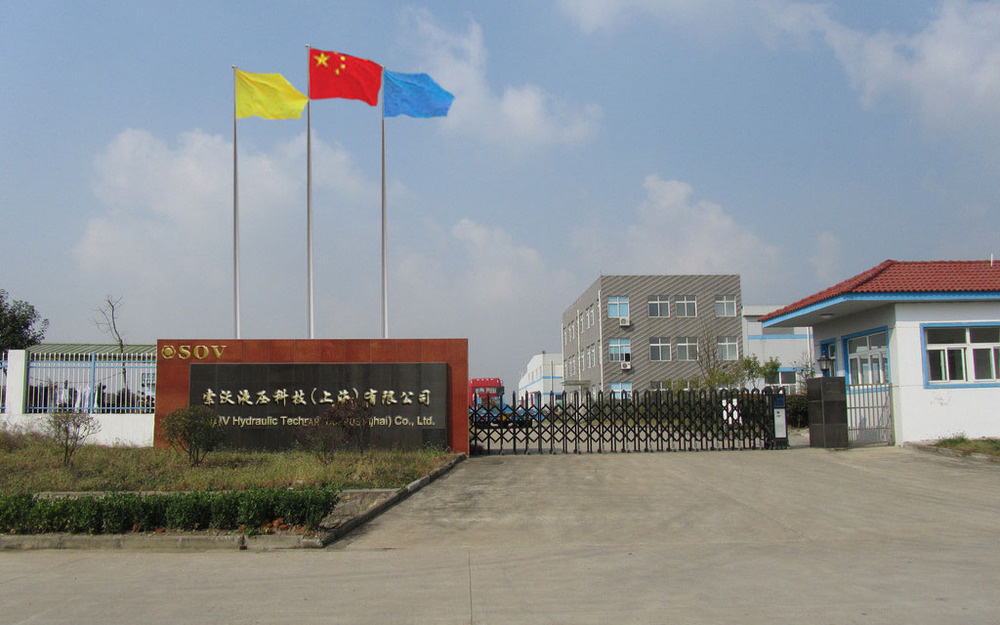

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Contact:
Cherry Chen I Manager I
Mobile: 0086 18918158136
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
