| Prod Model: |
water well drilling rig |
| Drilling Depth: |
10-130m |
| Maximum Open Hole Caliber: |
260mm |
| End Hole Caliber: |
75mm |
| Drill Rod Caliber: |
50mm |
| Drilling Angle: |
90~75 |
| Usage: |
Coal, Ore, Water Well |
| Power Type: |
Hydraulic |
Product Description
Description of Hydraulic Trailer Mounted Borehole Drilling Rig Machine Pricea. Keeping bracket of Hydraulic Trailer Mounted Borehole Drilling Rig Machine Price is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. Hydraulic Trailer Mounted Borehole Drilling Rig Machine Price is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
Parameter of Hydraulic Trailer Mounted Borehole Drilling Rig Machine Price| Drilling depth | 10-130m |
| Maximum open hole caliber | 260mm |
| End hole caliber | 75mm |
| Drill rod caliber | 50mm |
| Drilling angle | 90~75 |
| Drill weight (No include power) | 510 560kg |
| Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
| spindle speed | 142,285,570r/min |
| Spindle stroke | 450mm |
| Max.single line hoisting capacity | 960kg |
| Single line lifting speed | 0.41,0.82,1.64m/s |
| Tightrope caliber | 27m |

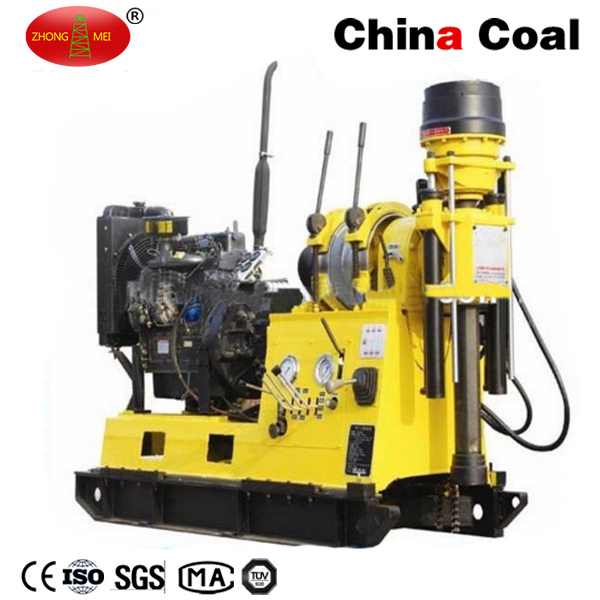

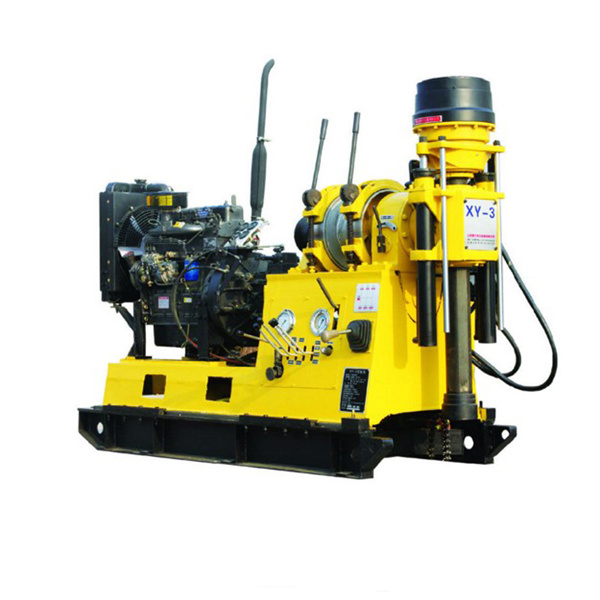

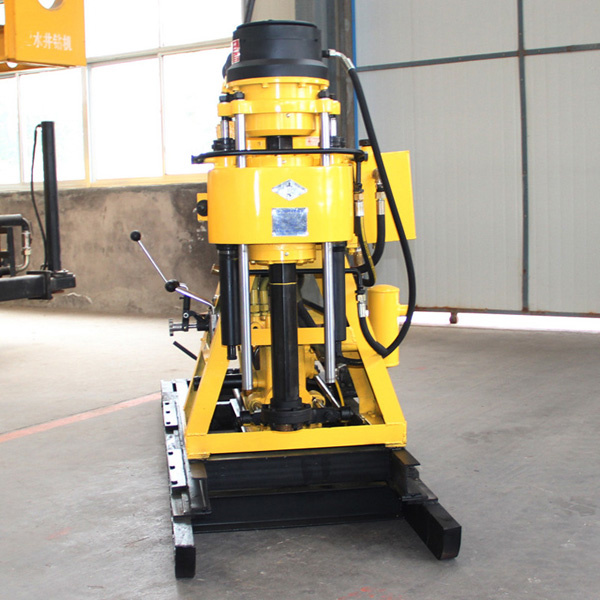

Images of Hydraulic Trailer Mounted Borehole Drilling Rig Machine Price
