(I. 500.22.00. A-T) Slewing Bearing Rotary Bearings for Filling Machines
| Price: |
US $ 500-1000/Set |
| Min Order: |
10/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
I. 500.22.00. A-T |
| Wgt.: |
38kg |
| Model No.: |
Slewing Bearing |
| Warranty: |
12 Months |
| Application: |
Excavetor, Crane |
| Delivery: |
15 Days |
| MOQ: |
10 |
| OEM: |
Available |
| Business Type: |
Factory |
| Rich Experience: |
10 Years Experience in Slewing Bearing |
| Separated: |
Unseparated |
Product Description

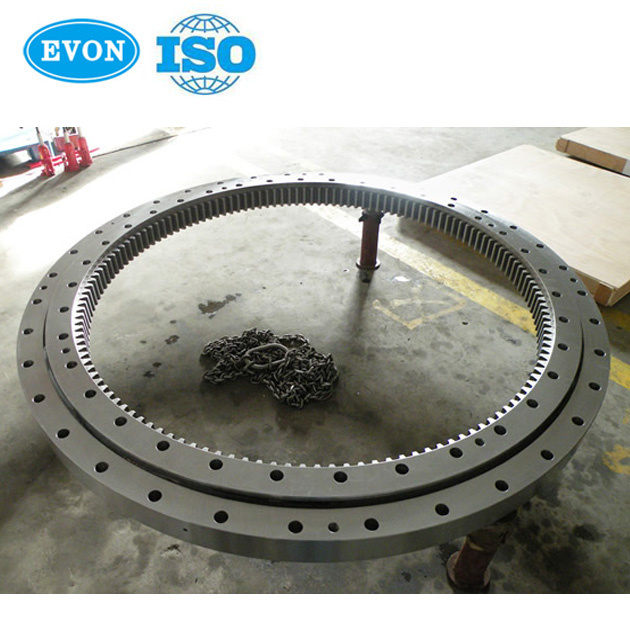

(I. 500.22.00. A-T) Slewing Bearing for Filling Machines

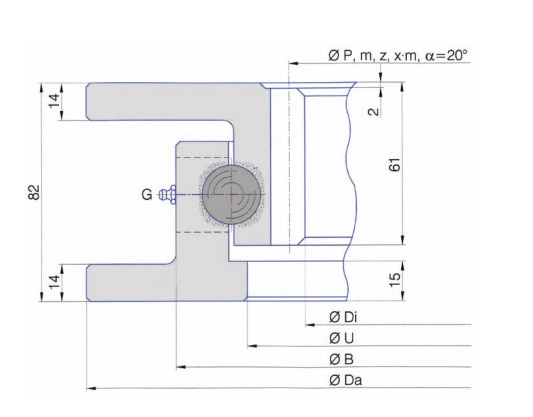

| Dimensions |
| Da(mm) | 499 |
| B(mm) | 431 |
| U(mm) | 379 |
| Di(mm) | 330 |
| Gear teeth |
| P(mm) | 340 |
| m | 5 |
| z(n°) | 68 |
| Tooth force |
| Fz nor(KN) | 11.30 |
| Fz max(KN) | 22.60 |
| Mass |
| weight(KG) | 38 |
NOTE:- Models in this brochure are standard,inner and outer diameter are free tolerance. If there are matching requirements of host-machine,please mark the size and precision on the contract or attached drawing.
- Provides design & solutions for OEM, each special, individual need.
I.500.22.00.A-T Bearing is composed of 2 seat-rings, and with the features of compact structure, light weight. The balls contact with the circular raceway at four points, via which the axial force, radial force and tilting moment can be born simultaneously.Mainly be used in slewing conveyors, welding arms and manipulators, small and medium cranes, excavators, and other engineering machines. Advantages of EVON bearing
1.Completely interchangeable with original
2.Low noise
3.Smooth & stable run
Packaging and placement

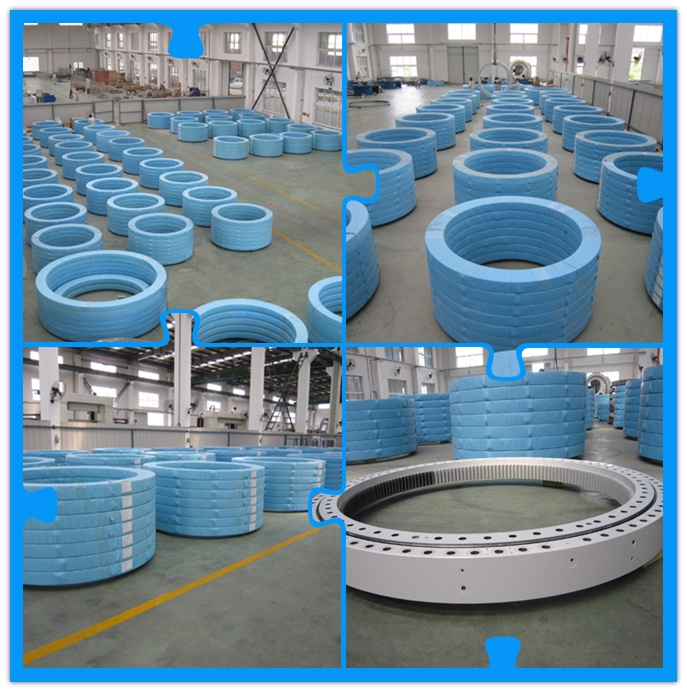

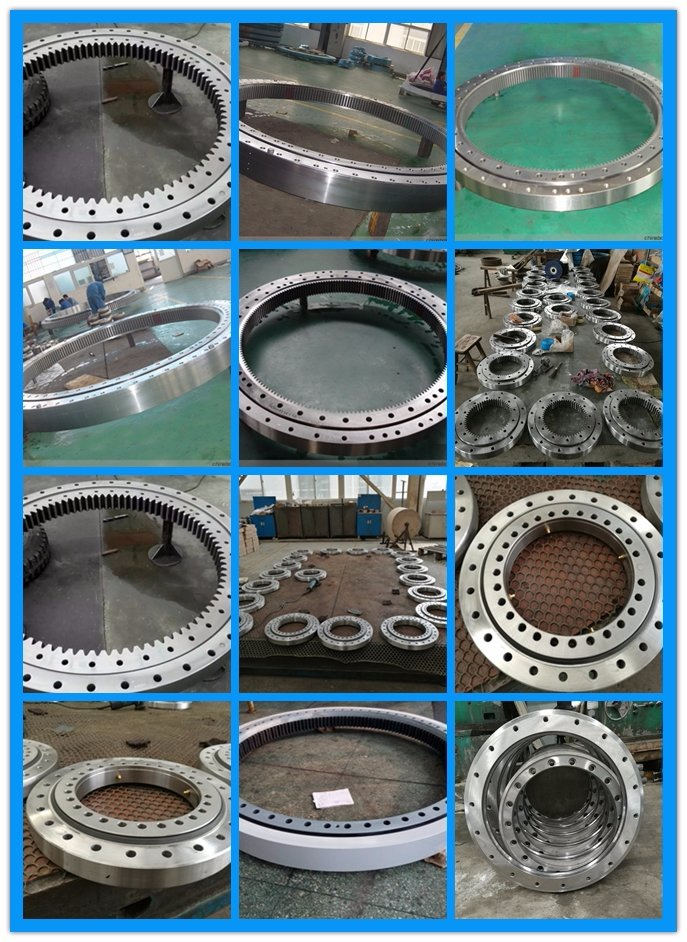

Factory scene shooting
Our strength:
1.Rich experience
Our technical department has 5 experienced engineers, who have been with our factory for more than 10 years.They are the core of our factory.
2.Pay attention to quality
We don't have so much stock compared to other factories.
The pursuit of quantity will not pour deep feelings on each bearing. We want to do a good job of each bearing that the customer needs, not a warehouse with a lot of stock.
3.Continue to challenge
We undertake OEM and continue to expand the scope of OEM bearings.
FAQ:
| Material | 50Mn ,42CrMo ,50MnT and so on. |
| Delivery time | 3-25 days . |
| MOQ: | 1 Pcs |
| Payment terms | T/T or LC |
| Certification | ISO 9001-2008 Quality System Certification |
| Cage | Stamping steel/Brass/Nylon/Ceramic |
| Application | Mine machine, port hoisting machine, port oil transfer equipment onshore and
offshore crane,excavator,concrete machine,
paper machine, plastic and rubber machine, weave machine, steel plant,
electronic power plant, wind power generator,
construction and industry machines or equipment. |
| Features | Slewing bearing is also called:Slewing ring bearing/Turnable bearing/Slewing ring etc.
Slewing Ring Bearings can accommodate axial, radial and moment loads acting single
or in combination and in any direction.
They are not mounted in a housing or on a shaft, but directly to a seating surface.
The inner and outer ring are supplied with mounting holes. Both rings may have
integral gears.
They are also referred to as slewing rings and tabletop bearings.
Slewing ring bearing can perform oscillating (slewing) as well as rotating movements.
They may be used without gears or with internal or external gear |
| Structure | - Single-row 4-point contact ball series
- Single-row crossed roller series
- Double-row ball series
- Three-row roller series
- Roller and ball combination series
- Quenching slewing ring bearing
- For Non-gear,External Gear,Internal Gear
|
| Service | OEM service, Customization service, Customers' Logo service; |
| Available Brand | OEM |
