Rks. 061.20.0644 Slewing Bearing/Slewing Ring

Rks. 061.20.0644 Slewing Bearing/Slewing Ring
Price: US $ 10-300/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: RKS. 061.20.0644
Outside Diameter: 10 - 6000 mm
Gear Options: External Gear
Seals Type: Rubber Sealed
Application: Excavator Accessories
Alloy: 42CrMo/50mn
Product Type: Single Row Slewing Ring
Certificate: ISO9001:2008
Hardness: 55HRC-62HRC
Service: 1year Guaranteen

Product Description






Product features:
Single row four point contact ball slewing bearings consist of a one-piece inner and outer ring and a set of spacers, protected by integral seals. The balls are inserted into the bearings via a hole in one of the two rings and are separated by polyamide spacers. After loading the ball set and spacers, the hole is closed with a plug that conforms to the race-way contour.

 The single row four-point contact ball slewing bearings is divided into three series:
  1. Light series four-point contact ball slewing bearings
  2. Medium size four-point contact ball slewing bearings
  3. Customized four-point contact ball slewing bearings

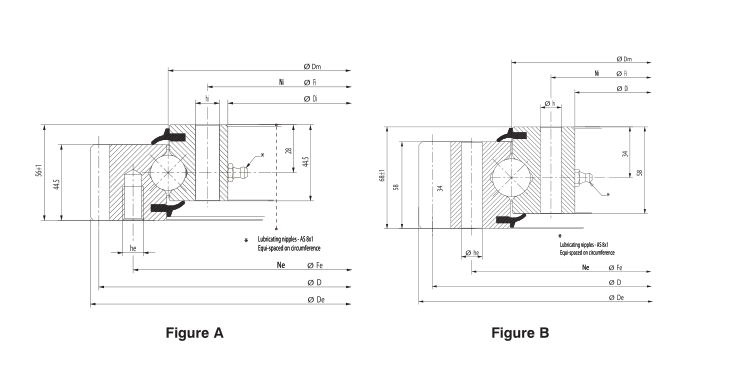

  RKS.061.20.0644 our point contact slewing bearing with external gear teeth

Advantage: RKS.061.20.0644  four point contact slewing bearing with external gear teeth, it features compact in design, light in weight, high precision and small fitting clearance. As the rollers are 1:1cross arranged, it is suitable for high precision mounting and capable to bear axial force, resultant moment and considerable large radial force. The four point contact slewing bearing find widely application for transporting, engineering machines as well as for military products.

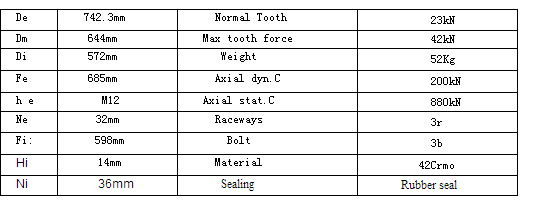

Technical parameters:





Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing;
3. crossed cylindrical roller slewing bearing;
4. three row cylindrical roller slewing bearing;
5. crossed tapered roller slewing bearing;
6. ball and roller combined slewing bearing.
With advanced  science and technology, the company develops and manufactures various kinds of  bearing products with inner diameter of over 100 mm according to the national standard,such as large-size and extra-large-size deep-groove ball bearings,angular contact ball bearings,single,double and four-row cylindrical roller bearings,spherical roller bearings,single,double and four-row tapered roller bearings,spherical ball bearings,thrust ball bearings,thrust  roller bearings,slewing bearings,and split bearings,the products are widely used in the fields all over the country, such as port,machine tools,mining,metallurgy,power industry,medical,heavy machinery,coal machinery,cement machinery,petroleum exploration as well as national defence industry.With the right to handle the export.
