IGBT Air Inverter Plasma Cutter for CNC Plasma Cutting Machine Cutter

Prod Model:	LG60/100/130/200/400
OEM:	Yes
Color:	Blue or Customize
Cutting Thickness:	0.8mm-80mm
Voltage:	3 Phase 380V 50Hz
Warranty:	1 Year
Duty Cycle:	60% to 100%
Current:	30-400A
Cutting Torch Cooling Method:	Air Cooling or Water Cooling
Standard Torch Packed With Machine:	Hand Torch with 5m Cable
Machinic Torch:	for Option
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Linear Control
Numerical Control:	CNC/MNC
Control Method:	Automatic / Manual
Processing Precision:	±0.5mm
Performance Classification:	Plasma Cutting Machine
Certification:	CCC

Product Description

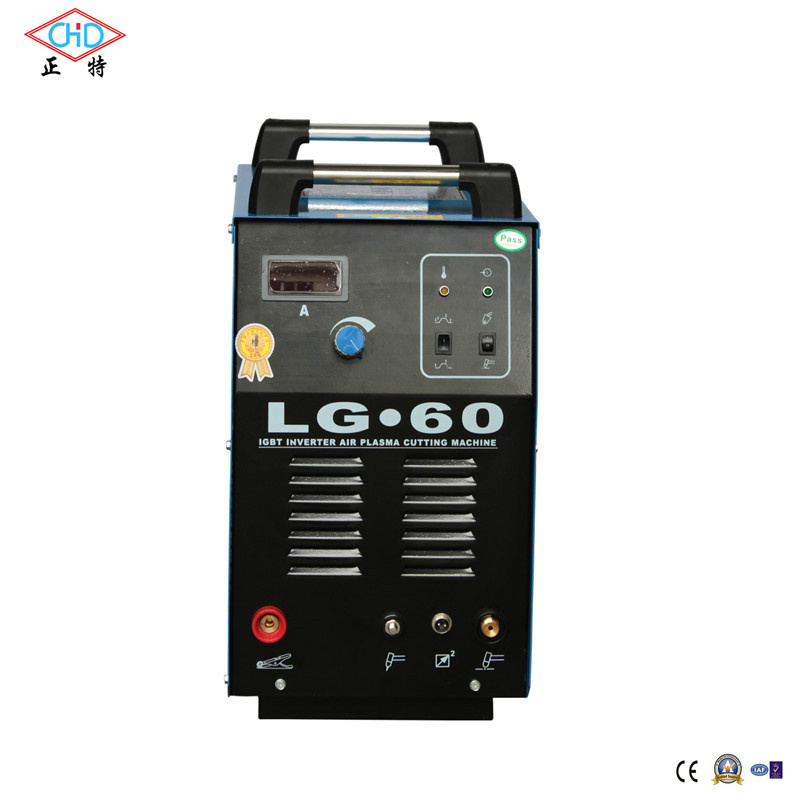

 LG Plasma Cutter Series


Features of our LG Plasma Cutter Series
1	Available With CNC cutting system to fit the application
2	Small volume,light weight,energy saving,60%(100%)high duty cycle
3	The cutting current can be preset accurately
4	Fast high frequency arc starting enable the reduction of interference to CNC system
5	With stable plasma arc and high speed enable smooth incision and little deformation
6	Gas cut-off delay function effectively protects the torch



ITEM	LG-60	LG-100	LG-130	LG-200	LG-400
Input Voltages	3 Phase, 380V 50/60 Hz
Rated Input Current(KVA)	6.8	14.5	20	36	100
Output Current(A)	30-60	30-100	30-130	30-200	30-400
Duty Cycle	60%	60%	60%	60%	60%
Max. Cutting Thickness(mm)	20	30	35	65	80
Optimal Cutting Thickness(mm)	0.3-10	0.3-22	0.3-25	1-45	1-50
Gas Pressure(Mpa)	0.3-0.5	0.4-0.6			0.45-0.6
Cutting Torch Cooling Mode	Air Cooling			Air Cooling,Water Cooling
Dimension(H*W*L,mm)	510*280*610	600*325*740	710*380*790	800*360*880	1260*540*830
Weight(kg)	35	53	75	82	170




Attachment of Plasma Cutter

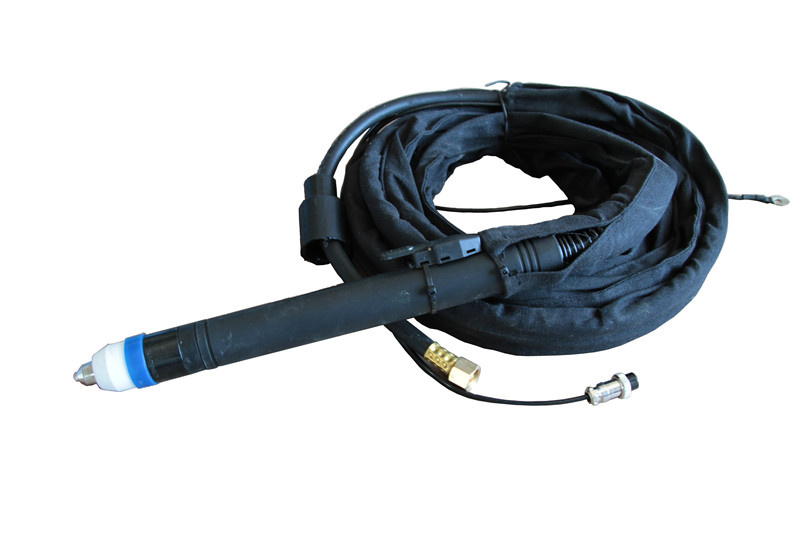

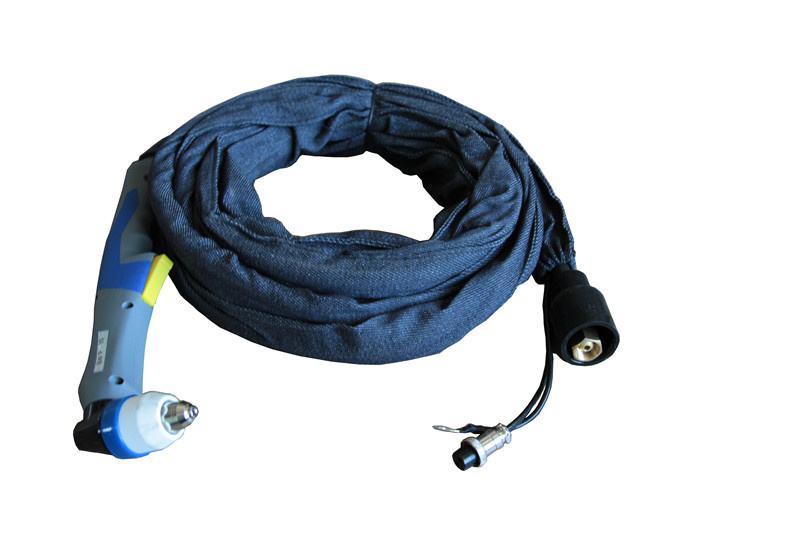

Hand Plasma Cutter Torch *1                           Machinic Plasma Cutter Torch (for option)

Earth Line*1                                                        Shiled*3                   electrode*3                   tip*3




Features of Plasma Cutter Machine

Advantages

1. Wide cutting range, can cut all kind of sheet metal;
2. Cutting speed up to 10m/min, high efficiency.
3. Cutting accuracy is higher than flame cutting, underwater cutting without distortion, precision plasma cutting with more accuracy.
4. Underwater cutting of plasma cutting machine can eliminate the noise, dust, harmful gases and arc generated by cutting, effectively improve the workplace environment.
5. With the high-power plasma cutting technology matures, cutting thickness can reach more than 150mm, makes the CNC plasma cutting machine range has been broadened as well.

Disadvantage

1. It's difficult to cut steel with thickness more than 20mm, require high plasma power, cost of high plasma power is high as well.  (Our high plasma power-- LG400)

Link to LG400:
http://chdcutting.en.made-in-china.com/product/eXtnvYKMSwVF/China-Portable-CNC-Plasma-Cutting-Machine-LG-400.html



FAQ:

1.  Q: Certificate
     A: ISO, SGS, CCC
2.  Q: Cutting Thickness Range of plasma cutter ?
    A: 0.3-90 MM
3. Q:Optimal Cutting Thickness Range of plasma cutter?
    A: 0.3-55 MM
4. Q:Cutting material?
    A: All kind of sheet metal
5. Q:Lead Time, Delivery Time
    A: 7 working days
6. Q:Warranty
    A: 1 Year
7. Q: After service
    A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
8. Q:Portable or not?
    A: Yes

Or you can tell me the following info, we'll suggest you the very item you need.

1. Material you'll cut.
2. Thickness of Material.
3. Cutting range (Length, width) you required.
4. Handheld torch or automated machine you required?
