| Prod Model: |
HCZ series |
| Drilling Diameter: |
300-3000mm |
| Drilling Depth: |
10-300m |
| Type: |
Drill |
Product Description

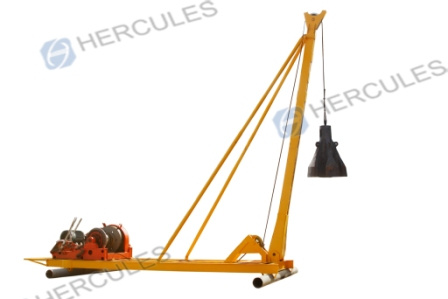

Impact drilling machine Concussive drills 3000mm Percussion Drills Impact drilling machine 1500mm
Percussion Drilling Rig, borehole drilling, borehole drill, blast hole drilling, borehole drilling equipment, impact drilling rig
Specifications of percussion drilling rig:
1. Strong lifting load
2. Large diameter, from 300mm to 2000mm
3. Hammer drill & high efficiency
4. Deeper depth, till to 300m(when diameter is 400-600mm)
5. Convenience installation and maintenance
6. Long service life
Features of percussion drilling rig:
1, percussion type drilling rig is an important drilling equipment in foundation construction for pile and borehole. It can be used for various geological conditions, especially to pebble bed and
Rock stratum.
2, percussion type drilling rig is is more applicable than the other kinds of drilling machinery. Meanwhile, after the hole is formed, there will be a dense dense layer of soil around the hole wall, which is very useful for stabilizing the hold wall and improving the carrying capacity of the pile foundation.
3, this kind of drilling rig is very popular if the marker currently.
The percussion drilling rig use the crank-link mechanism to change the power's gyration motion into alternating motion, through the steel rope to drive the hammer bit to do up-and-down motion. With the impact effect of the steel wire, the hammer will free failing to break the soil, sand, pebble or rock into pieces and then use the slag tube or mud pump to clean the slag out from the hole.
| Model | HCZ-H1500 | Description | Percussion Drilling rig |
| Drilling depth | 100m | Power | 75KVA |
| Drilling diameter | 1500mm | Winch power | JZ-8T |
| Motor power | 55kw | Hoisting speed | 12.7m/min |
| Drilling type | manual mode | Dimension | 8.5× 2.5× 7.2m |
| Tube diameter | 377mm | Weight | 12T |
Xuzhou Hercules Machine Manufacture Co., Ltd. is ISO9001 quality management system certification enterprise, the certified supplier by SGS, the high-tech private enterprise in Jiangsu province, Jiangsu province AAA grade Credit enterprise; Jiangsu province AAA grade Quality, Integrity Services enterprise and the company also was "Xuzhou Piling Machinery (Hercules) Engineering Research Centers".
Hercules piling machinery was awarded the title of Jiangsu High-tech Products. Our company has 20 state grade patents and new practical patents. Our machine had become the new benchmark for quality piling machinery!
Our main products include Long Auger Drilling Rigs (drilling diameter: Φ 300-Φ 1500mm, drilling Depth: 10m-35m), Diesel Hammer Pile Drivers (4T-10T), Rail Type and Electric Crawler Wick Drain Drivers, Percussion Drilling Rigs (drilling diameter: Φ 800-Φ 3000mm). Especially the machine Multi-function Pile Drivers integrated with expansion pile, compaction pile, gravel pile, pilling rig and prefabricated pipe pile, which favored by the users and lead the sale. We can also make the machinery and the components according to the customers' Requirement.
With the characters of first-class R & D team, controlling the overall design, pursuit of the details, continuously improving according to the users' Experience and lesson in practical engineering, especially the strengthening processing for the key parts, our machines ensure to afford higher-intensity operations and meet user higher efficient construction requirements.
Hercules always believes that the interests of customers are more than our own interests which is also the standard for you to trust us. Hercules treasures your trust and confidence and we always begin from maintaining your construction efficiency.
