| Prod Model: |
3T to 25T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pile Capacity: |
3t to 25t |
| Type: |
Hydraulic Hammer |
| Power Source: |
Hydraulic |
| Motor Power: |
No |
Product Description

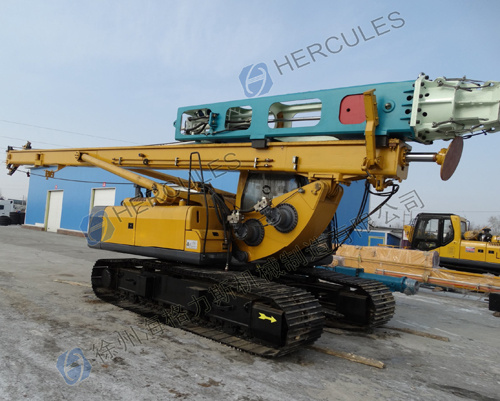

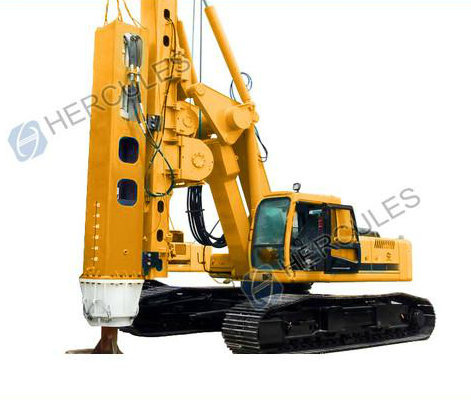

Hydraulic pile hammer, pile hammer equipment, pile driver hammer
Hydraulic pile hammer has a distinct advantage which is low noise and no pollution. This pile hammer equipment adopts advanced compact structure hydraulic system which could meets the requirement of construction from all kinds of materials and all kinds of complicated geological conditions. The pile driver hammer can drive precast concrete piles, steel pipe piles, straight piles and marine piling. And hydraulic hammer is convenient for operating.
The hammer core weight is from 3T to 25T.
Thanks for visiting this website! Xuzhou Hercules Machine Manufacture Co., Ltd. is specialized in manufacturing piling machinery and their components. So, if you have interest about our company, you can click the links to the other web pages to get more information.
Technical data of Hydraulic Impact Hammer
| Model | Unit | HHP3 | HHP5 | HHP8 | HHP14 | HHP20 | HHP25 | HHP30 | HHP35 |
| Max strike energy | Kn.m | 36 | 60 | 120 | 210 | 300 | 375 | 450 | 525 |
| Max stroke of hammer | mm | 1200 | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1500 |
Strike frequency
(max/min) | BPM | 90/36 | 90/36 | 90/36 | 90/36 | 90/30 | 90/30 | 90/30 | 90/28 |
| Hammer core weight | kg | 3000 | 5000 | 8000 | 14000 | 20000 | 25000 | 30000 | 35000 |
| Lifting hydraulic cylinder | | Single lifing hydraulic cylinder | Double lifting hydraulic cylinder |
Hammer height
(without pile cap) | mm | 4900 | 5075 | 6750 | 7250 | 7960 | 9200 | 9105 | 10500 |
| Horizontal width of hammer | mm | 800 | 890 | 1035 | 1400 | 1350 | 1450 | 1450 | 1550 |
| Vertical height of hammer | mm | 1050 | 1100 | 1340 | 1450 | 1610 | 1750 | 1850 | 1850 |
Distance between center of
hammer and guides | mm | 500 | 670 | 700 | 845 | 875 | 970 | 1020 | 1050 |
Distance between
center of guides | mm | 330/600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Hammer weight | kg | 4500 | 7200 | 12100 | 21600 | 29400 | 35000 | 45100 | 50500 |
| Landing gear weight | kg | | 390 | 595 | 595 | 610 | 1060 | 1560 | 1650 |
Xuzhou Hercules Machine Manufacture Co., Ltd. is ISO9001 quality management system certification enterprise, the certified supplier by SGS, the high-tech private enterprise in Jiangsu province, Jiangsu province AAA grade Credit enterprise; Jiangsu province AAA grade Quality, Integrity Services enterprise and the company also was "Xuzhou Piling Machinery (Hercules) Engineering Research Centers".
Hercules piling machinery was awarded the title of Jiangsu High-tech Products. Our company has 20 state grade patents and new practical patents. Our machine had become the new benchmark for quality piling machinery!
Our main products include Long Auger Drilling Rigs (drilling diameter: Φ 300-Φ 1500mm, drilling Depth: 10m-35m), Diesel Hammer Pile Drivers (4T-10T), Rail Type and Electric Crawler Wick Drain Drivers, Percussion Drilling Rigs (drilling diameter: Φ 800-Φ 3000mm). Especially the machine Multi-function Pile Drivers integrated with expansion pile, compaction pile, gravel pile, pilling rig and prefabricated pipe pile, which favored by the users and lead the sale. We can also make the machinery and the components according to the customers' Requirement.
