| Prod Model: |
Q-12B & Q-12P(Active) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Two-Way,Full Range System |
| Nominal Impedance: |
8 Ohm |
| Input Connectors: |
2×nl4MP Speakon |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Application: |
Home |
| Certification: |
MET |
| THD: |
<0.005% |
Product Description

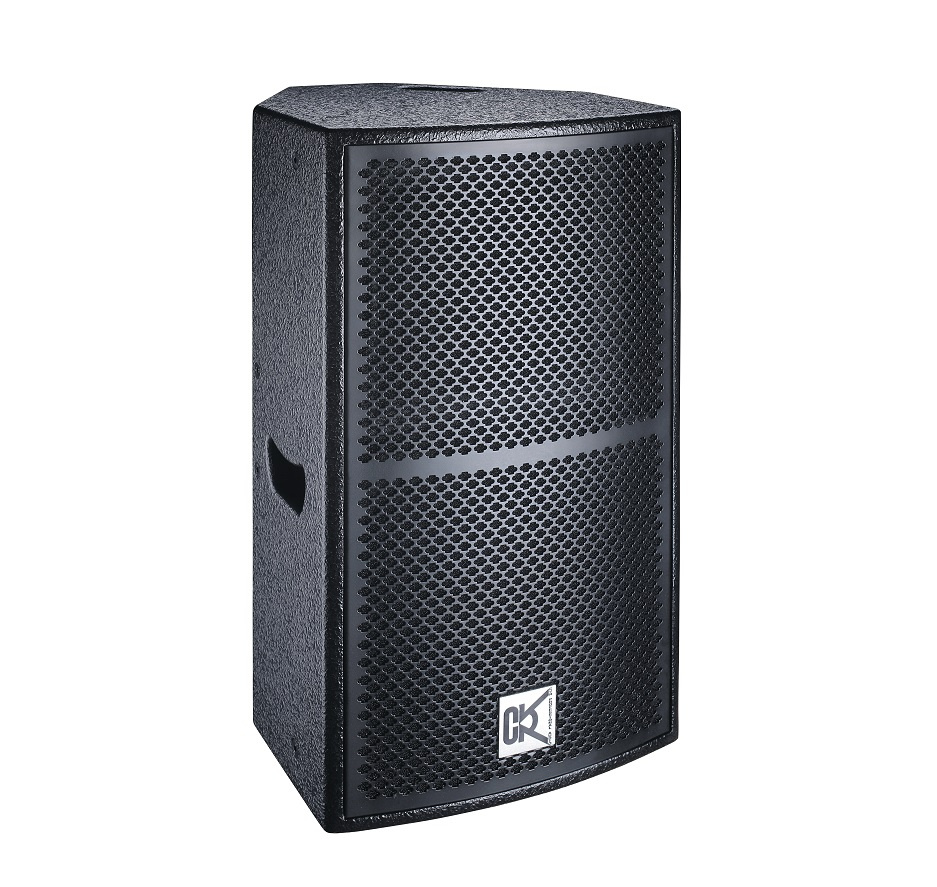

Q-12 is a 2-way , full range loudspeaker system. Its features include one high efficient 12" woofer and one 1.75" titanium compression driver housed in a compact plywood enclosure,combining smooth dynamic full frequency performance with high power driver units. It is particularly suitable for clubs, heaters, halls, discos, conferences, etc.
| Model | Q-12B & Q-12P(Active) |
| Type | Two-way,full range system |
| Frequency Response | 55Hz-20kHz±3dB |
| Power handling | 350W(RMS)700W(PEAK) |
| Power amp | 600W/8ohm (Q-12P) |
| Amplifier type | Switching power amp, class |
| | D circuit |
| Sensitivity | 97dB(1W@1M) |
| [email protected] | 122dB(PEAK/1M) |
| LF section | 12"(310mm) woofer 75mm |
| | (3in)coil |
| HF section | 1.75"compression driver with |
| | 44mm titanium diaphragm |
| Nominal impedance | 8 ohm |
| Output section | 2-channel |
| Dispersion pattern | 80º H×50º V |
| Surface finish | Black paint |
| Speaker cables | 1(+)1(-) |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 360×635×376mm(W×H×D) |
| Package dimensions | 430×705×440mm/0.13cbm |
| Enclosure | Plywood |
| Net weight | 22.5kg/23.5kg(Q-12P) |
| Gross weight | 25.5kg/26.5kg(Q-12P) |
Features
--Detachable front dolly panel
--High fidelity,durability and light weight
--Three-way large format line array module
--15loudspeaker with neodymium magnet
--3loudspeakers with neodymium magnetic ine array
--Captive figging system intergrated in the cabinet design with good quality birch plywood
Our Unique Advantage
--Small order accept
--Green Paint,low pollution
--Flat aluminum wire for the woofer
--All are textured,durable birch plywood
--Plug is Neutrik, endure repeatedly plug
--Import loudspeaker cone, Good elasticity for woofer
