| Price: | US $ 10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | J41H/J541H/J41W/J541W/J41Y/J541Y |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging Details: | Plywood or as The Customers' Requirement. |
| Delivery Detail: | Depend on The Quantity |
| OEM: | Yes |
| Certificate: | API6d Ce ISO Ts |
| Structure: | Through Way Globe Valve |
| Sealing Form: | Gland Packings Globe Valve |
| Stem Thread Position: | Outside Screw Stem Globe Valve |
| Standard: | GB |
| Application: | Plug Disc Type Globe Valve |

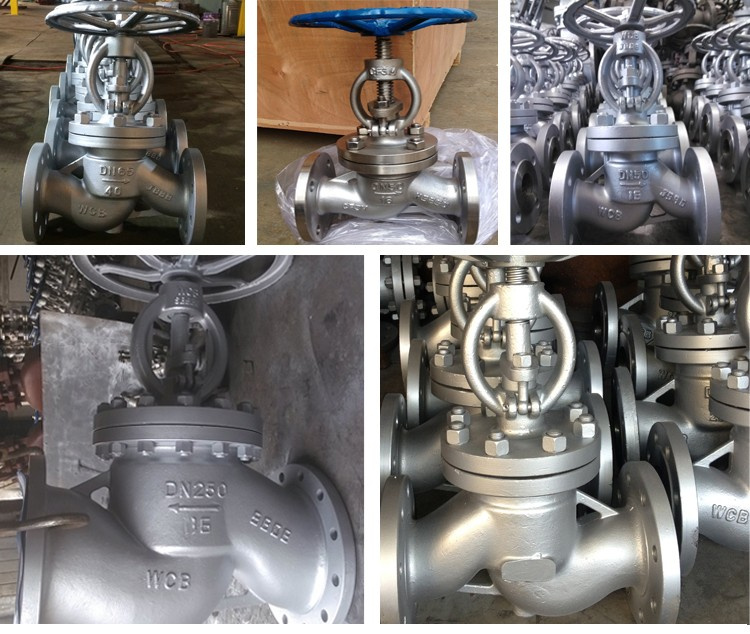

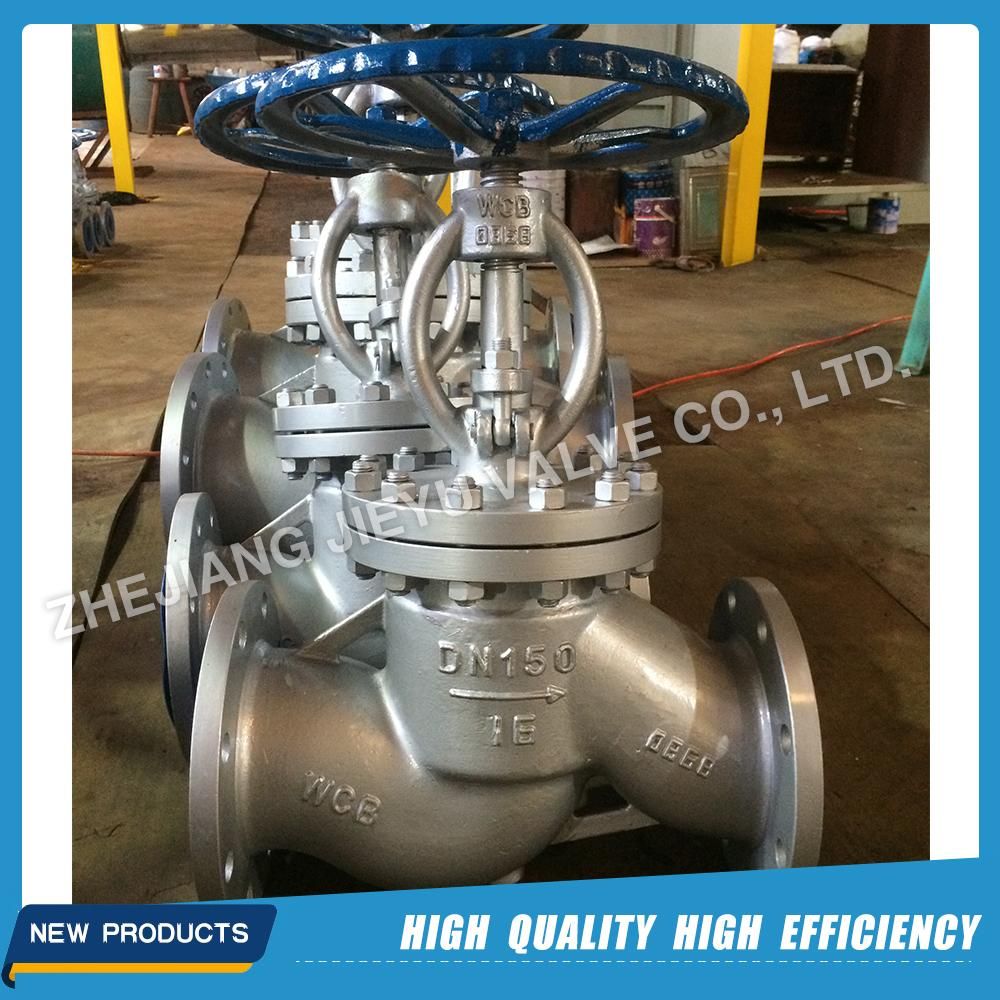

Industrial DIN Wcb Flanged Globe Valve
Specification:
Size: DN15-DN1200
Model:J40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.1156 (LCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C).Etc
Type: Rising Stem Flange end RF/FTJ/FM
Operation: Handwheel, gear worm ,Electric operated
Standard:
Design & Manufacture Std.: DIN3352,BS 1873,Etc
Face to Face Std.: DIN 3202, BS2080 F1, F2,Etc
End Connection Std.: DIN2543-2548,Etc

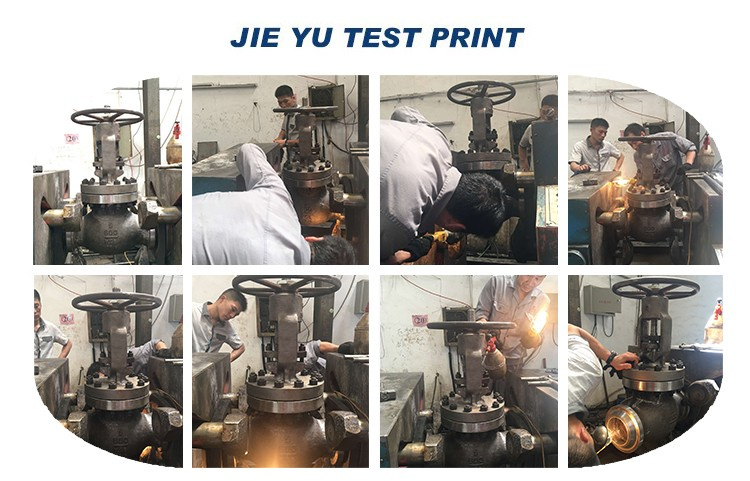

Test Standard: ISO5208, BS 6755 DIN 3230,Etc
| NO. | Part Name | Material | |
| 01 | Body | ASTM A216WCB | GS-C25,CF8,CF8M |
| 02 | Seat Ring | ASTM A216+13Cr | |
| 03 | Disc | ASTM A105+13Cr | A105,SS304,SS316 |
| 04 | Split Ring | C.S | |
| 05 | Disc Cover | C.S | 25#,SS304,SS316 |
| 06 | Stem | ASTM A182 F6a | 13Cr,SS304,SS316 |
| 07 | Gasket | 304+Graphite | 304+Graphite |
| 08 | Bonnet | ASTM A216WCB | A105,SS304,SS316 |
| 09 | Stud | ASTM A193 B7 | |
| 10 | Nut | ASTM A194 2H | |
| 11 | Backseat | ASTM A216+13Cr | |
| 12 | Packing | Graphite | Graphite |
| 13 | Bushing | ASTM A216 F6a | |
| 14 | Gland | ASTM A216WCB | Cu Alloy |
| 15 | Pin | C.S | 13Cr,SS304,SS316 |
| 16 | Gland Bolt | ASTM A193 B7 | |
| 17 | Gland Nut | ASTM A194 2H | |
| 18 | Stem Nut | ZcuAl10Fe3 | |
| 19 | Screw | C.S | |
| 20 | Handwheel | ASTM A395 | C.S |
| 21 | H.W. Lock Nut | C.S | 25# |
Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
