| Price: | US $ 20000-30000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | KR-XY3 |
|---|---|
| Model: | Kr-Xy3 Pipe CNC Cutting Machine |
| Cutting Range: | 6m 9m 12m (Customized) |
| Control System: | Advantech Industrial Computer |
| Plasma Torch Anti-Collision System: | Yes |
| Driving Mode: | Servo |
| Software: | Kasry Pipe Apply Software |

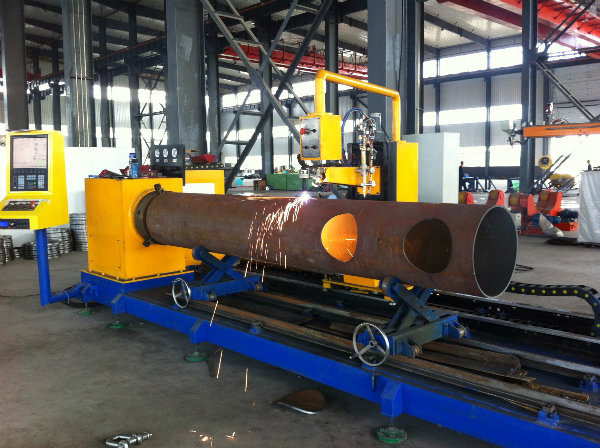

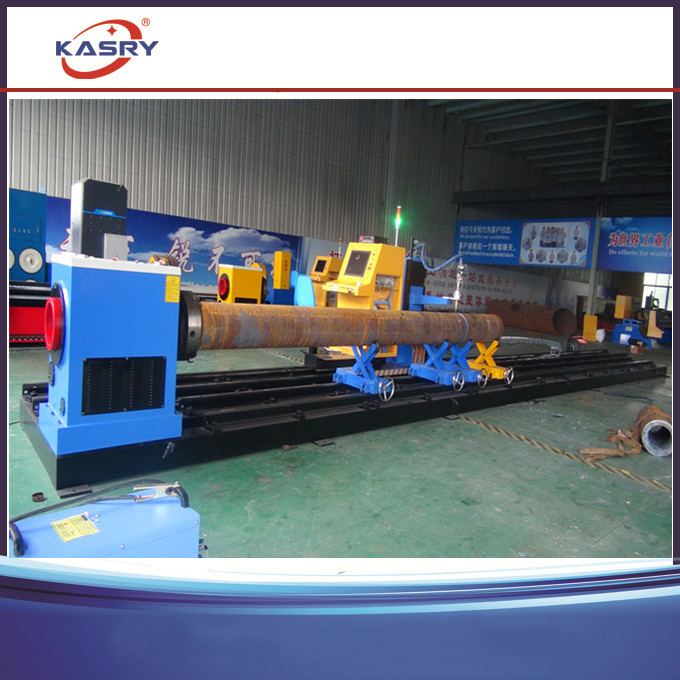

KASRY KR-XY3 Pipe CNC cutting machine
Brief introduction

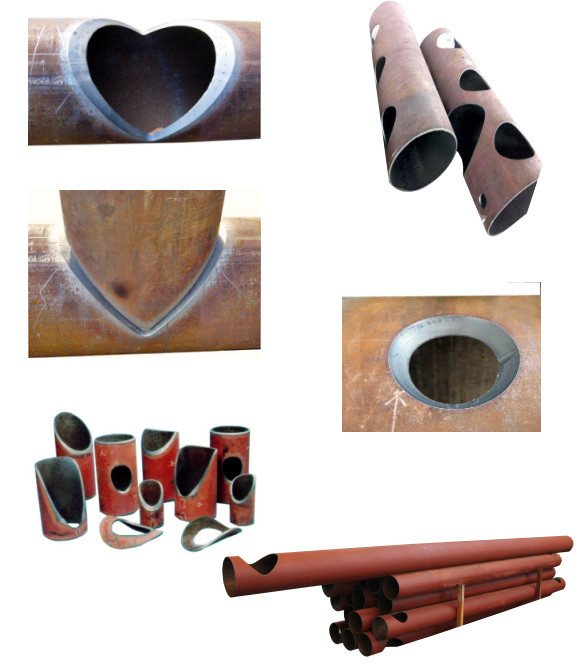

Pipe CNC cutting machine for round pipe. It can cut carbon steel, stainless steel and other material. It is widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.
Features
1,Adopt welding platform, heavy rail and improve the overall bearing weight, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.
2,Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, oversized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs
3,Taiwan's Advantech industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness By KASRY professional pipe cutting applications for a seamless connection.
Technical parameters and moving axis
| Mode | KR-XY3 Pipe CNC cutting machine |
| Cutting range | 6m 9m 12m( customized ) |
| Machine size | 7800*1800*1650mm( customized ) |
| Cutting method | Flame/plasma |
| Flame cutting speed | 20-700mm/min |
| Plasma cutting speed | Depending on the plasma power |
| Control system | Advantech industrial computer |
| Plasma cutting thickness | Depending on the plasma power |
| Flame cutting thickness | 6-160mm |
| Plasma torch anti-collision system | yes |
| Driving mode | servo |
| Software | KASRY pipe apply software |
| Nesting software | STARCAM/FASTCAM |
| Working condition | |
| Working pressure of compressed gas | Above 7mpa |
| Required gas flow of plasma | 4500L/H |
| Working environment | Ventilation, no concussion |
| Power wattage | 5KW |
| Types of gas | Acetylene propane |
| Moving axis | Choosing axis | Rang of activities |
| X axis: | Pipe rotation axis | 360° free rotation |
| Y Axis: | The torch moving along the pipe horizontal axis | Maximum stroke (customer cut pipe length ) |
| Z axis: | The rise and fall perpendicular the pipe axis | The axis is not involved in the linkage. Max stroke is half of the largest diameter adding 20mm |
Why choose us
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile
Contact information
KASRY sales manager
named: Tom Zhou
mob: +8618560027001
Welcome your join us , we are sure to be your best supplier !
