Prod Model: |
KR-XY5 |
Model: |
Kr-Xy5 Round Pipe CNC Cutting Machine |
Cutting Range: |
6m 9m 12m (Customized) |
Control System: |
Advantech Industrial Computer |
Driving Mode: |
Servo |
Software: |
Kasry Pipe Apply Software |
Product Description

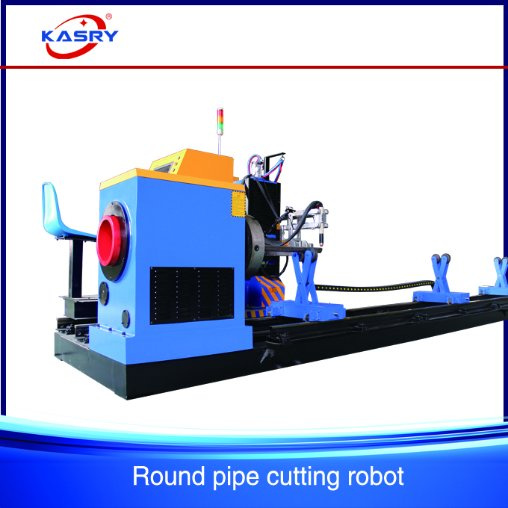

KR-XY5 Round pipe CNC cutting machine
Brief introduction
KR-XY5 can cut and bevel carbon steel, stainless steel ,copper ,iron ,etc. widely used in oil and gas pipelines, steel structure, roller coaster, marine engineering, bridge truss, steel building construction,etc.
Features:
1.AdvantechIPC510 control system,automatic feeding.
2.CNC control software and programming software independent
3.Simple operation, easy programming,good compatibility.
Compatible with TEKLA X-steel,Auto CAD.Shipbuilding industry softwareMicroSAS,STCAD,3D3S
4.Support elbow straight cut,small angle support,torsion angle support,meet AWS/API welding standard.
5.Automatic cutting speed:Automatic speed adjustment, in the process according to the thickness of the
actual effective cutting bevel angle generated automatically transform cutting speed, cutting plane functions as Treasure System
6. The system promised to be update free for whole life !
Technical parameters and moving axis:
Moving axis | Choosing axis | Range of activities |
X axis: | Pipe three jaw chuck rotation axis | 360° free rotation |
Y Axis: | The torch moving along the pipe horizontal axis | Maximum stroke (customer cut pipe length ) |
A axis: | The torch along the pipe plane swing axis | ±45° |
B axis: | The torch along the pipe radial plane swing axis | ±45° |
Z axis: | The rise and fall along the tube axis | The axis doesn't participate in the joint Max stroke is the half largest diameter +20mm |
Mode | KR-XY5 Round pipe CNC cutting machine |
Effect cutting length | 12m |
Cutting diameter | 40mm-300mm |
Cutting method | Plasma,Flame |
Flame cutting thickness | 6-60mm |
Plasma cutting thickness | Plasma reservation |
Requirements of the workpiece ovality | ≤1% |
Flame cutting speed | 20-700mm/min |
Plasma cutting speed | Plasma reservation |
Moving speed | 10~6000 mm/min |
Torch axial/radial swing angle | α=±45° β=±45° |
Control system | Advantech industrial computer |
Plasma torch anti-collision system | yes |
Plasma power | Plasma reservation |
Driving mode | Servo |
Software | KASRY pipe apply software |
THC(torch height controller) | Yes |
Interface | English and Chinese |
Working condition |
Working pressure of compressed gas | Above 7mpa |
Required gas flow of plasma | 4500L/H |
Working environment | Ventilation, no concussion |
Power wattage | 5KW |
Types of gas | Acetylene propane |
Product name | pipe cutting and beveling machine pipe beveling machine beveling machine steel tube beveling machine Pipe Bevel Cutting Machine |
Name | Description |
Head stock box | Automatic feeding |
Chuck | Tree jaw chuck,360°free rotation |
IPC (Industrial Personal Computer) | Advantech industrial computer programming can be directly on the machine. Using menu type programming to select input cutting parameter , such as outer diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software |
System | Kasry R&D MADE ! This system promised to be update free for whole life ! Simple operation, easy programming,good compatibility,support steel TEKLA,AUTO CAD,STCAD,3D3S,etc. Its feature function is support elbow straight cut,small angle support,torsion angle support,meet AWS/API international welding standard. |
Rail | Heavy rail,running stable and smoothly |
Operation platform | Control the whole cutting process |
Torch | use very good feedback all experienced ,long lifespan |
Samples:
Factory Visit:
Our Services1.One year warranty,free maintenance throughout service time..
2.free technical support through Email and telephone.
3.Training and installation on-site if required.
Why choose us
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile
Contact information
KASRY sales manager
named: Tom Zhou
mob: +8618560027001
Welcome your join us , we are sure to be your best supplier
