| Prod Model: |
22*108mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shank Size: |
22*108mm |
| Diameter: |
29-40mm |
| Carbide: |
Steel |
| Type: |
Chisel or Cross |
| Process: |
Forging |
| Use: |
Stone Quarrying |
| Length: |
400-3200mm |
Product Description
General Introduction:
Integral Drill Steels usually have forged collar, and are fixed length with a shank at one end and a bit at the other. This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. They are able to drill to a depth equivalent to their effective length. The bit may consist of a single chisel shaped tungsten carbide insert or four such inserts. Holes are typically drilled in 0.4m increments to accommodate the air-leg feed length. To drill deep holes (up to 2.0m), the rods are designed to be used in a series where the length of any rod used is longer and the head size is slightly smaller than the one used just before it in the sequence. To do this, a series of rods must be produced so that the bit diameter is reduced for each increase in length of rod to prevent jamming of the bit in the hole.
Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.
Product features:
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.

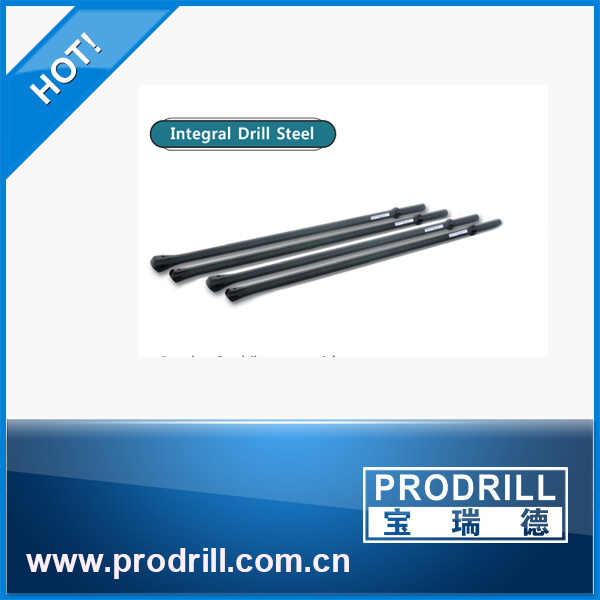

Integral Drill Steel |
| Shank sizes available 19X83mm, 19X108mm, 22X83mm, 22X108mm. |
|
| Series 21 & 22 |
| Series 21 | Length in mm | Diameter in mm | Part number |
| 19X108 | 400 | 29 | 0429-20 |
| 19X108 | 800 | 28 | 0828-20 |
| 19X108 | 1200 | 27 | 1227-20 |
| 19X108 | 1600 | 27 | 1627-20 |
| 19X108 | 2400 | 26 | 2426-20 |
| 19X108 | 3200 | 25 | 3225-20 |
| Series 22 | Length in mm | Diameter in mm | Part number |
| 19x108 | 400 | 26 | 0426-20 |
| 19X108 | 800 | 25 | 0825-20 |
| 19X108 | 1200 | 24 | 1224-20 |
| Shank 22x108 | Length in mm | Diameter in mm | Part number |
| 22X108 | 400 | 29 | 0426-20 |
| 22X108 | 800 | 28 | 0828-20 |
| 22X108 | 1200 | 27 | 1227-20 |
| 22X108 | 1600 | 27 | 1627-20 |
| 22X108 | 2400 | 26 | 2426-20 |
| 22X108 | 3200 | 25 | 3225-20 |
| 22X108 | 400 | 26 | 0426-20 |
| 22X108 | 800 | 25 | 0825-20 |
| 22X108 | 1200 | 24 | 1224-20 |
| Series 11, 12,13 & 17 |
| Series 11 | Length in mm | Diameter in mm | Part number |
| | 800 | 34 | 0834-11 |
| | 1600 | 33 | 1633-11 |
| | 2400 | 32 | 2432-11 |
| | 3200 | 31 | 3231-11 |
| | 4000 | 30 | 4030-11 |
| | 4800 | 29 | 4829-11 |
| | 5600 | 28 | 5628-11 |
| | 6400 | 27 | 6427-11 |
| | 7200 | 26 | 7226-11 |
| Series 12 | 800 | 40 | 0840-11 |
| | 1600 | 39 | 1639-11 |
| | 2400 | 38 | 2438-11 |
| | 3200 | 37 | 3237-11 |
| | 4000 | 36 | 4036-11 |
| | 4800 | 35 | 4835-11 |
| | 5600 | 34 | 5634-11 |
| | 6400 | 33 | 6433-11 |
| | 7200 | 32 | 7232-11 |
| | 8000 | 31 | 8031-11 |
| | 8800 | 30 | 8830-11 |
| | 9600 | 29 | 9629-11 |
| Series 13 | 400 | 34 | 0434-11 |
| | 800 | 33 | 0833-11 |
| | 1200 | 32 | 1232-11 |
| | 1600 | 31 | 1631-11 |
| | 2000 | 30 | 2030-11 |
| Series 17 | 600 | 41 | 0641-11 |
| | 1200 | 40 | 1240-11 |
| | 1800 | 39 | 1839-11 |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
