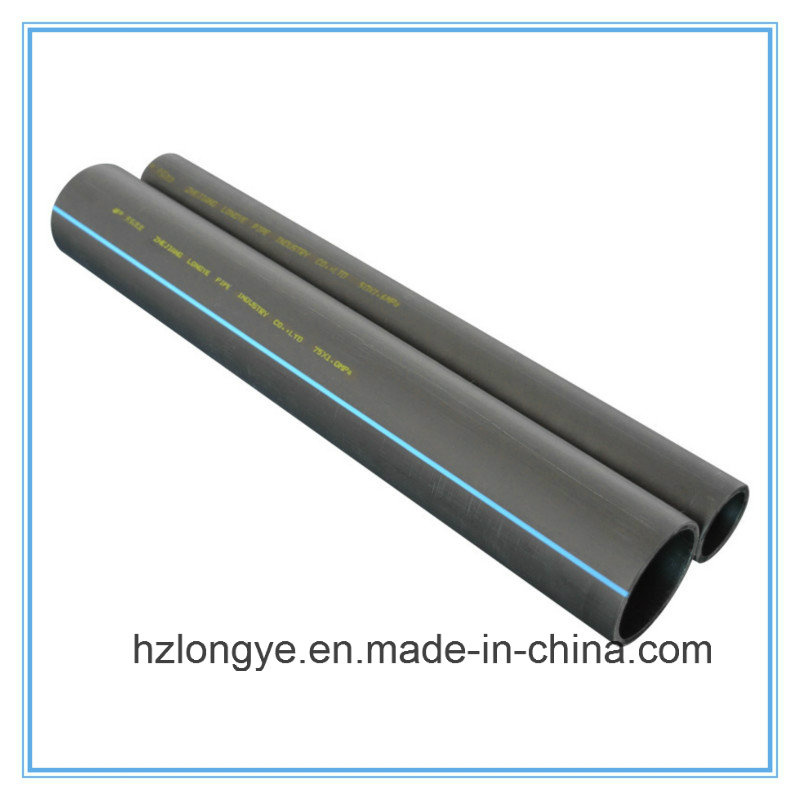

ISO4427/AS/NZS4130 HDPE Pipe for Water Supply Dn20-630mm
| Price: |
US $ 0.01-0.24/Meter |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1000/Meter |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
LY1502-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
6 Meter or as Requested |
| Pressure Rate: |
1.6MPa, 1.25MPa, 1.0MPa, 0.8MPa, 0.6MPa |
| Out Diameter: |
20mm-630mm |
| Thickness: |
2.3mm-57.2mm |
| Logo: |
L&Y or Customized |
| Delivery Time: |
7-12 Days |
| Suitable Degree Celcius: |
0 Degree to 80 Degree |
| Life Span: |
50 Years |
| Advantage: |
OEM |
| Port: |
Shanghai, Ningbo |
| Material: |
PE |
| Hardness: |
Hard Tube |
| Type: |
Thermoplastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Color: |
Black with Blue Stripe |
Product Description
--HDPE pipes Introduction--HDPE water supply pipe use PE110 or PE80 as raw materials, own processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics. Pipe and fittings can be employed melt socket connection, butt and fusion connection, to ensure pipe system safety and reliability as well as low construction cost. 1) Material:PE100/PE80 2) Standard:GB/T9001-2000
3) Certification:ISO9001:2008 4) Package:Nuded packing
5) Connection: Butt fusion, socket joint, electric connection.
6) Color: black with blue stripe or customized.
7) Pressure rating:1.6Mpa,1.25Mpa,1.0Mpa, 0.8Mpa, 0.6Mpa. --Product Features--1) Non-toxic,No Leakage. 5) Hygienic Safety
2) Smooth Surface 6) Corrosion resistant.
3) Excellent Flexibility 7) Recycle and environment-friendly
4) Easy Installation and Lower costs--Product Specification-- External Diameter
Dn(mm) | HDPE PIPE(SDR11) |
| Thickness(mm) | Weight(KG/M) |
| 20 | 2.3 | 0.135 |
| 25 | 2.3 | 0.173 |
| 32 | 2.9 | 0.283 |
| 40 | 3.7 | 0.437 |
| 50 | 4.6 | 0.676 |
| 63 | 5.8 | 1.07 |
| 75 | 6.8 | 1.52 |
| 90 | 8.2 | 2.18 |
| 110 | 10.0 | 3.23 |
| 125 | 11.4 | 4.25 |
| 140 | 12.7 | 5.18 |
| 160 | 14.6 | 6.87 |
| 200 | 18.2 | 10.8 |
| 225 | 20.5 | 13.76 |
| 250 | 22.7 | 17.02 |
| 280 | 25.4 | 20.3 |
| 315 | 28.6 | 27.03 |
--Applications--1) Municipal water supply, gas supply and agriculture etc.
2) Commercial & Residential water supply.
3) Industrial liquids transportation.
4) Sewage treatment.
5) Food and chemical industry.
7) Replacement of cement pipes and steel pipes.
8) Argillaceous silt, mud transportation.
9) Garden green pipe networks. --Product Installation--
Mainly connection ways1) Dn≤110mm, Use hot melt socket connection or fusion connection.
Dn≥110mm, Use butt fusion connection or fusion connection.
2) Connection with metal pipe and metal fittings, can be connected by flange.--Product Photos--
--Sales Service--
Packaging: Roll plastic bag for pipes. Nylon bags for fittings, then packed into carton.
Shipping:For samples order, we support transferring by international express, such as FEDEX, DHL, TNT or EMS.
For final order, we prefer to choose sea shipping. Our factory is near Shanghai port / Ningbo port . We can transfer goods to port within 6 hours.
Delivery : Within 8-12 days upon confirmation of Sales Contract and receiving of deposit.
We promise our customers the best quality products with reasonable lowest price.
Our company are specialied in producing PP-R pipes, pipe fittings, HD-PE water supplying pipes, heat-meating pipe fittings, plastic connecting pipe fittings and water separators.
Our company, with fixed assets of more than RMB 80 million, have over 120 workers, including eight technicians, three engineers and one advanced engineer.
We own varieties of moder equipment, all kinds of advanced testing equipment make sure that our products are of high quality for superior materials with careful bursting pressure test, pull test and so on.
Our products, after being tested by state testing centre, have completely reached stardard of GB/T 19001-2008 and passed ISO9001-2008 international Quality Management System. Our company have been awarded "pressure piping components manufacturing license" and "heath permit " by the National Technical Supervision Bureau in China.
Welcome customers at home and abroad to our company offering guidance and cooperation as well as visits to make our contributions to the development of plastic pipes.
