PPR Hot-Cooling Water Pipe with ISO 9001-2008 Certified
| Price: |
US $ 0.01-0.42/Meter |
| Trade Terms: |
FOB,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
LY1501-4&20-170626n |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Rate: |
Pn12.5/Pn16/Pn20/Pn25 |
| Out Diameter: |
Dn20mm-110mm |
| Thickness: |
3.4-18.3mm |
| Length: |
4m or Customized |
| Logo: |
Customized |
| Raw Material: |
PP |
| Delivery Time: |
8-12 Days |
| Port: |
Shanghai/Ningbo |
| Original Country: |
Hangzhou, Zhejiang Province, China |
| Aluminium Plastic Compound Pipe Use: |
Water Distribution Pipe in Building |
Product Description
In cold and hot water transprotation project, the PPR pipes and fitttings adopts advanced fusion technology, whose technical performance and economical indicator are better than other similar pipes. Particularly, its excellent health performance, from production to the whole process of recycling waste can achieve high health and environmental protection requirements.--Product Features--1) High Temperature Resistance: the maximum sustained working temperature is up to 70 ºC, the maximum transient temperature is up to 95 ºC.
2 )Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
3) Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
4) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
5) Lower Installation Costs: light weight and easy installation can reduce installation costs by as much as 50% over metal piping system.
6) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
7) Long Life: more than 50 years under normal condition.
8) Recycled and Environment-friendly.--Product Specification-- Outer Diameter
Dn(mm) | PP-R Water Supply Pipe |
| S5 | S4 | S3.2 | S2.5 |
Wall Thickness
en (mm) |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 3.0 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
| 63 | 5.8 | 7.1 | 8.7 | 10.5 |
| 75 | 6.9 | 8.4 | 10.1 | 12.3 |
| 90 | 8.2 | 10.1 | 12.3 | 15.1 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 |
--Product Performance--General situation, and long-term continuous make temperature < 70 ºC, can choose C = 1.25;On important occasions, and long-term continuous working temperature of 70 ºC or higher, and may have a run at a higher temperature for a long time, can choose C = 1.5| security coefficient C=1.25 |
| Pipe series | S5 | S4 | S3.2 | S2.5 | S2 |
| PN | 1.25 | 1.6 | 2.0 | 2.5 | 3.2 |
| security coefficient C=1.5 |
| Pipe series | S5 | S4 | S3.2 | S2.5 | S2 |
| PN | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 |
ATTENTION:Used for cold water (40 ºC) or less system, choose P.N 1.0 ~ 1.6 MPa pipes, pipe fittings; Used for hot water system use acuity PN2.0 MPa pipes, pipe fittings--Application area--1) Pipe for hot and cold water, drinking water system.
2) Pipe for heating, floor and wall warming system, melting snow in north building.
3) Pipe for solar heating system, hot and cold device.
4) Pipe for transproting oil and coling liquid.
5) Pipe for air conditioning external connecting.

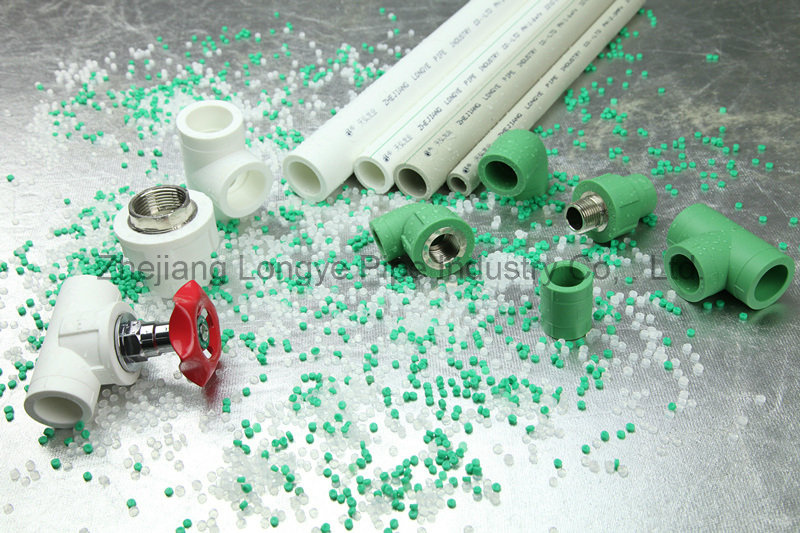

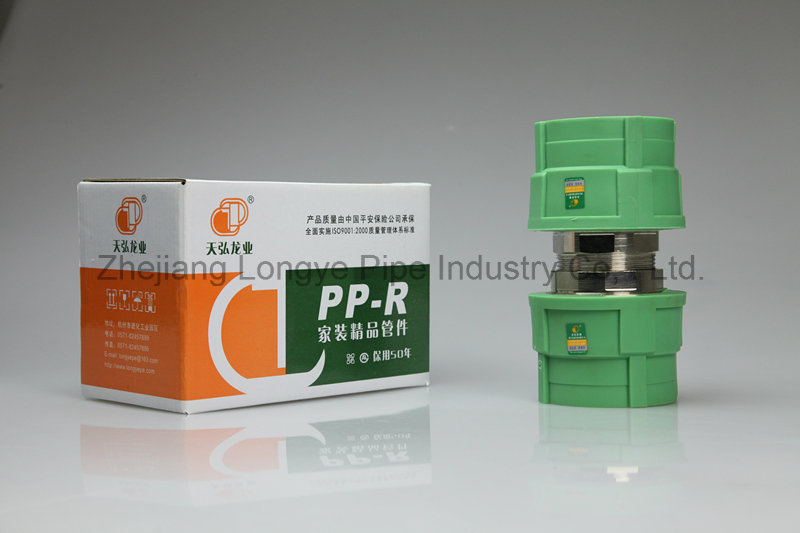

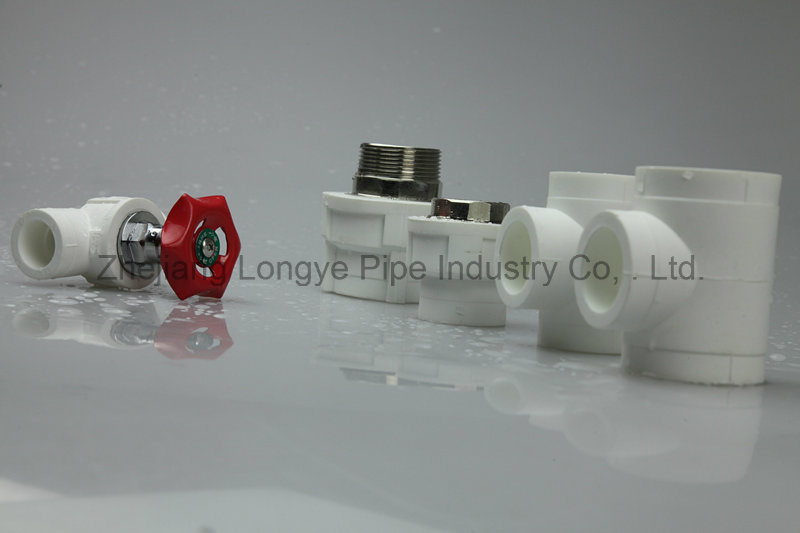

6) Pipe for transporting oxygen in hospital.--Product Photos--
--Sales Service--
Packaging: Roll plastic bag for pipes. Fittings packed into nylon bags then into carton.
Shipping:For sample order, we support transferring by international express, such as FEDEX, DHL, TNT or EMS;
For final order, we recommend to choose sea shipping. Our factory is near Shanghai port / Ningbo port, we can transport goods to port within 6 hours.
Delivery : Within 8-12 days upon confirmation of Sales Contract and receiving of deposit.
We promise our customers the best quality products with reasonable lowest price.
Our company are specialied in producing PP-R pipes, pipe fittings, HD-PE water supplying pipes, heat-meating pipe fittings, plastic connecting pipe fittings and water separators.
Our company, with fixed assets of more than RMB 80 million, have over 120 workers, including eight technicians, three engineers and one advanced engineer.
We own varieties of moder equipment, all kinds of advanced testing equipment make sure that our products are of high quality for superior materials with careful bursting pressure test, pull test and so on.
Our products, after being tested by state testing centre, have completely reached stardard of GB/T 19001-2008 and passed ISO9001-2008 international Quality Management System. Our company have been awarded "pressure piping components manufacturing license" and "heath permit " by the National Technical Supervision Bureau in China.
Welcome customers at home and abroad to our company offering guidance and cooperation as well as visits to make our contributions to the development of plastic pipes.
