| Prod Model: |
XW-B011 |
| Size: |
1/4''-4''&Dn6-Dn100 |
| Certificate: |
ISO9001: 2000,Ce |
| Working Pressure: |
1000psi(6.4MPa) |
| Connection Ends: |
Threaded (F/F,M/F), Butt Welded, Socket Welded (Bw |
| Sealing: |
PTFE, Rptfe, Ppl |
| Term Of Payment: |
30% Tt Deposit, The Balance Is Paid Before Shippin |
| MOQ: |
10 PCS/Size |
| Gurantee Period: |
18 Monthes |
| Package Detail: |
Inner CTN, Ourside Ply-Wooden Case |
| Locking: |
Option |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Temperature: |
-20-300 Degree C |
Product Description

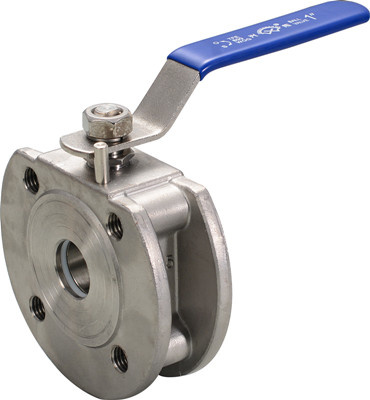

Italy Type Wafer Ball Valve (Q41F)
Product Description
Name: Ball valve-Wafer Type Ball Valve (Wafer Ball Valve, Valve, Brass Ball Valve, Plat Ball Valve, Stainless Steel Ball Valve, Stainless Steel 3pc Ball Valve, Carbon Steel Ball Valve, Steel Ball Valve, Floating Ball Valve)
Full Bore
Wafer Ball Valve Size: 1/2 -4
Wafer Ball Valve Face to Face: GB /T9113 Q/SYF012-96
Flanged Standard ANSI B 16.5
Suitable media: Water, oil, air and some corrosive liquids
The specifications can be designed and satisfied for customers' special requirement.
Any interest you, pls contact with us freely, looking forward to our coopetation!
| Product name | Ball Valve |
| 1)Material | SS201 SS304, 304L, 316, 316L |
| 2)Size | 1/4''-4''&DN6-DN100 |
| 3)Certificate | ISO9001: 2000,CE |
| 4)Working pressure | 1000psi(6.4MPa) |
| 5)Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
| 6)Suitable medium | Water, gas, air and some corrosive liquid |
| 7)Temperature Range | -20-300 degree C |
| 8)Investment | casting body and cap |
| 9)Sealing | PTFE, RPTFE, PPL |
| 10)stem | SS201,SS304,SS316 Adjustable stem packing, |
| 11)Locking | option |
| Our advantage | Survival by quality and development by credibility.
Quality first, customer upmost ! |
| | 100% leakage tested at 100 psi air under water |
| | Blow-out proof stem, ball are made of ss316 or customer request |
| | Pure Teflon seals and seats |
| | Can do OEM products |
| Shipment | |
| Delivery time | usual 20 days around and can negotiate as per order qty |
| Shipping port | Ningbo, Shanghai |
| Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
| Package detail | inner CTN, ourside ply-wooden case |
| MOQ | 10 PCS/size |
| Gurantee Period | 18 monthes |
| Capacity to produce | 100, 000 PCS/week |

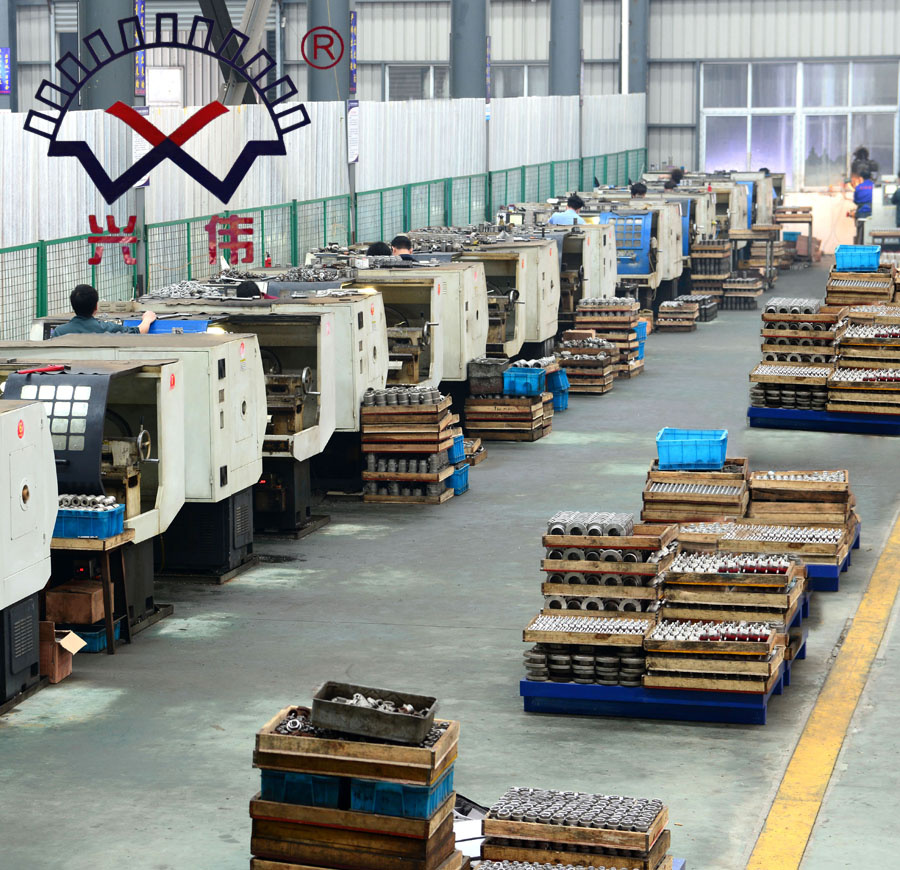

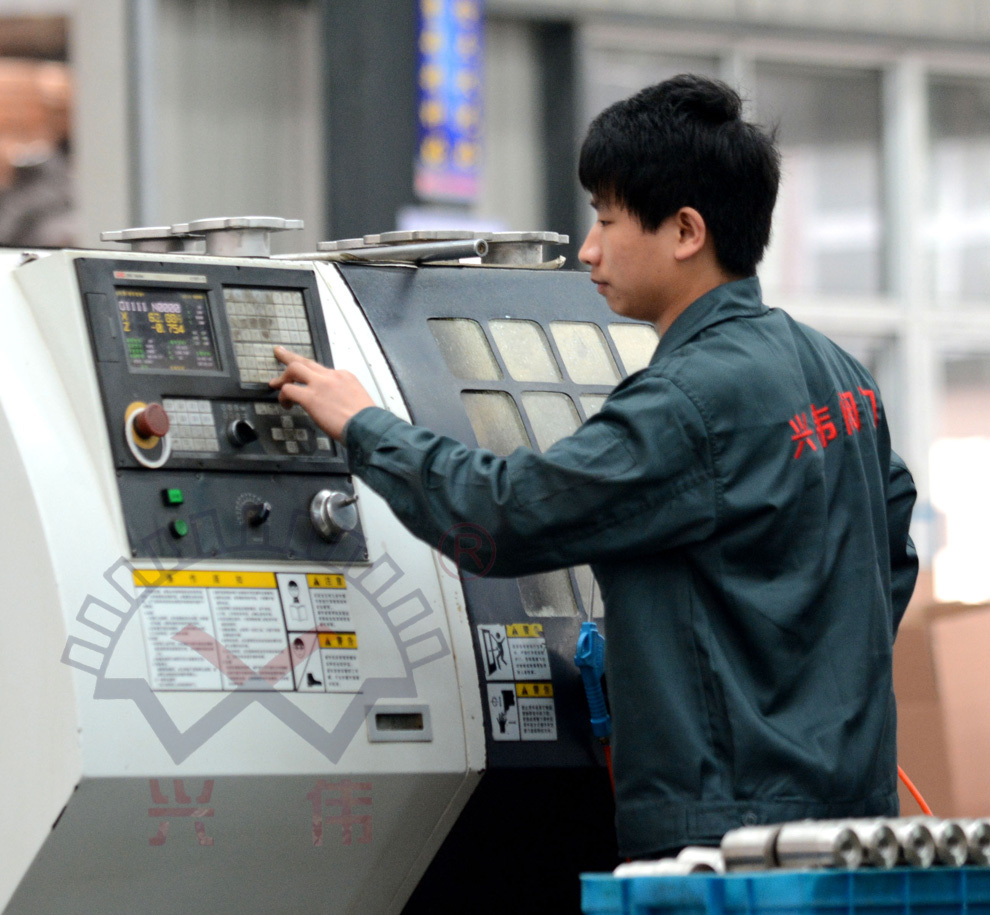

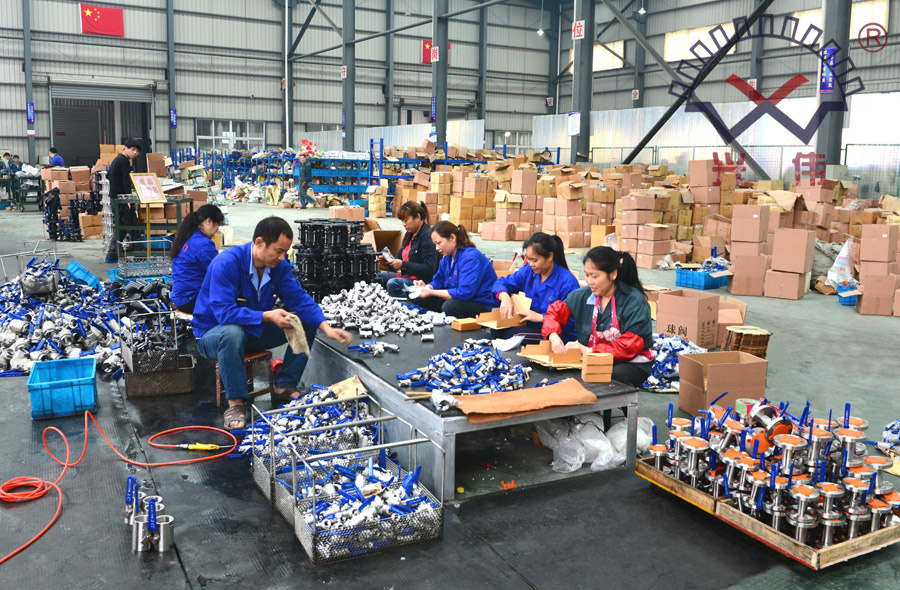

Zhejiang Xingwei Valve Manufacturing Co., Ltd is located at Binhai Industrial Park. Having more than 200 worker. Our Company is a valve munufacture which sets ODM, manufacturing, testing, sales service in one. The company always follow modern management systems since it's beginning. Concept abide by" Harmony, Pragmatic, Innovative, Pursue", The purpose of our company is insist on"Quality First, Clients First, Untiring Service". Our objective is being the best valve supplier.
Xingwei Valve Manufacturing Co., Ltd is speciallized in production of stainless steel and carbon steel valve. The products include 1-PC, 2-PC, 3-PC valve, filter, check valve, stop valve, gate valve, three-way valve, nonstandard valve and so on. Our products work according to specifications, for example China GB standered, United States API, NPT standered, German DIN standered and so on. We have strong technical strength, superior producing equipment, testing complete, strict system management and we also keep innovating the product.
The products are stable performance and quality reliability. And it is used widly in Oil extractor, Chemical industry, metallurgy, power industry, environmental causes, construction industry, medical devices, food processing equipment, defence equipmentand many other industry
The goods sale well in domestic markes and are exported to many countries as well, such as America, Europe, Middle East, Southeast Asia and popular in there.
We sincerely welcome customers from home and abroad call and sent letter for order, or visit our factory and guidance.
