| Prod Model: |
xh-101 |
| Size: |
1/4" ~4". |
| Connect Form: |
Thread. |
| Suitable Medium: |
Water, Oil, Steam, Nitric Acid, Acetate Acid and |
| Suitable Temperature: |
-40 +150&Sum |
| Seat: |
PTFE. Material and Good on-off Feature. |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Product Description

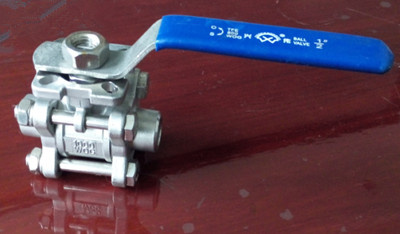

Three-Piece Model High Mounting Pad Ball Valve Connect form: Thread.
Size: 1/4" ~4".
Suitable medium: Water, oil, steam, nitric acid, acetate acid and so on.
Suitable temperature: -40 +150∑ C be able to endure high pressure and dose not destroy valve.
Seat: PTFE. Material and good on-off feature.
Working pressure: 1000wog
On-off number: 400 500.
Thread standard: PT, npt, bs21standard, surface is flat, allow overun the range 0.5 0.8mm.
Main material: 304, 316, wcb.
Design and manufacture adoption: ISO, API, GB, bs, we are strict with the security and quality, it was accepted by clients and sells to internal, external market.
**SPECIFICATION***
ITEM | Designation | Materials |
| 1 | Handle | Steel Q235 |
| 2 | Stem | Brass CW627 N accoring to EN12165 |
| 3 | Body | Brass CW627 N accoring to EN12165 Nickel |
| 4 | Stem | Brass CW627 N accoring to EN12165 |
| 5 | O-ring | NBR |
| 6 | Plug | Brass CW627 N accoring to EN12165 Nickel |
| 7 | Bonnet | Brass CW627 N accoring to EN12165 Nickel |

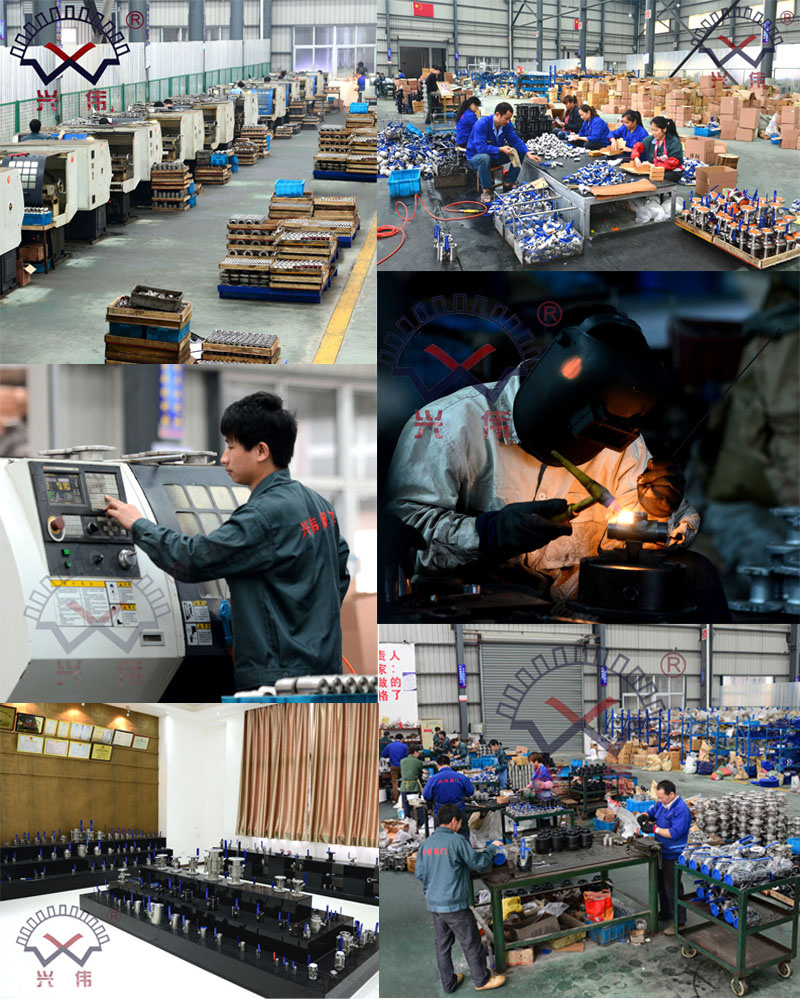

Zhejiang Xingwei Valve Manufacturing Co., Ltd is located at Binhai Industrial Park. Having more than 200 worker. Our Company is a valve munufacture which sets ODM, manufacturing, testing, sales service in one. The company always follow modern management systems since it's beginning. Concept abide by" Harmony, Pragmatic, Innovative, Pursue", The purpose of our company is insist on"Quality First, Clients First, Untiring Service". Our objective is being the best valve supplier.
Xingwei Valve Manufacturing Co., Ltd is speciallized in production of stainless steel and carbon steel valve. The products include 1-PC, 2-PC, 3-PC valve, filter, check valve, stop valve, gate valve, three-way valve, nonstandard valve and so on. Our products work according to specifications, for example China GB standered, United States API, NPT standered, German DIN standered and so on. We have strong technical strength, superior producing equipment, testing complete, strict system management and we also keep innovating the product.
The products are stable performance and quality reliability. And it is used widly in Oil extractor, Chemical industry, metallurgy, power industry, environmental causes, construction industry, medical devices, food processing equipment, defence equipmentand many other industry
The goods sale well in domestic markes and are exported to many countries as well, such as America, Europe, Middle East, Southeast Asia and popular in there.
We sincerely welcome customers from home and abroad call and sent letter for order, or visit our factory and guidance.
