| Prod Model: |
J21 |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

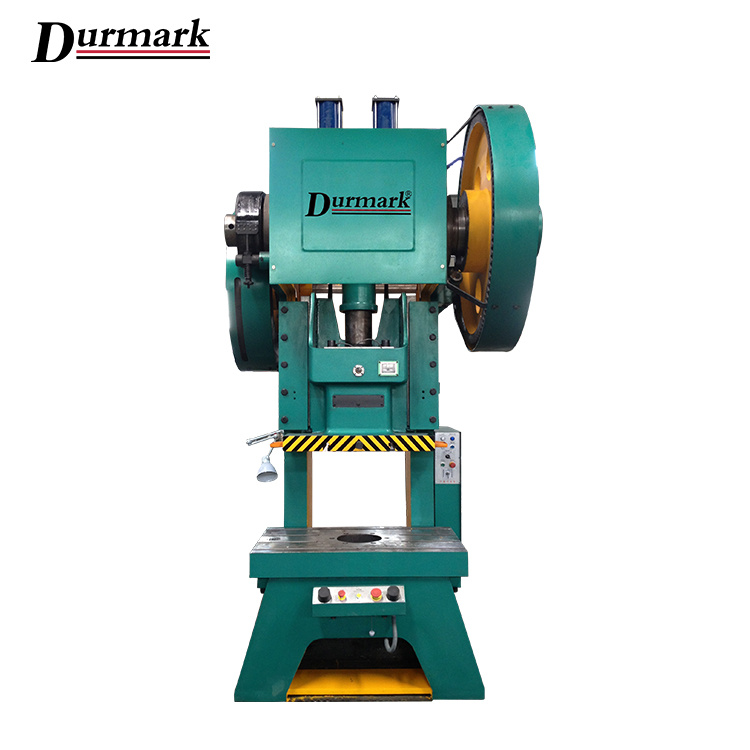

J21 automatic punching machine C frame power press 21 series open press is a sheet metal Universal presses for shearing, punching,blanking, bending
and shallow drawing work. Usually used for ( communications,computers, household appliances,
furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming).
Main feature
1. With foundry structure for better vibration resistance.
2. Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.3. The good rigidity of Casting box structure slider4. Built-in block collapsed overload protection device, the structure is simple, if slider after overload,
fuse collapsed destroyed to protect the machine and mold from damage5. Four elongated triangular rail, easy for adjustment.6. Adopts hands and foot switch operation buttons design, it's easy to activate continuous, single
and adjustment practices.7. Compatible with the corresponding punch automatic feeding system,which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.Technical Parameter (100T)| No. | Name | J21-100T |
| 1 | Nominal Force (KN) | 1000 |
| 2 | Nominal Froce stroke (mm) | 8 |
| 3 | Slider stroke (mm) | 120 |
| 4 | Slinder stroke times (time/min) | 45 |
| 5 | Maximum height for die loading | 290 |
| 6 | Adjustment range for die loading height | 80 |
| 7 | Distance between slider center line and
the fuselage | 300 |
| 8 | Worktable Size | 500x900 |
| 9 | Worktable blanking hole size | D200x200x400 |
| 10 | Slider bottom size | 290x350 |
| 11 | Shank hole size | D60xDepth80 |
| 12 | Distance between columns(mm) | 380 |
| 13 | Bolster thickness(mm) | 100 |
| 14 | Tilting degree(degree) | 0 |
| 15 | Motor(kw) | 11 |

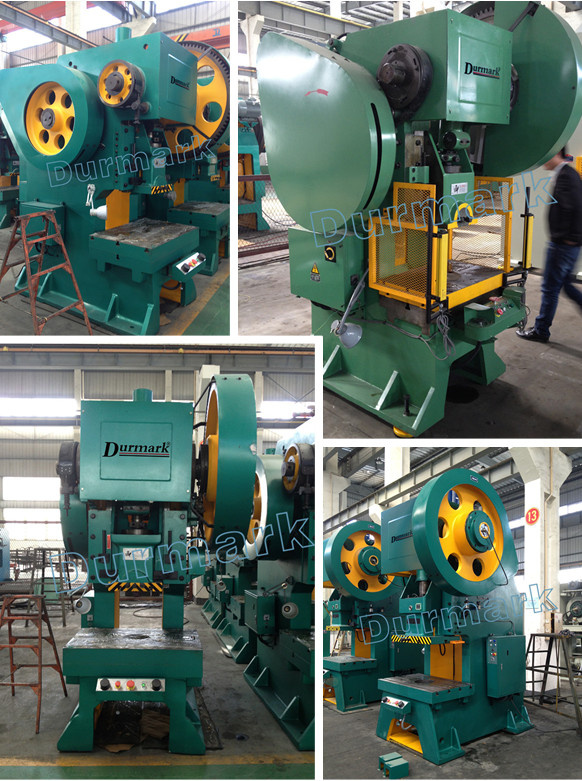

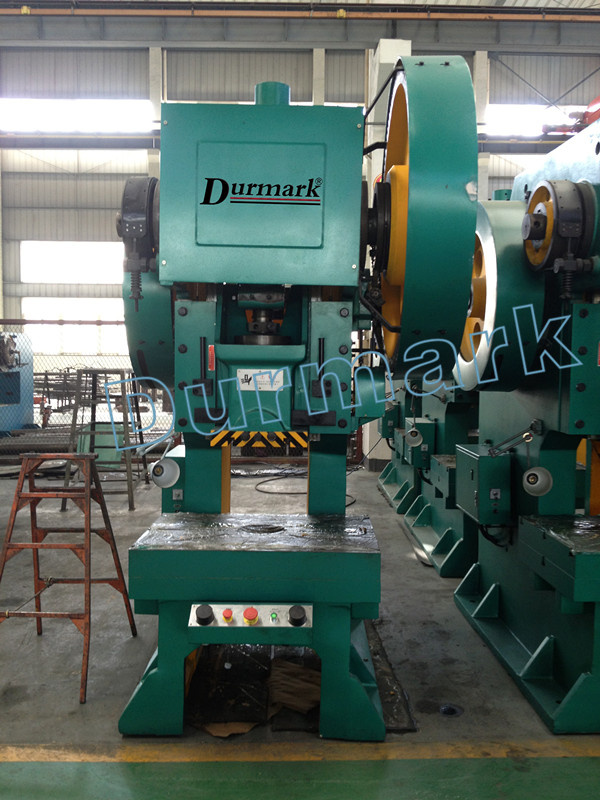

Detailed Image
Our servicePre-sales Service:
1. Inquiry and consulting support.2. Sample testing support .3. Recommend the most suitable machine according to customer's purpose.4. Factory visiting welcomed.After-sales Service:
1. Training how to install the machine .2. Training how to use the machine .3. Warranty 1 year.4. Engineers available to service machinery oversea .Our Customer
Our Workshop
Lifu Machinery is a professional manufacturer of CNC sheet metal. We focus on R&D and have advanced
production equipment as the backing, first-class testing equipment as the cornerstone of the international
quality system as the stand to produce high-quality products.

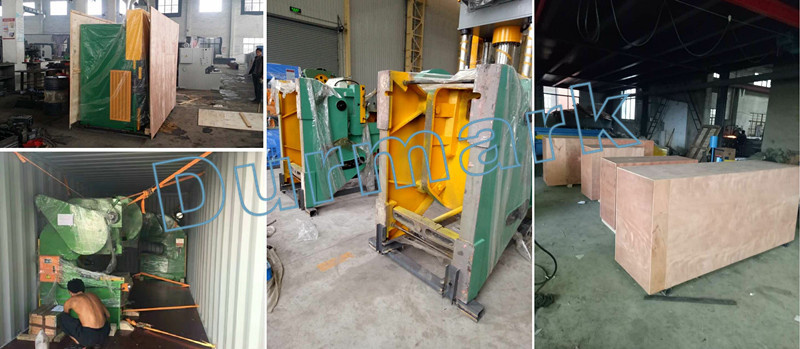

Packaging and shipping1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. 2)before loading,stable package,professional and skilled loader reduce damage of product during transport.3)we fixed our machine in container by steel wire inside which will be protected well during shipping4)unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.
