| Prod Model: |
J21S |
| Color: |
Customized |
| Voltage: |
Customized |
| Material: |
Aluminum, Ss, Ms, etc |
| Safety Protection: |
Photoelectric Protection |
| Electrical: |
Chnt |
| Function: |
Metal Processing |
| CNC Feeding System: |
Available |
| Worktable: |
Fixed |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

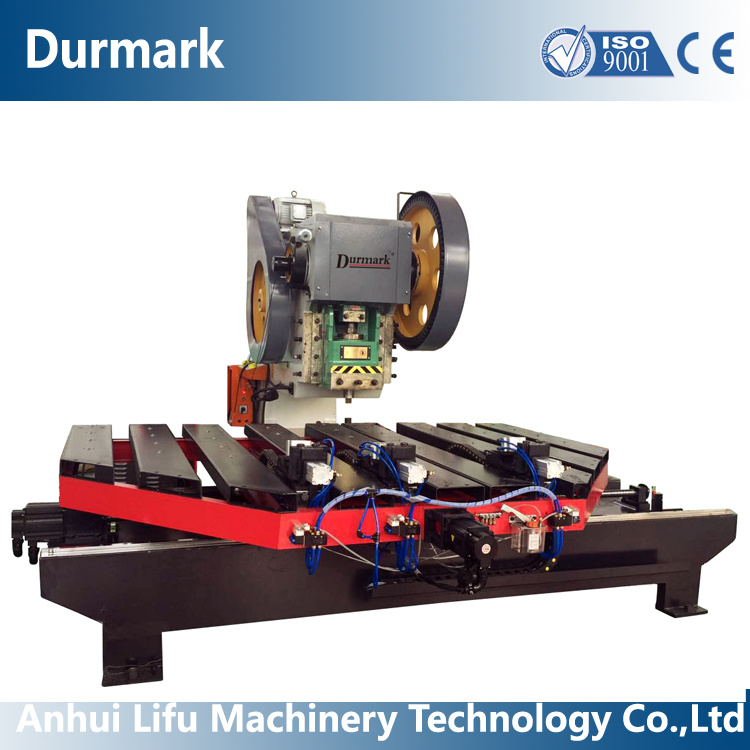

J21S-63T Deep throat power press with automatic feeder for cans lid and container makingMain feature
1, With foundry structure for better vibration resistance.
2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3, The good rigidity of Casting box structure slider
4, Built-in block collapsed overload protection device, the structure is simple, if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage.
5, Four elongated triangular rail, easy for adjustment.
6, Adopts hands and foot switch operation buttons design, it's easy to activate continuous, single and adjustment practices.
7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.
Technical parameter| NO | Name | J21S-100T |
| 1 | Nominal force (kn) | 1000 |
| 2 | Nominal force stroke (mm) | 8 |
| 3 | Slider stroke (mm) | 120 |
| 4 | Slider stroke times (time/min) | 45 |
| 5 | Maximum height for die loading | 290 |
| 6 | Adjustment range for die loading height (mm) | 80 |
| 7 | Distance between slider center line and the fuselage (mm) | 500 |
| 8 | Worktable size (mm) | 500*900 |
| 9 | Work table blanking hole size (mm) | D200*200*400 |
| 10 | Slider bottom size (mm) | 290*350 |
| 11 | Shank hole size (mm) | D60*Depth80 |
| 12 | Distance between columns (mm) | 380 |
| 13 | Bolster thickness (mm) | 100 |
| 14 | Tilting degree (degree) | 0 |
| 15 | Motor (kw) | 11 |

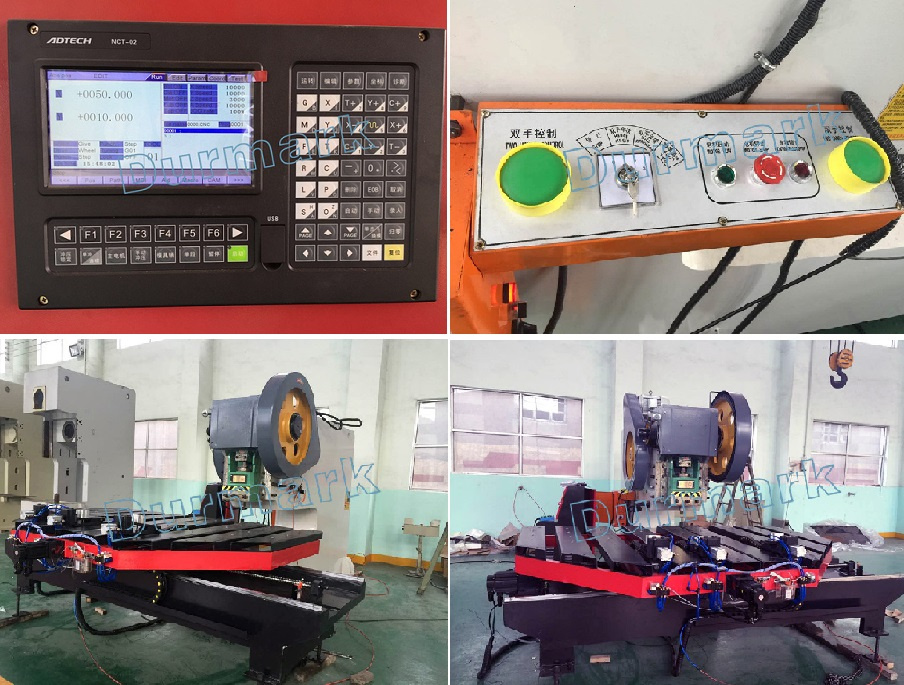

Detailed photos

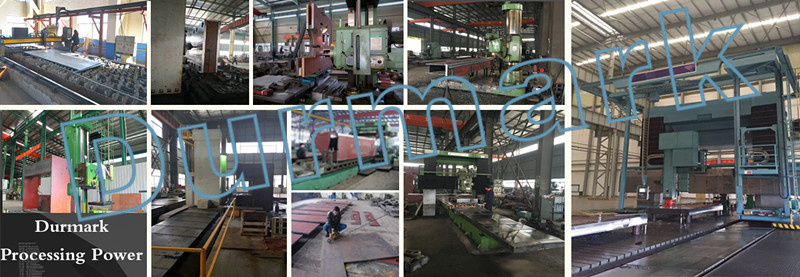

Workshop
Package

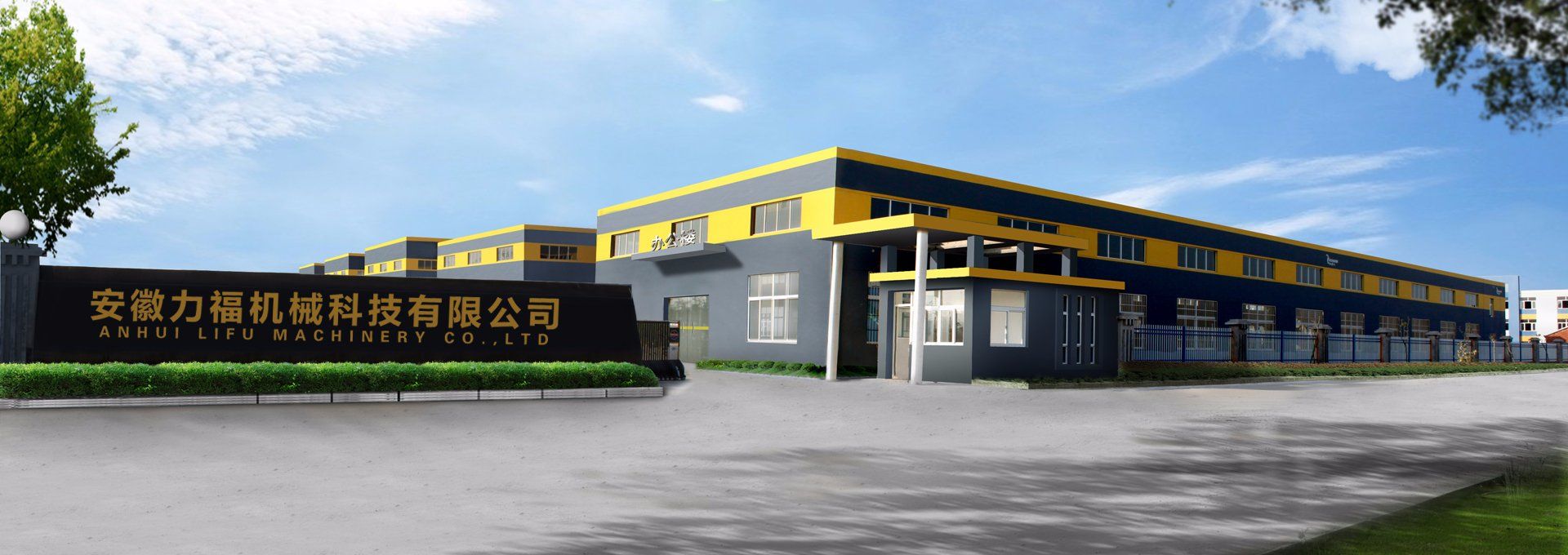

Factory
Certificate
ServicePre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed
After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea Contact
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
