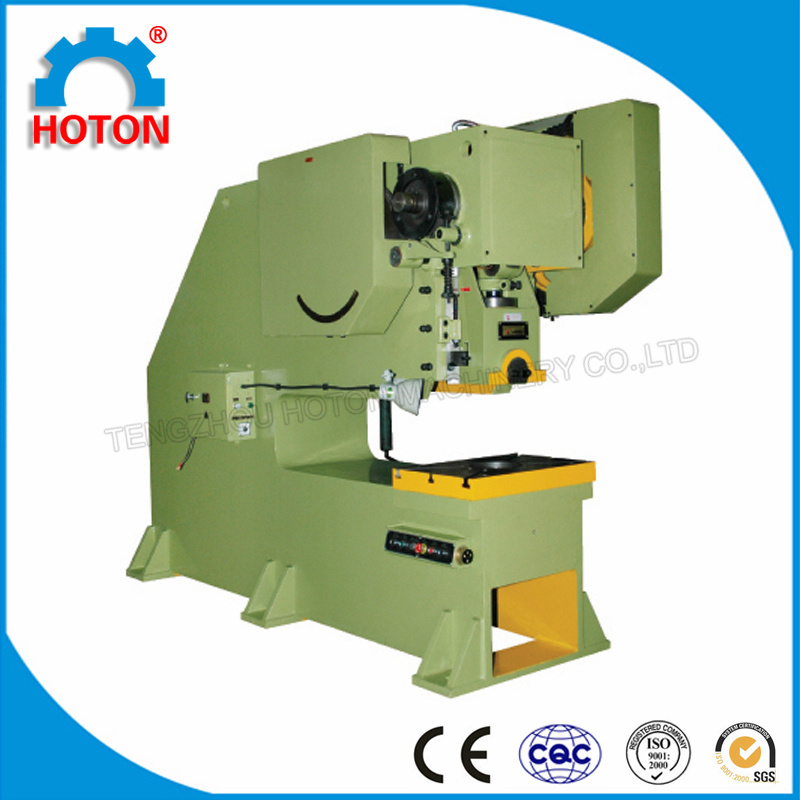

J21S Deep-Throat Power Punching Press Machine with Fixed Bed

Name: J21S Deep-Throat Power Punching Press Machine with Fixed Bed
Brand: tool-buy.com
SKU: 714904372
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	US $ 1000-10000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Tengzhou Hoton Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	J21S-6.3 J21S-10 J21S-16 J21S-25A
Capacity:	63kn
Slide Stroke:	35mm
Max.Die Height:	110mm
Motor:	0.75KW
SPM:	170(Min/1)
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Pneumatic
Precision:	Normal Precision

Product Description

J21S SERIES DEEP-THROAT POWER PRESS,PUNCHING MACHINES FEATURES:
J21S series general deep-throat press
Increased throat deep and working area.
Adopts horizontally placed crankshaft.
Rigid rotated bond clutch.
Manual shut height adjustment with scale display.
The type with "A" equipped with emergency stop device,which could make the slide stop at 0°~135°area and equipped with light curtain protector as well.
SPECIFICATIONS:

MODEL		J21S-6.3	J21S-10	J21S-16	J21S-25A	J21S-40A
Capacity	kN	63	100	160	250	400
Nominal Force	mm	2	2	2	2.5	4
Slide Stroke	mm	35	60	70	80	120
SPM	min-1	170	145	125	60	55
Max. Die Height	mm	110	130	170	180	220
Die Height Adjustment	mm	30	35	45	70	80
Between Slide Center & Frame	mm	700	700	700	700	700
Bolster (FB×LR)	mm	200×310	240×360	320×480	400×600	480×700
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ60	Φ120×20×Φ100	Φ100	Φ120	Φ220×25×Φ180
Bolster Thickness	mm	40	50	60	70	80
Bolster Opening (Dia.×FB×LR)	mm	Φ140×110×160	Φ130×90×180	Φ210×160×240	200×200	200×240
Slide Area (FB×LR)	mm	120×140	150×170	180×200	210×250	270×320
Shank Hole (Dia.×Dpth)	mm	Φ30×55	Φ30×55	Φ40×60	Φ40×70	Φ50×70
Between Columns	mm	162	182	220	350	390
Motor Power	kW	0.75	1.1	1.5	2.2	4
Outline Size (FB×LR×H)	mm	1540×700×1525	1620×730×1800	1680×840×1880	1790×990×2288	1965×1180×2295
