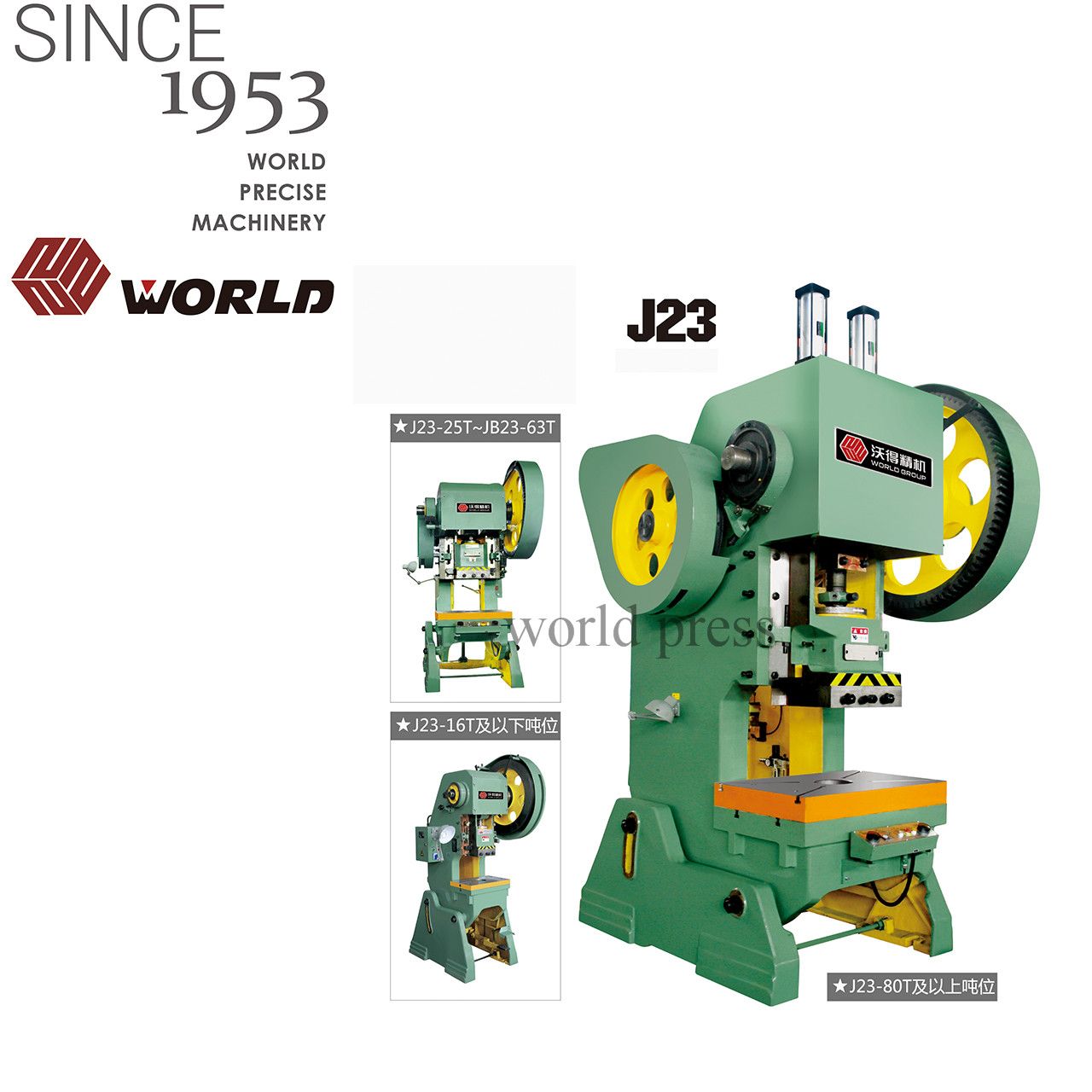

J23-40t C-Frame Inclinable Punch Press/Power Press Machine/40 Ton Press Machine
| Price: |
US $ 5000/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
J23-40T |
| Model No: |
J23 Series |
| Warranty: |
1 Year |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
Normal Precision |
Product Description
Details:1.Adopt rotating key positive clutch, which is easy to operate and convenient to maintain.
2.J23-25T adopts rolling bearing instead of sliding bearing(copper bearing) and this make the transmission gear more wear-resistant and avoid loud noise of gears caused by copper bearing abrasion.
3.J23-35 open type inclinable press machine is unique in the industry. Other 35T press machine produced by other manufactures in the country all adopt a machine body of the 25T machine and copper bearing for the transmission gear. We are the only manufacturer that redesigns the body. The 35T machine body is far more heavier than the 25T machine body and the strength is also better with the rolling bearing transmission (low gear noise), which is almost eaqual to the light 40T press machine.
4.J23-80T and above press machines adopt pneumatic double balance cylinder, which decreased the balance force fluctuate, and balanced the weight of slider and die, prevent the unstable situation. Besides, it also avoid the clash and noise caused by the gear reverse force during transmission; eliminate the clearance between connecting rod and slide; reduce the compact force and abrasion of stress components; and avoid the accident caused by falling slider when brake or connecting rod broke.
FEATURES:1.Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability;
2.Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact;
3.The crankshaft undergoes gringding treatment after high frequency quenching;
4.Lengthened six-face rectangle guide with a surface of bronze plate;
5.Vertical located crankshaft, compact structure;
6.PLC control and imported safety duplex valve;
7.Wet type combined multi discs friction clutch and brake;Hydraulic overload protecting pump.| Specifications of J23 Series C-frame Inclinable Press |
| Parameter | Unit | J23-
6.3 | J23-
10 | J23-
16 | J23-
25 | J23-
35 | J23-
40 | J23-
63 | JB23-
63 | J23-
80 | J23-
100 | J23-
125 |
| Nominal Capacity | KN | 63 | 100 | 160 | 250 | 350 | 400 | 630 | 630 | 800 | 1000 | 1250 |
| Nominal Stroke | mm | 2 | 2 | 2 | 2.5 | 3.5 | 6 | 6 | 7 | 7 | 7 | 8 |
| Slide Stroke | mm | 35 | 45 | 55 | 65 | 80 | 90 | 110 | 110 | 120 | 140 | 150 |
| Slide Stroke Per Minute | T/M | 170 | 145 | 125 | 55 | 50 | 45 | 50 | 40 | 38 | 38 | 38 |
| Maximum Die Set Height | mm | 150 | 180 | 220 | 270 | 290 | 320 | 360 | 390 | 440 | 480 | 500 |
| Die Height Adjustment | mm | 30 | 35 | 45 | 55 | 60 | 65 | 80 | 80 | 90 | 100 | 100 |
| Throat Depth | mm | 110 | 130 | 160 | 200 | 220 | 250 | 260 | 310 | 350 | 380 | 390 |
| Distance Between Uprights | mm | 150 | 180 | 220 | 270 | 280 | 340 | 350 | 420 | 450 | 560 | 550 |
| Slide Bottom Size | L x R | mm | 140 | 170 | 200 | 250 | 250 | 300 | 300 | 400 | 430 | 540 | 540 |
| F x B | mm | 120 | 150 | 180 | 220 | 220 | 260 | 260 | 360 | 360 | 480 | 480 |
| Stem hole Size | Dia | mm | 30 | 30 | 40 | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 |
| Depth | mm | 55 | 55 | 60 | 60 | 60 | 70 | 70 | 70 | 75 | 75 | 75 |
| Bolster Size | L x R | mm | 310 | 370 | 450 | 560 | 610 | 700 | 760 | 860 | 950 | 1080 | 1100 |
| F x B | mm | 200 | 240 | 300 | 370 | 400 | 460 | 480 | 570 | 650 | 710 | 720 |
| Diameter of Blanking Hole | mm | 60 | 80 | 100 | 120 | 130 | 150 | 180 | 180 | 200 | 220 | 240 |
| Bolster Thickness | mm | 30 | 35 | 40 | 50 | 60 | 65 | 80 | 80 | 100 | 120 | 130 |
| Max. Angle of Inclination | ° | 45 | 35 | 35 | 30 | 30 | 30 | 20 | 20 | 20 | 15 | 13 |
| Bolster Surface Height | mm | 750 | 730 | 750 | 800 | 815 | 850 | 810 | 850 | 850 | 850 | 860 |
| Overall Size | F x B | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | 1810 | 1958 | 2060 | 2404 | 2504 |
| L x R | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | 1350 | 1500 | 1715 | 1790 | 1790 |
| H | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | 2740 | 2868 | 3290 | 3625 | 3715 |
| Distance between foundation bolts | F x B | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | 1180 | 1300 | 1360 | 1550 | 1710 |
| L x R | mm | 314 | 394 | 450 | 600 | 650 | 750 | 850 | 920 | 1010 | 1130 | 1110 |
| Motor Power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Weight | Kg | 400 | 576 | 1085 | 1780 | 2650 | 3540 | 4550 | 5500 | 7390 | 10800 | 12035 |
| Standard Equipments: | Optional Equipments: |
| 1) High Performance Wet clutch (Adopt advanced Japanese technology) | 1) Light curtain |
| 2) PLC | 2) Foot pedal |
| 3) Hydraulic overload protecting pump | 3) Die cushion |
| 4) Touch screen | 4) Inverter |
| 5) Cam controller | 5) Variable speed motor |
| 6) Die height adjusted motor (JH21-60 and upon models) | 6) Auto feed shaft |
| 7) Auto lubrication system | 7) Die quick change device |
| 8) Manual lubrication system | |
| 9) Double hand control panel | |
| 10) Electronic crankshaft angle indicator | |
| 11) Predetermined counter | |
| 12) Balance cylinders for slide and upper die | |
| 13) Work light | |
| 14) Joint for air | |
| 15) Joint for miss-feeding | |
| 16) Absorbing pads | |

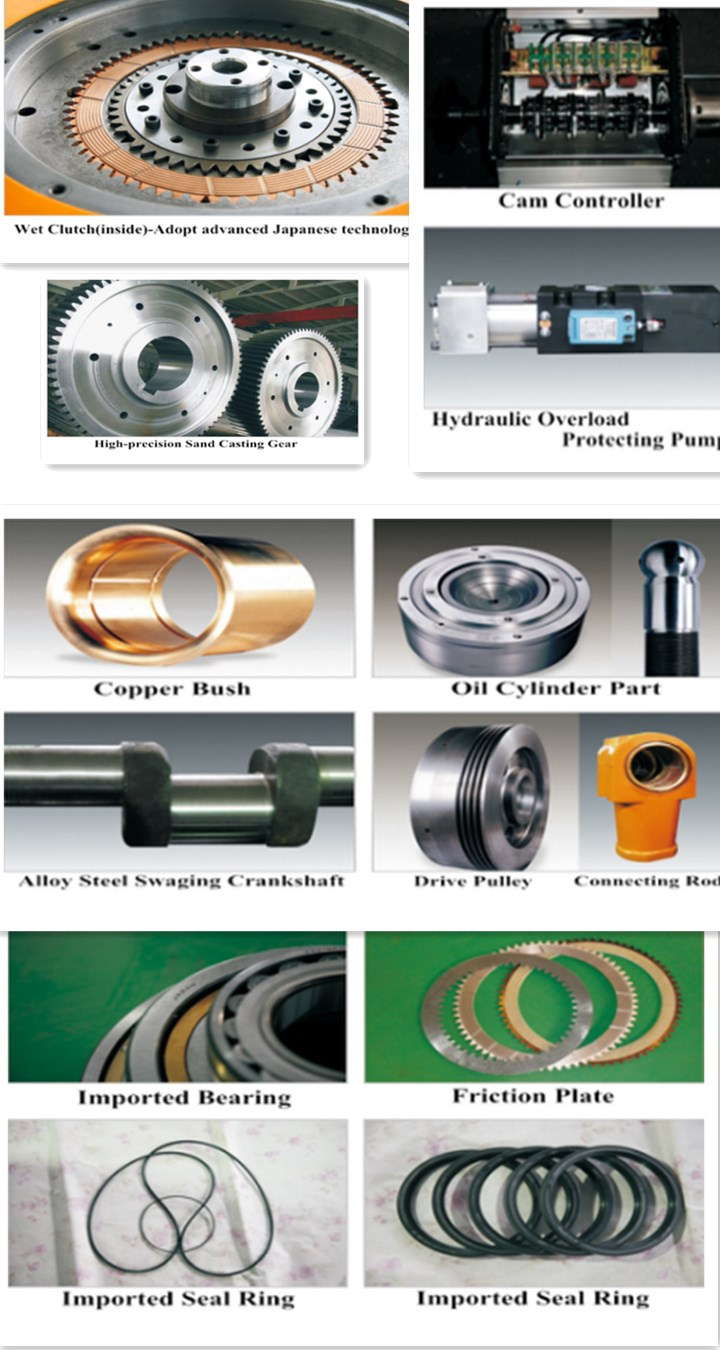

Boutique Accessories:

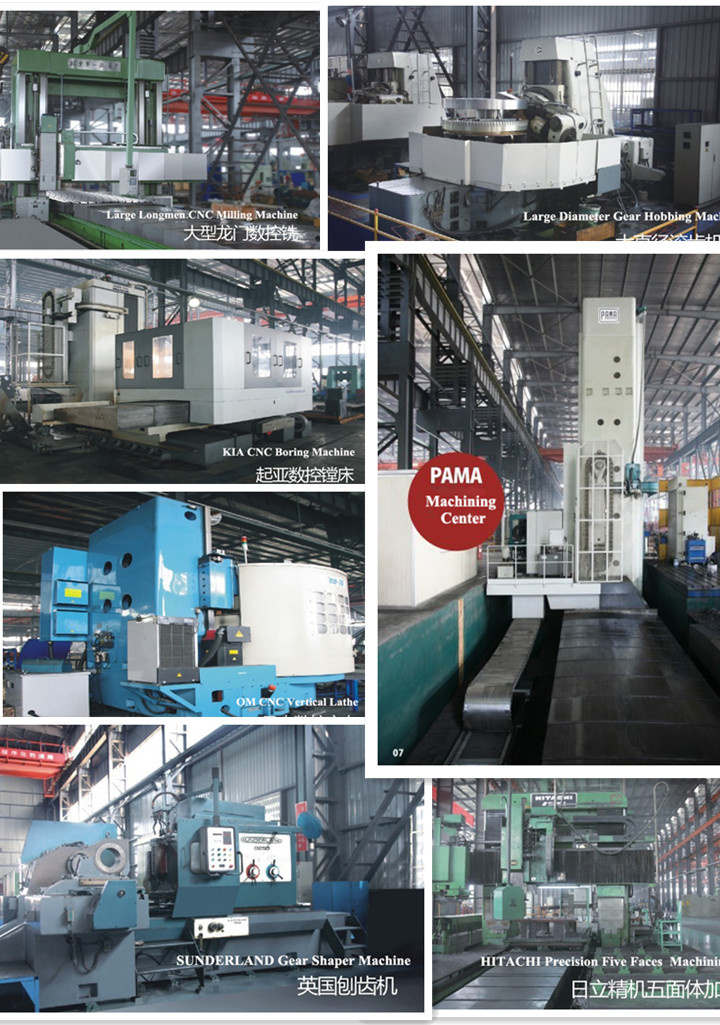

Our Equipment :
