J23-40t Single Column Punching Machine C-Frame Power Press
| Price: |
US $ 300-69999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
J23 |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

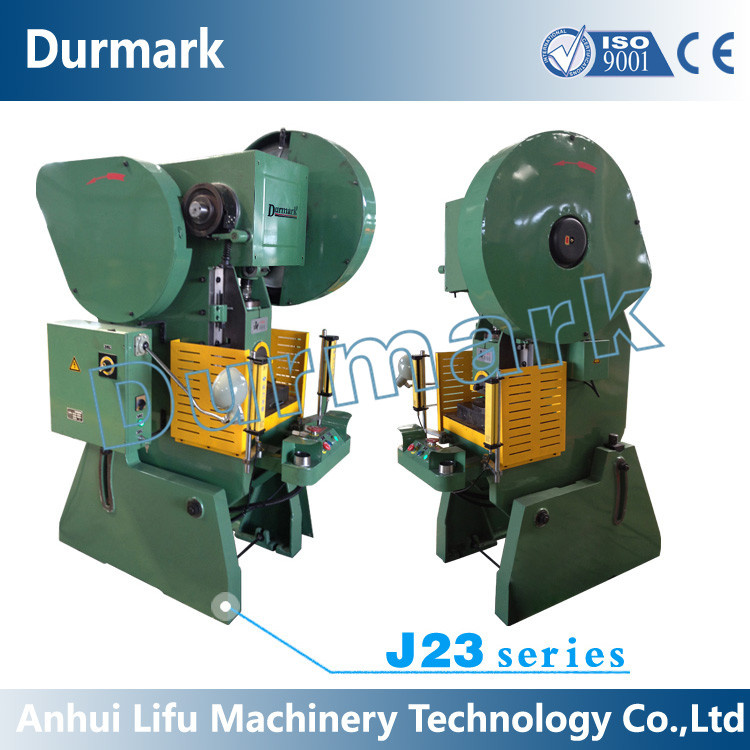

J23-40T single column punching machine, c-frame power press
23 series open press is a sheet metal Universal presses for shearing, punching,blanking, bending
and shallow drawing work. Usually used for ( communications,computers, household appliances,
furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming).
Main feature
1. With foundry structure for better vibration resistance.
2. Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.3. The good rigidity of Casting box structure slider4. Built-in block collapsed overload protection device, the structure is simple, if slider after overload,
fuse collapsed destroyed to protect the machine and mold from damage5. Four elongated triangular rail, easy for adjustment.6. Adopts hands and foot switch operation buttons design, it's easy to activate continuous, single
and adjustment practices.7. Compatible with the corresponding punch automatic feeding system,which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.Technical Parameter(8T)| NO | NAME | J23-80T |
| 1 | Nominal force(KN) | 800 |
| 2 | Nominal force stroke(mm) | 5 |
| 3 | Slider stroke(mm) | 115 |
| 4 | Slider stroke times(time\min) | 45 |
| 5 | Maximum height for die loading | 410 |
| 6 | Adjustment range for die loading height | 60 |
| 7 | Distance between slider center line and the fuselage | 280 |
| 8 | Worktable size | 500x750 |
| 9 | Work table blanking hole size | D200x250x375 |
| 10 | Slider bottom size | 250x300 |
| 11 | Shank hole size | D60xDepth100 |
| 12 | Distance between columns(mm) | 360 |
| 13 | Bolster thickness(mm) | 90 |
| 14 | Tilting degree(degree) | 20 |
| 15 | Motor(kw) | 7.5 |

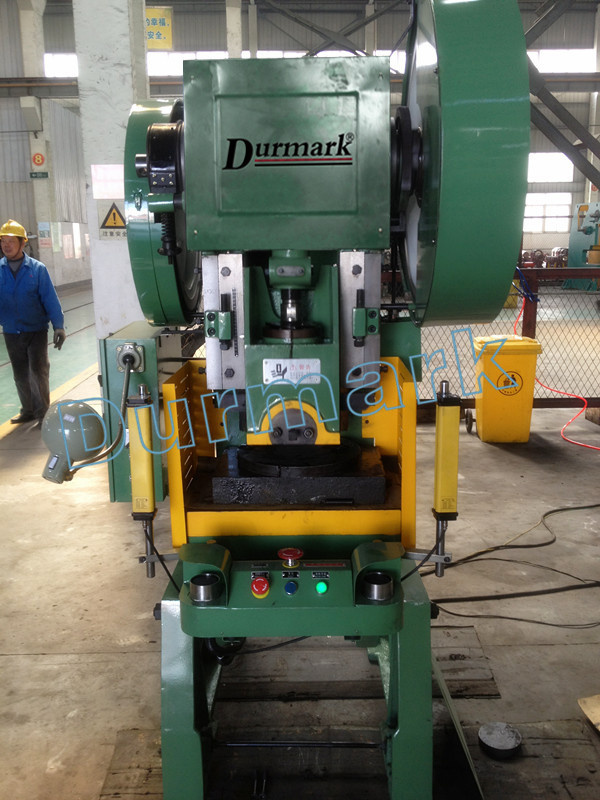

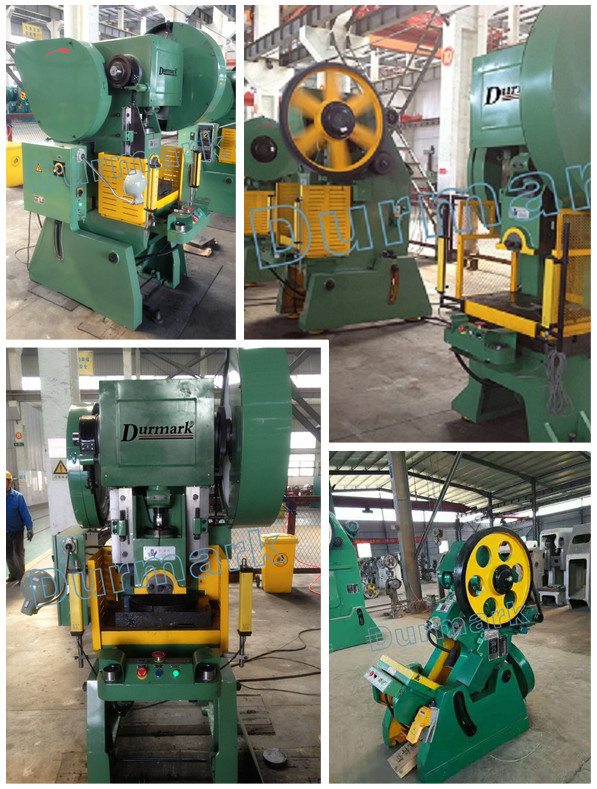

Detailed Image
Our servicePre-sales Service:
1. Inquiry and consulting support.2. Sample testing support .3. Recommend the most suitable machine according to customer's purpose.4. Factory visiting welcomed.After-sales Service:
1. Training how to install the machine .2. Training how to use the machine .3. Warranty 1 year.4. Engineers available to service machinery oversea .Our Customer

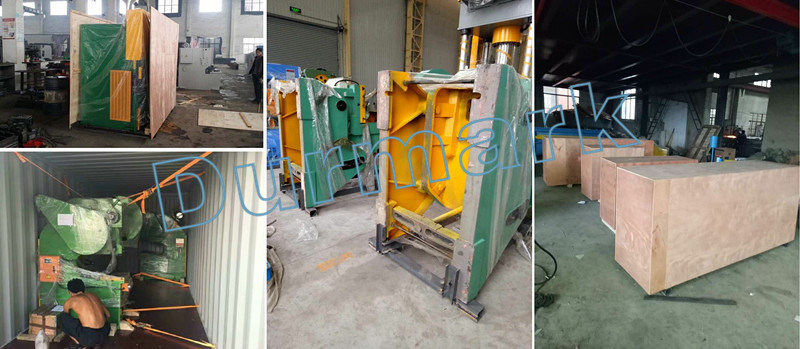

Package and shipping1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. 2)before loading,stable package,professional and skilled loader reduce damage of product during transport.3)we fixed our machine in container by steel wire inside which will be protected well during shipping4)unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.

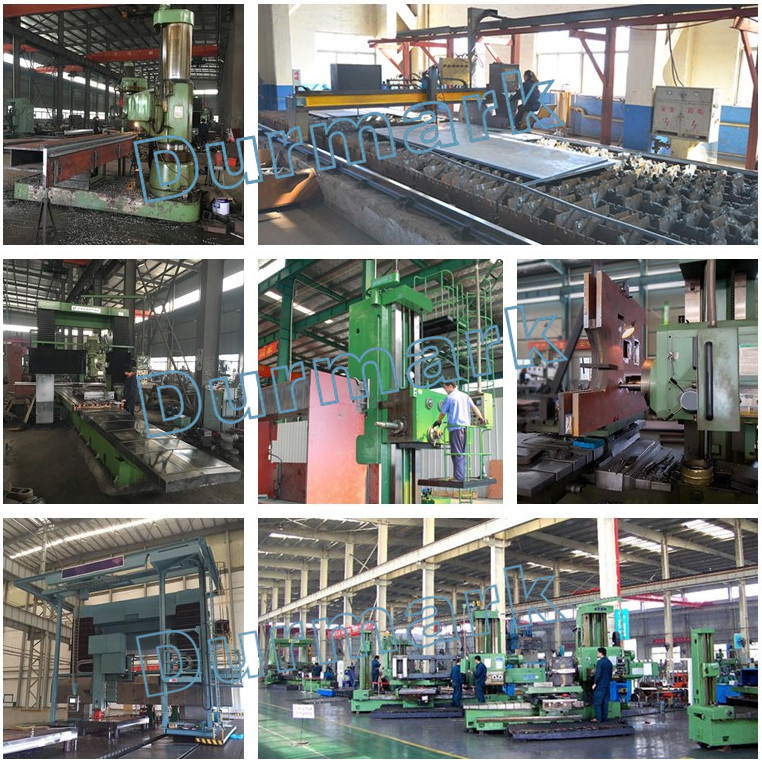

Our Workshop
Lifu Machinery is a professional manufacturer of CNC sheet metal. We focus on R&D and have advancedproduction equipment as the backing, first-class testing equipment as the cornerstone of the international quality system as the stand to produce high-quality products.
About us
Anhui Lifu Machinery Technology Co. Ltd. (Brand-Durmark)Found in 2008 and located in Anhui province, Southeast of China. Featured product are power press, shearing machine, press brake, plate bending machines, hydraulic press, ironwork machine, laser cutting machine, door embossing machine, and kinds of production line. Enterprise culture : Quality First + Customer First + Safe and reliableFAQ- How about your machine quality? We are worry about the quality.
RE: DURMARK is a mature brand in CHINA,through many years research in technology,
our design including structure and detailed sercurity and precision has enhanced greatly,
and can match all the CE standard or more strict standard.Our machines distribute worldwide
to about 50 countries where there are metal plate industry ,there are Brillante machines.
And where there are our machines,there are good reputation and terminal user satisfaction
2. Whether the machine price can be more discount?
RE: 1.DURMARK always provide high quality machine, with 10years experiences,
our machine has enough qaulity standard to make sure the machine can work more than
the real warranty period. In this way ,we will save a lot and think in advance for the clients.
RE: 2. Actually DURMARK also think about our price level,we are sure to provide
quality=price and pice=quality ,the matched price and acceptable for the clients and durable
for our machines. We welcome you negotiate with us and get a good satisfaction.
3. How about your manufactory in China?
RE: DURMARK located in Ma'anShan City, AnHui province which is the leading area in China
and also in the worldwide as the center of the metal plate solution machines,We have worked
about 10 years in this area.Rich experiences in this field with professional technical supporting
and oriented service.
Contact: Ms Irene
MP: +8615618585660
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
