J23-80ton Power Press Metal Punching and Stamping Machine with High Quality
| Price: |
US $ 920-19998/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
J23 |
| Color: |
Customized |
| Voltage: |
Customized |
| Material: |
Aluminum, Ss, Ms, etc |
| Safety Protection: |
Photoelectric Protection |
| Electrical: |
Chnt |
| Body: |
Cast |
| Function: |
Metal Processing |
| CNC Feeding System: |
Available |
| Worktable: |
Inclinable |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

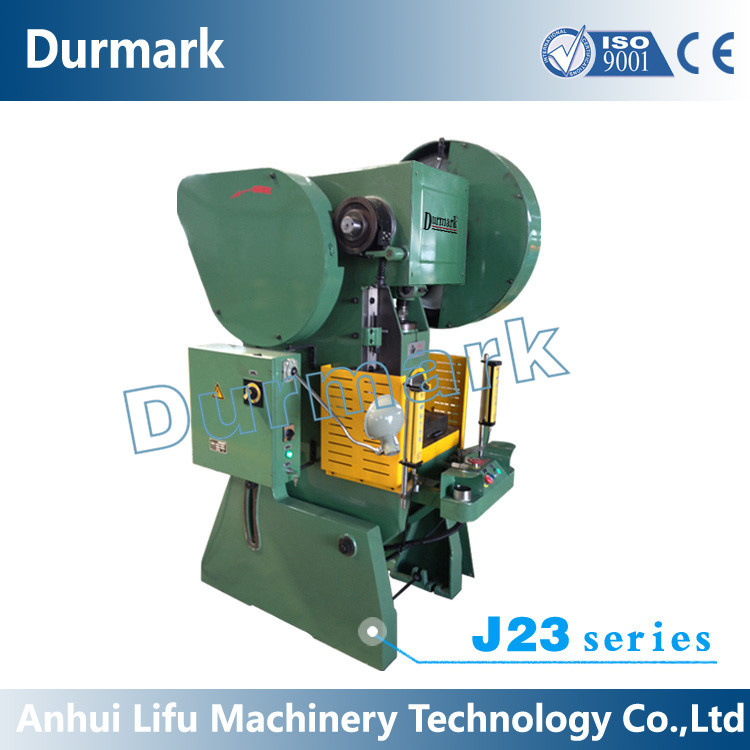

J23-80ton Power press metal punching and stamping machine with high quality

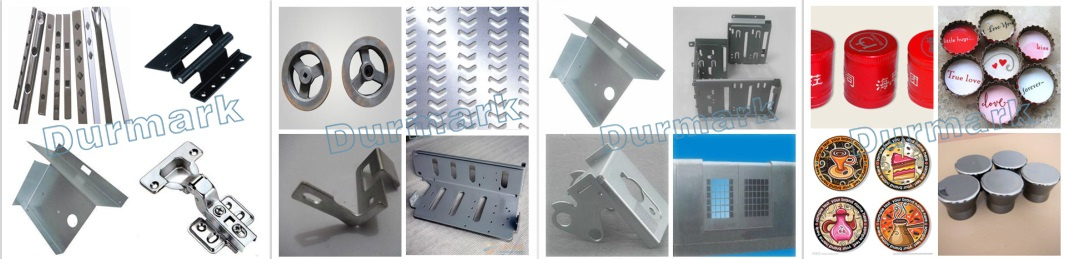

Product descriptionJ23 series open press is a sheet metal Universal presses for shearing, punching,
blanking, bending and shallow drawing work. Usually used for ( communications,
computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles)
metal parts stamping and forming).
Application
Technical parameter| NO | Name | J23-10T |
| 1 | Nominal force (kn) | 100 |
| 2 | Nominal force stroke (mm) | 2 |
| 3 | Slider stroke (mm) | 50 |
| 4 | Slider stroke times (time/min) | 150 |
| 5 | Maximum height for die loading | 180 |
| 6 | Adjustment range for die loading height (mm) | 40 |
| 7 | Distance between slider center line and the fuselage (mm) | 120 |
| 8 | Worktable size (mm) | 220*360 |
| 9 | Work table blanking hole size (mm) | D110*110*200 |
| 10 | Slider bottom size (mm) | 110*150 |
| 11 | Shank hole size (mm) | D30*Depth50 |
| 12 | Distance between columns (mm) | 180 |
| 13 | Bolster thickness (mm) | 25 |
| 14 | Tilting degree (degree) | 20 |
| 15 | Motor (kw) | 1.5 |

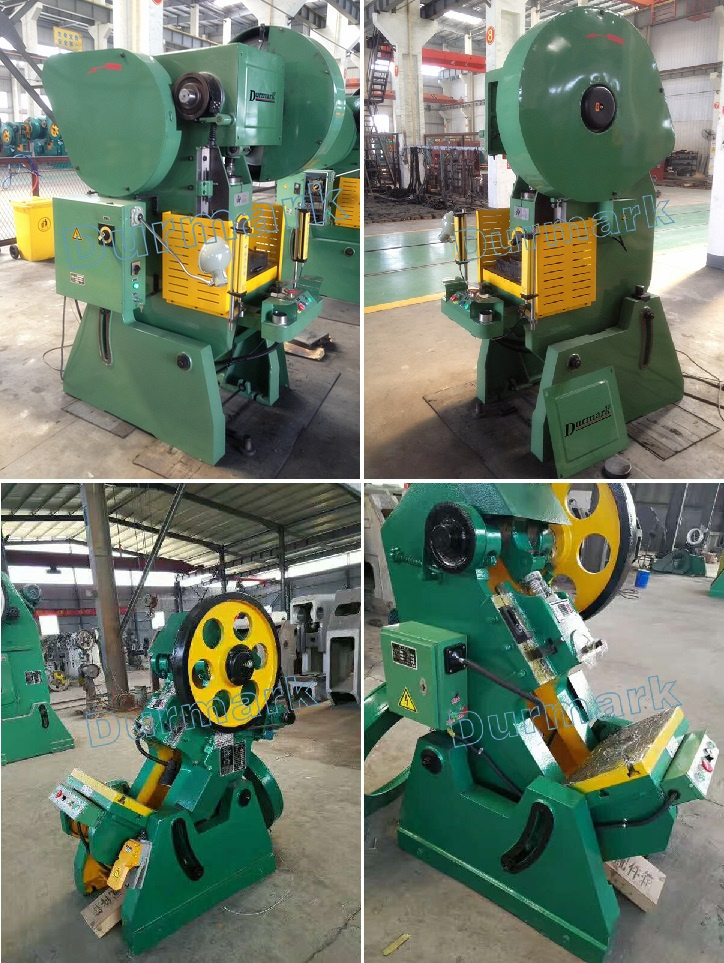

Main feature1.With foundry structure for better vibration resistance.
2.Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3.The good rigidity of Casting box structure slider
4.Built-in block collapsed overload protection device, the structure is simple, if slider after
overload, fuse collapsed destroyed to protect the machine and mold from damage
5.Four elongated triangular rail, easy for adjustment.
6.Adopts hands and foot switch operation buttons design, it's easy to activate continuous,
single and adjustment practices.
7.Compatible with the corresponding punch automatic feeding system, which having a feeding
error detection, pre-cut and pre-breaking device, low cost and high efficiency.Company

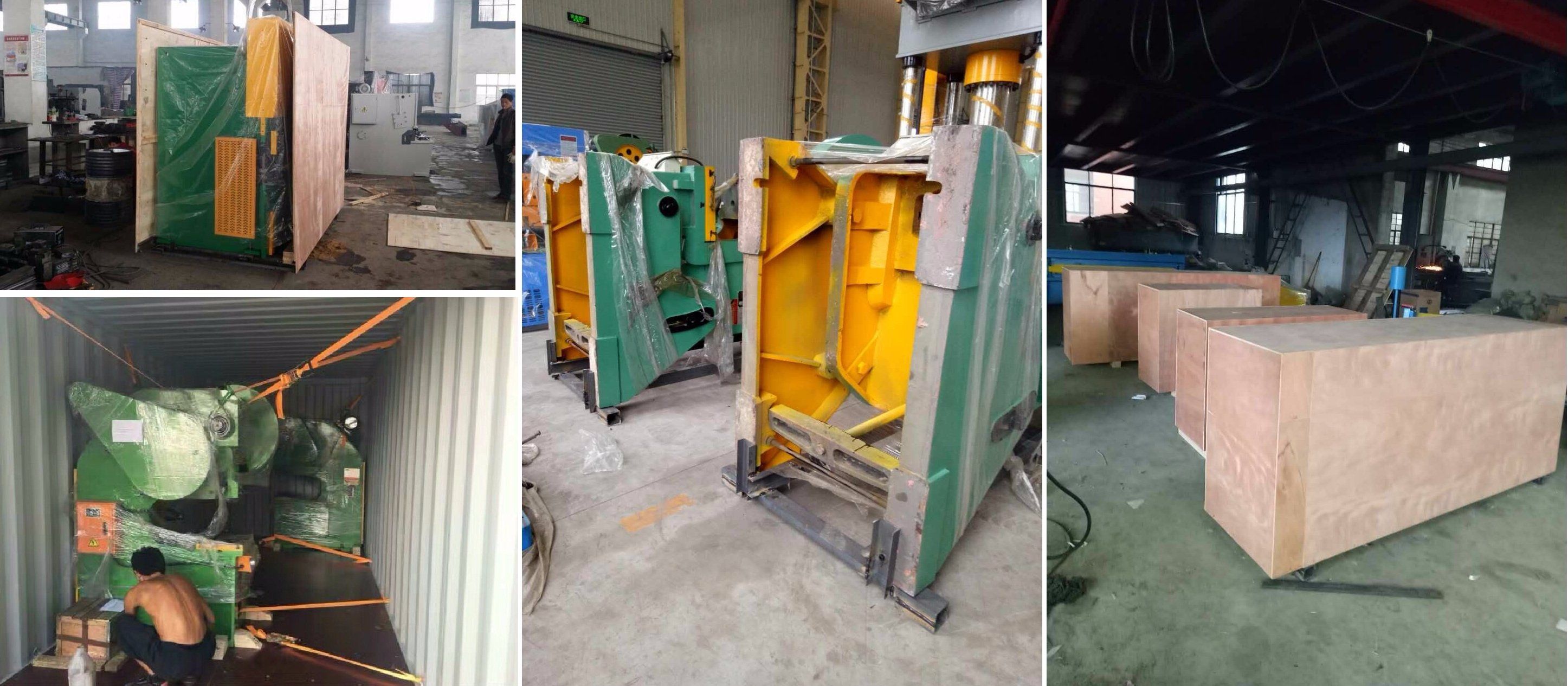

Package
Certificate

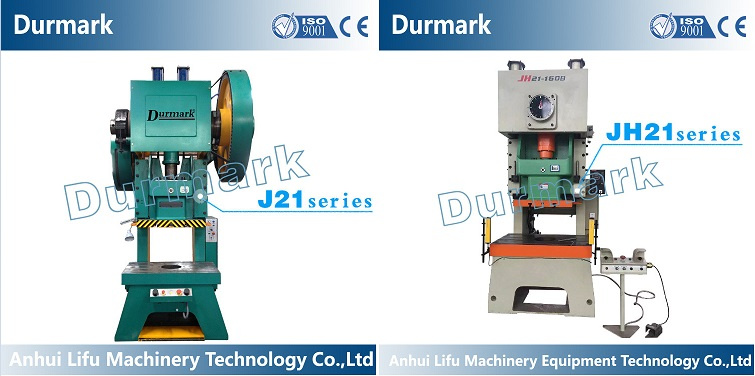

Related product
ServicePre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed
After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea Contact Phone number : 86 15156107235
QQ : 442780615

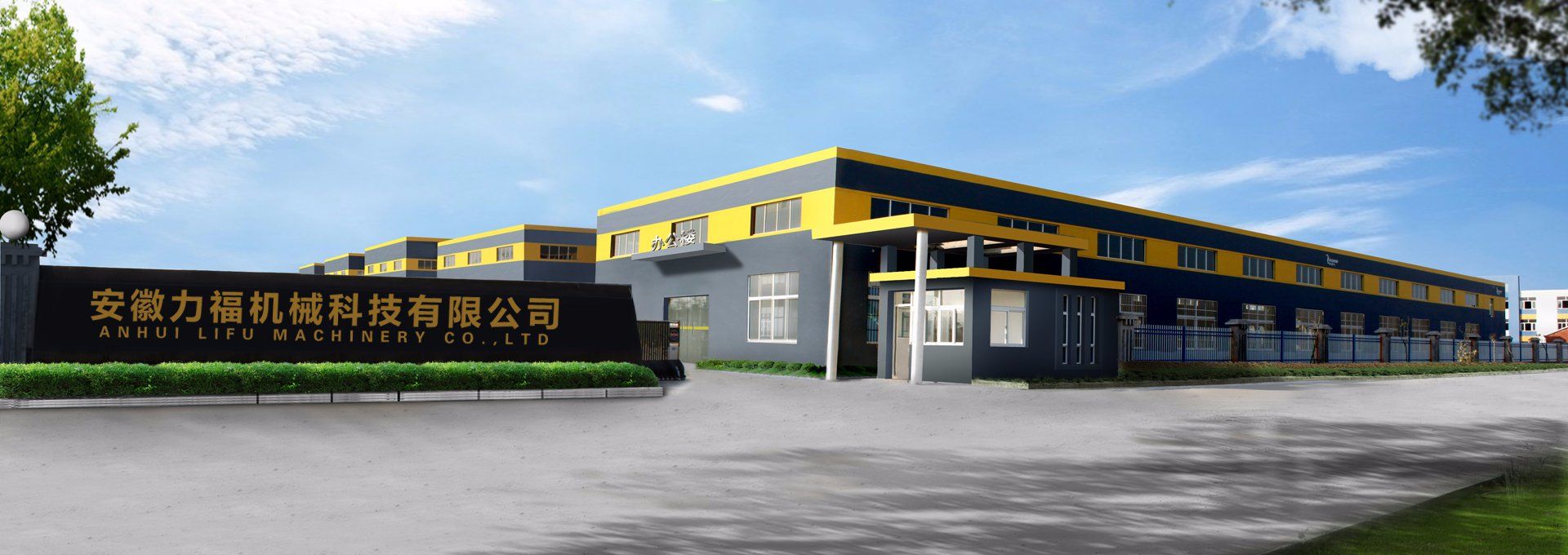

Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
