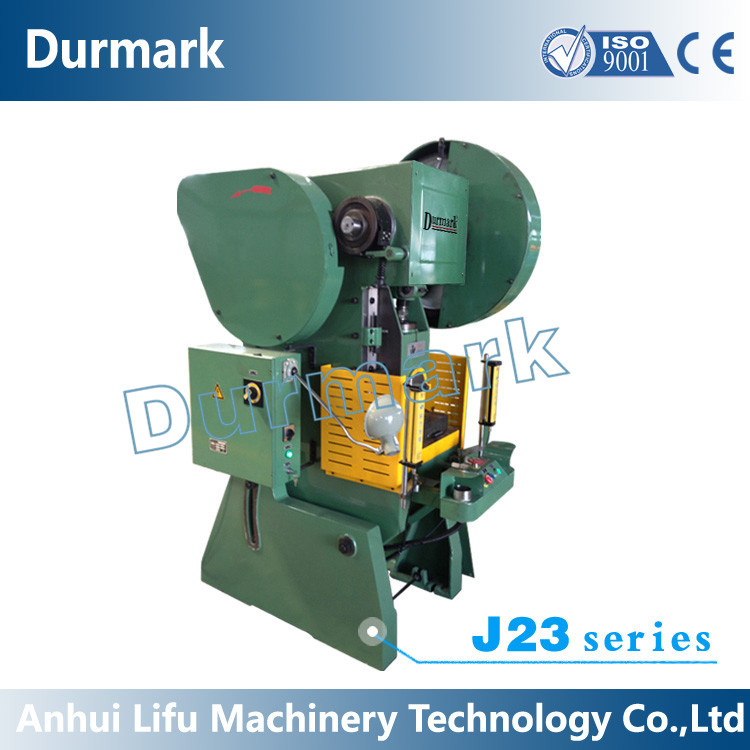

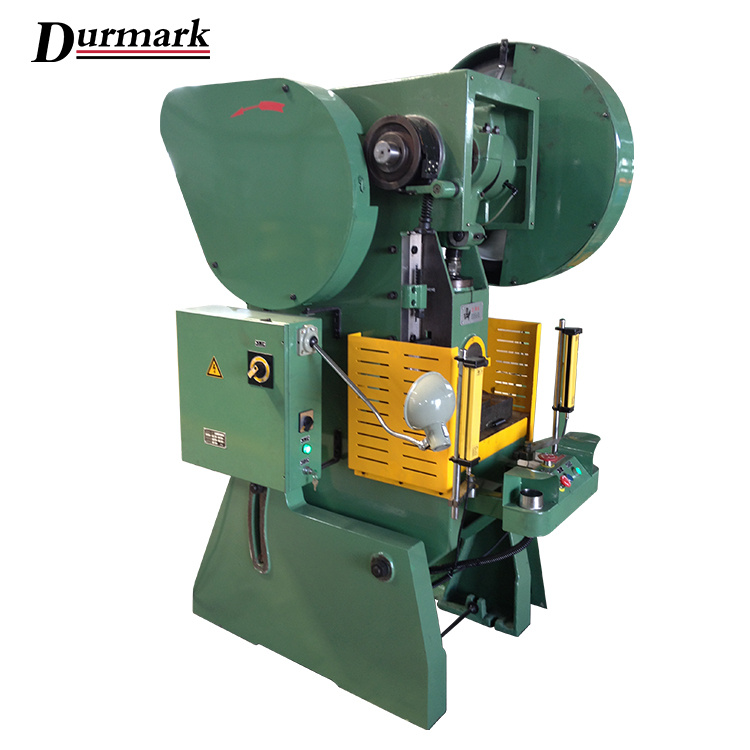

J23 90ton Mechanical Power Press Punching Machine for Cold Stamping
Price: |
US $ 1000-69999/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
J23 |
Safety Protection: |
Photoelectric Protection |
Electrical: |
Chnt |
Body: |
Cast |
Function: |
Metal Processing |
CNC Feeding System: |
Available |
Worktable: |
Inclinable |
Material: |
Aluminum, Ss, Ms, etc |
Application: |
Metal Process |
Color: |
Customizable |
Product Name: |
J23 90ton Mechanical Power Press Punching Machine |
Type: |
General Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Product Description
Pipe hole punching machine/mechanical power press punching holes in tubes
J23 series open press is a sheet metal Universal presses for shearing, punching,blanking, bending and shallow drawing work. Usually used for ( communications,computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles)metal parts stamping and forming).
No | Name | J23-80T |
1 | Nominal force(KN) | 800 |
2 | Nominal force stroke(mm) | 5 |
3 | Slider stroke(mm) | 115 |
4 | Slider stroke times(time\min) | 45 |
5 | Maximum height for die loading | 410 |
6 | Adjustment range for die loading height | 60 |
7 | Distance between slider center line and the fuselage | 280 |
8 | Worktable size | 500*750 |
9 | Work table blanking hole size | D200*250*375 |
10 | Slider bottom size | 250*300 |
11 | Shank hole size | D60*Depth100 |
12 | Distance between columns(mm) | 360 |
13 | Bolster thickness(mm) | 90 |

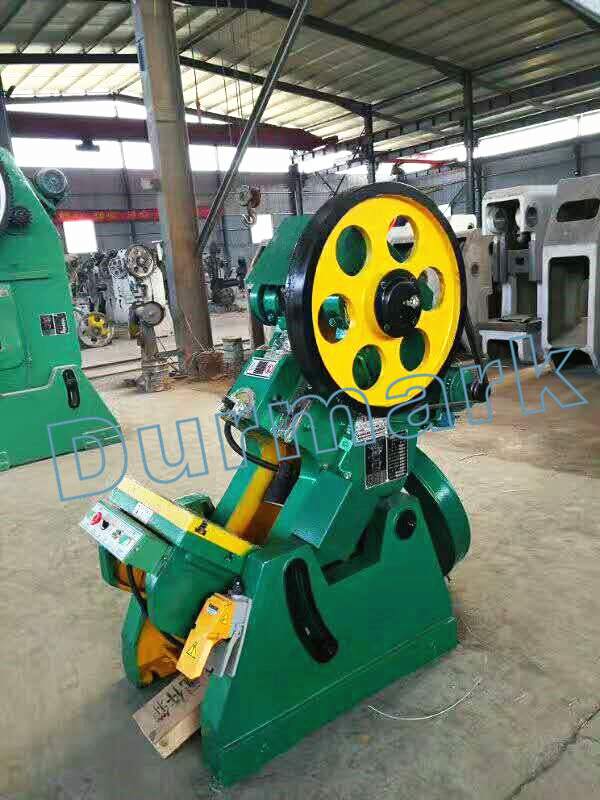

14 | Tilting degree(degree) | 20 |
15 | Motor(kw) | 7.5 |
Main Features

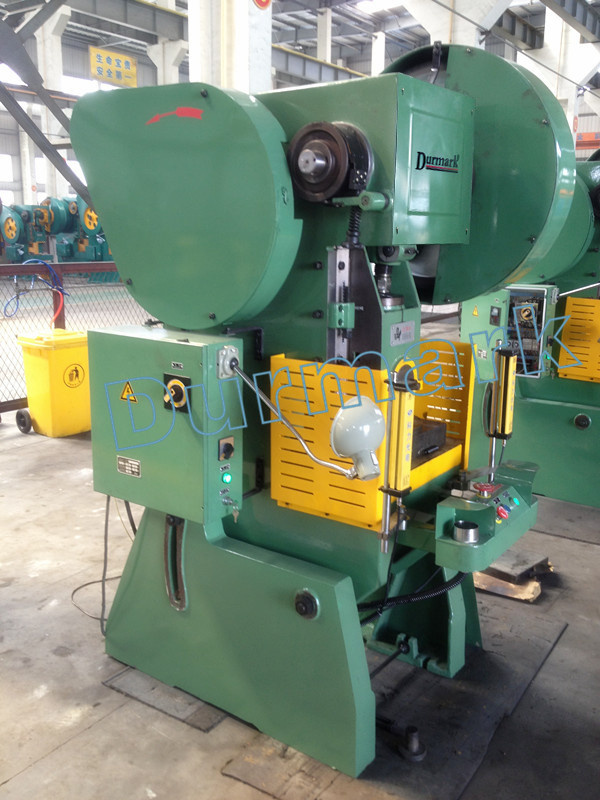

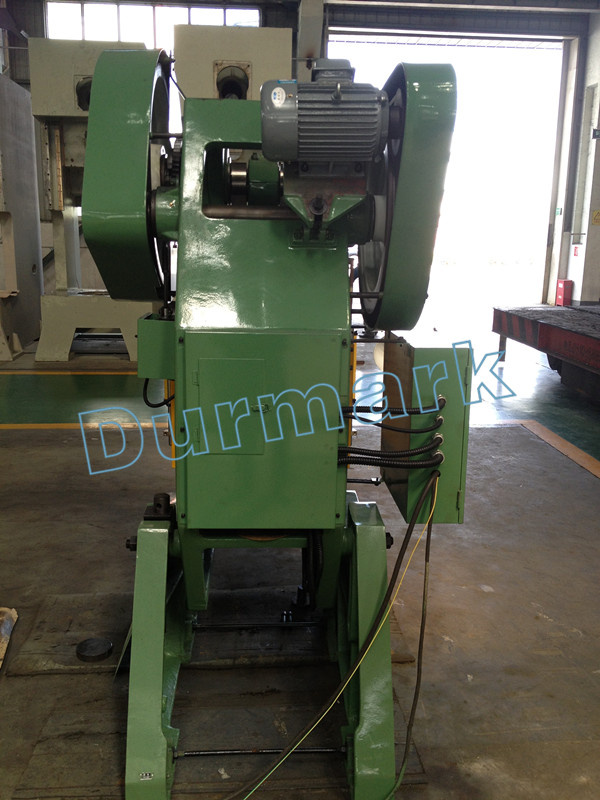

1, With foundry structure for better vibration resistance. 2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.3, The good rigidity of Casting box structure slider.4, Built-in block collapsed overload protection device, the structure is simple, if slider afteroverload, fuse collapsed destroyed to protect the machine and mold from damage.5, Four elongated triangular rail, easy for adjustment.6, Adopts hands and foot switch operation buttons design, it's easy to activate continuous,single and adjustment practices.7, Compatible with the corresponding punch automatic feeding system, which having a feedingerror detection, pre-cut and pre-breaking device, low cost and high efficiency.Packing & Delivery Plastic film, wooden package, or as requirement.Delivery Detail: 15 daysDetailed Images

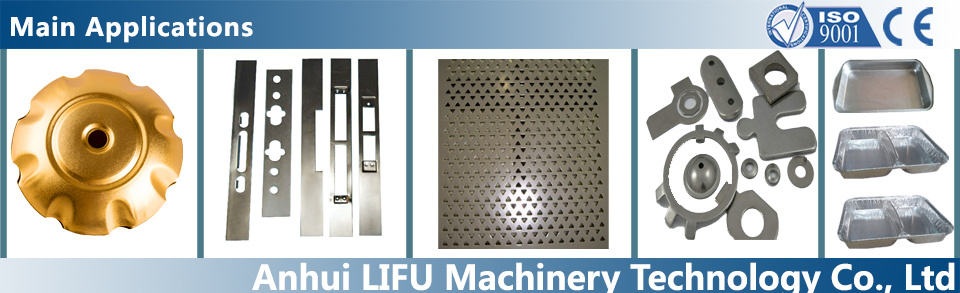

Main application
Our ServicePre-sales Service:
1. Inquiry and consulting support.2. Sample testing support .3. Recommend the most suitable machine according to customer's purpose.4. Factory visiting welcomed.After-sales Service:
1. Training how to install the machine .2. Training how to use the machine .3. Warranty 1 year.4. Engineers available to service machinery oversea .FAQHow about your machine quality? We are worry about the quality.RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.Whether the machine price can be more discount?RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.Please feel free to contact me if you would like to know more.
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100, 000 square meters, of which about office space 2, 000 square meters, a semi-finished workshop about 6, 000 square meters, finishing department about 8, 000 square meters, welding workshop about 4, 000 square meters, Grinding processing workshops about 2, 000 square meters, a variety of spare parts warehouse of about 2, 000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
One set 12m CNC cutting machine, four sets precision grinder, drilling machine, CNC lathe, normal lathe, kinds of small process machine and hundreds of workpiece detection equipment, etc.
