| Prod Model: |
JSB1900S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Jack Hammer |
| Rod Diameter: |
140 Mm |
| Weight: |
1898 Kg |
| Length: |
2810 Mm |
| Pressure: |
160-180 Kg/Cm2 |
| Flow: |
130-170 L/Min |
| Rate: |
400-600 Bpm |
| Hose: |
1 Inch |
| Suitable Excavator: |
19-26 Ton |
| Color: |
at Cusomer's Request |
| Certification: |
SGS |
| Condition: |
New |
Product Description

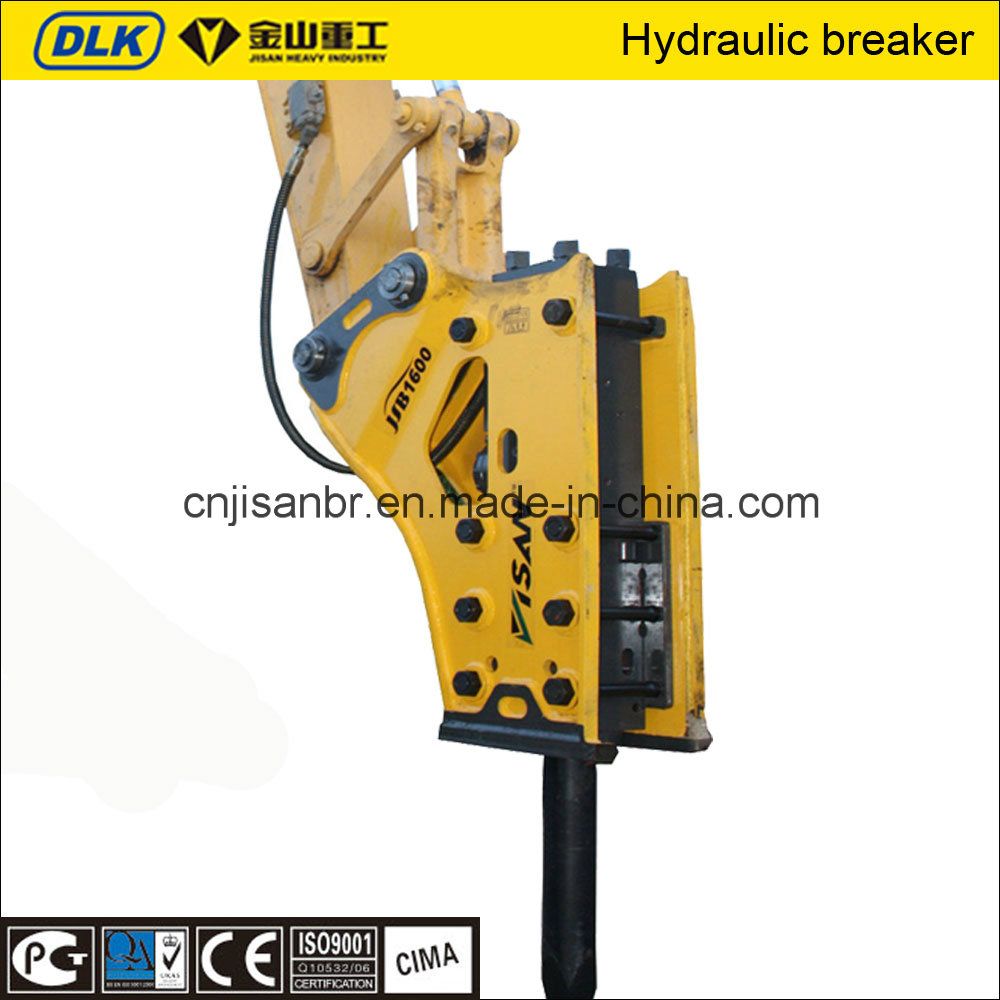

Jack Hammer
Product Description
Features:
1. Advanced Breaking Technology
a. Deck durability design. The naked deck adopts high-intensitive steel plate to decrease wear.
b. Oil seal durability design. The face increased pressure in the oil seal is designed to return oil passage, reduce oil seal pressure, and improve oil seal service life.
c. Lightweight design. Achieve the best match with excavators and loaders.
d. Low noise. In the city whose noise is limited, choose low-noise bracket breaker, which reduces noise effectively through the damping rubber cushion and seal box.
2. Powerful Hydraulic System Increased the Impact of Nitrogen
Superior performance. New hydraulic drive system for nitrogen provides a powerful blow crushing power; the maximum impact kinetic energy brings the highest production efficiency.
3. Long Working Life Reduces the Cost
a. Well-chosen alloy steel makes sure a longer working life
b. High precision processing and excellent heat treatment technology is designed to make Jishan breaker more durable.
4. Sufficient, Precise Spare Parts of High Quality
Strict quality testing system ensures the product's high quality and performance.
Parameters:
Item / Model |
Unit |
JSB200 |
JSB400 |
JSB600 |
JSB800 |
JSB900 |
Total Weight |
Kg |
90 |
254 |
264 |
486 |
853 |
Overall Length |
Mm |
1270 |
1347 |
1528 |
1920 |
2260 |
Operating Pressure |
Kg/cm2 |
80-100 |
110-140 |
110-160 |
120-170 |
150-170 |
Required Oil Flow |
L/min |
15-25 |
25-45 |
30-45 |
45-85 |
80-120 |
Impact Rate |
Bpm |
700-1200 |
500-900 |
500-800 |
400-700 |
400-700 |
Hosepipe Diameter |
Inch |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
Rod Diameter |
Mm |
45 |
68/70 |
75 |
85 |
100 |
Suitable Excavator |
Ton |
1.5-3.0 |
3.0-5.5 |
4.0-7.0 |
7.0-14 |
11-16 |
Item / Model |
UNIT |
JSB1200 |
JSB1600 |
JSB1900 |
JSB2800 |
JSB3500 |
JSB4500 |
Total Weight |
Kg |
1300 |
1679 |
1898 |
2455 |
2650 |
3753 |
Overall Length |
Mm |
2530 |
2695 |
2810 |
2895 |
3152 |
3310 |
Operating Pressure |
Kg/cm2 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
Required Oil Flow |
L/min |
90-120 |
120-160 |
130-170 |
150-190 |
170-220 |
200-300 |
Impact Rate |
Bpm |
400-700 |
400-700 |
400-600 |
350-500 |
250-400 |
250-350 |
Hosepipe Diameter |
Inch |
1 |
1 |
1 |
1 |
1.25 |
1.25 |
Rod Diameter |
Mm |
120 |
135 |
140 |
150 |
155 |
165 |
Suitable Excavator |
Ton |
15-18 |
19-26 |
19-26 |
27-38 |
28-40 |
40-65
|
Application excavator:
CAT CASE DAEWOO HITACHI HYDUNDAI KOMATSU SAMSUNG VOLVO KOBELCO SANY SUMITOMO KATO DOOSAN ATLAS LOVOL SUNWARD IHI
Company Information
Our company is the professional manufacturer of hydraulic breaker, quick hitch, hydraulic compactor, ripper, grab bucker, hydraulic log/rock grapple for excavator, etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc. We are looking forward to having a good cooperation with you.
Our Services
1. You may email us through the messaging system if you have question or would like to submit a comment.
2. Generally, email will be responded to within 12 hours; except on every Sunday and holidays. We will reply as soon as we back in office.
3. If you don't see what you are looking for, just send us an e-mail with picture and we will be glad to help you.
4. Positive feedback is very important to us.
Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
The company mainly produces all kinds of excavator front-end equipments: Quick Coupler, Ripper, Hydraulic Compactor, Hydraulic Breaker, Hydraulic Wood Grapple, Stone Grapple and Hydraulic Shears. The company has JISAN and DLK two series brand, which can suit all domestic and foreign excavators, Komatsu, Hitachi, CAT, Kobelco, Doosan, Sany, Liugong, XCMG, etc. Meanwhile tailor special devices under different working conditions according to customer's operating environment.
The company has independent import and export rights. Products are sold all over the world. The company provides supporting and processing services for the domestic and foreign many excavator manufacturers to maximize meet customers' requirements.
The company has high-quality technical team, perfect quality control system and service network; Quality is the life of enterprise. Grasp the quality source, in terms of production, strictly control of the homemade quality and production process. The company implemented 6S management, and continually improve the quality awareness of staff, combined with the assessment mechanism to supervise and inspect, and carry out quality one-vote veto to ensure product durability, reliability, fundamentally set up the concepts of Quality First.
In the future, JISAN Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years. Through the implementation of Elaboration- Diversity-Globalization the three strategic goals, promote enterprise development; Make a professional excavator front-end equipment manufacturers to stride forward the world first-class enterprise.
