Jbp920b Crawler Mounted Borehole Drilling Rig Machine for Mining

Jbp920b Crawler Mounted Borehole Drilling Rig Machine for Mining
Price: US $ 15000-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: JBP920B
Rock Hardness: F=6~20
Hole Diameter: 80-115mm
Drill Depth: 25m-30m
Walking Speed: 1.8km/H
Working Pressure: 1.0~1.7 MPa
Air Consumption: 9-16m3
Rotate Speed: 107rpm
Weight: 4200kg

Product Description

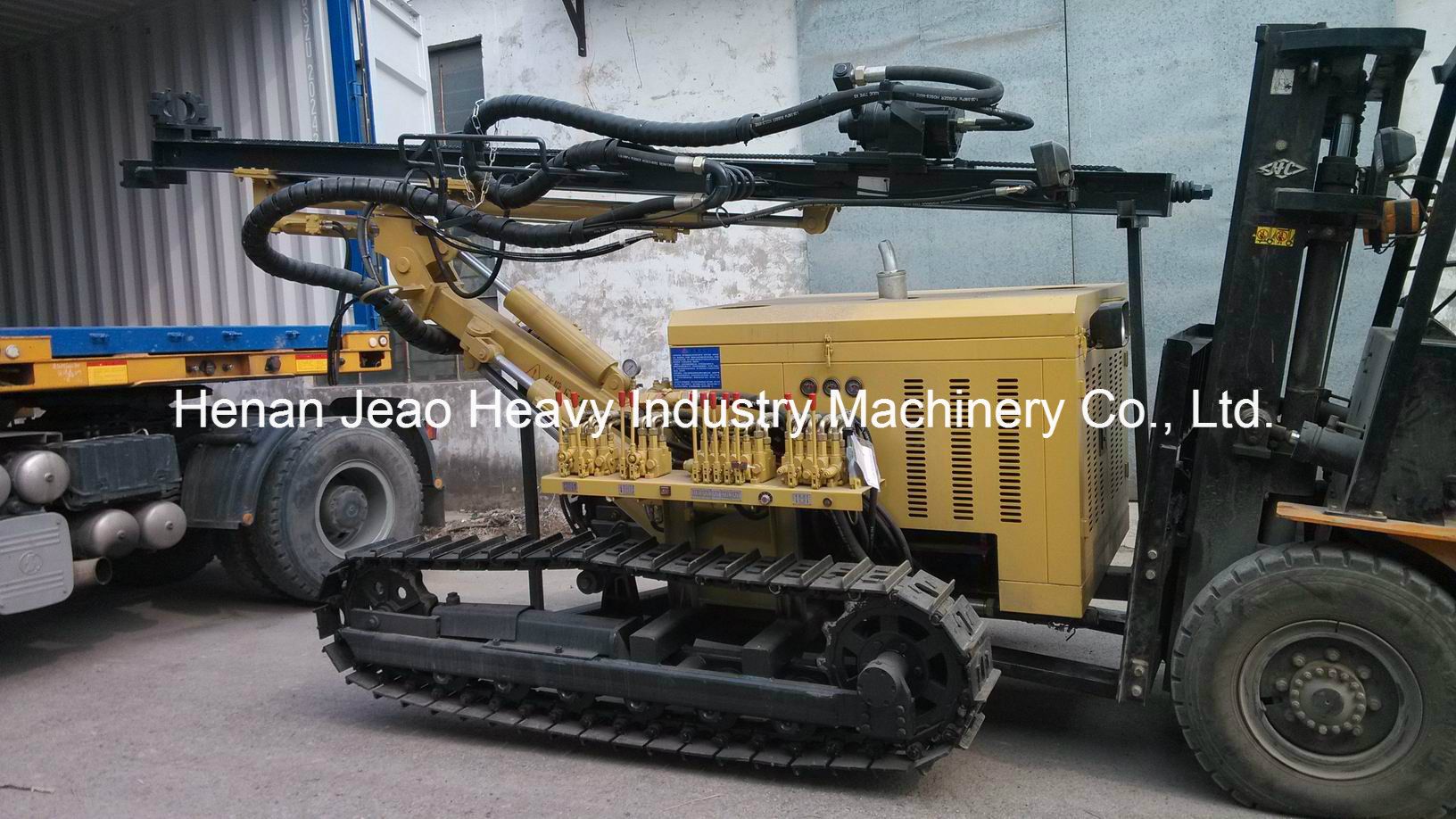

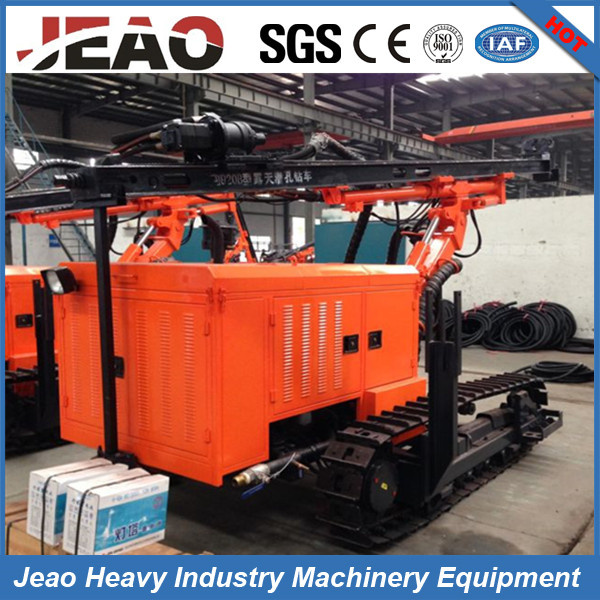

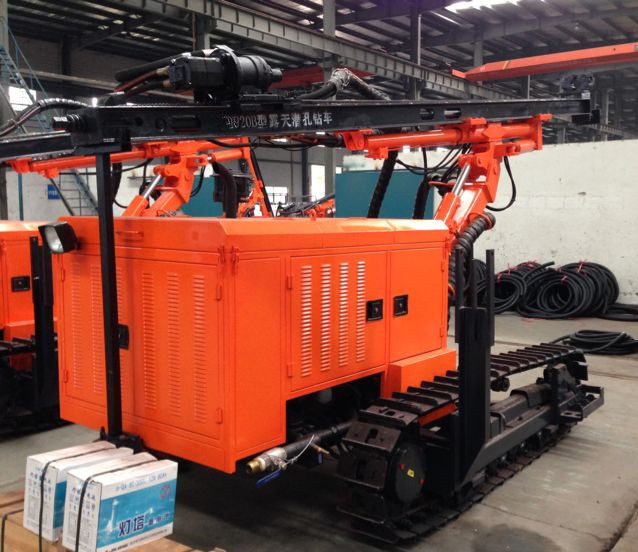

JBP920B Crawler Mounted Borehole Drilling Rig Machine For Mining

Specification for JBP920B Hydraulic-Pneumatic Crawler Rock Drilling Rig for Quarry

Model NoJBP920B
Rock hardnessF=6-20
Hole diameter80-115mm
Economic Drill depth25m
Rotating speed0-107r/min
Rotary torque 1400N.m
Lifting capacity15000N
Propulsion TypeHydro-Cylinder-Chain
Push Length3000mm
Walking speed0-1.8km/h
Grade ability30°
Ground clearance290mm
Net weight4200KGS
Dimension4400*2200*2050mm
Drill arm rising anglesDown 50° Up 25° total 75°
Drill arm swing angleLeft 44° Right 45° total 89°
Carriage swing angleLeft 100° Right 45° total 145°
Carriage tilt angleDown 135° Up5° total 145°
Carriage Compensation900mm
Diesel EngineYC4D80 (58KW 2400r/min)
Drill rod specification(mm)64×3000mm/76×3000mm
Working pressure1.0-1.7MPa
Air consumption9-16M3/min
RemarkPneumatic-Hydraulic

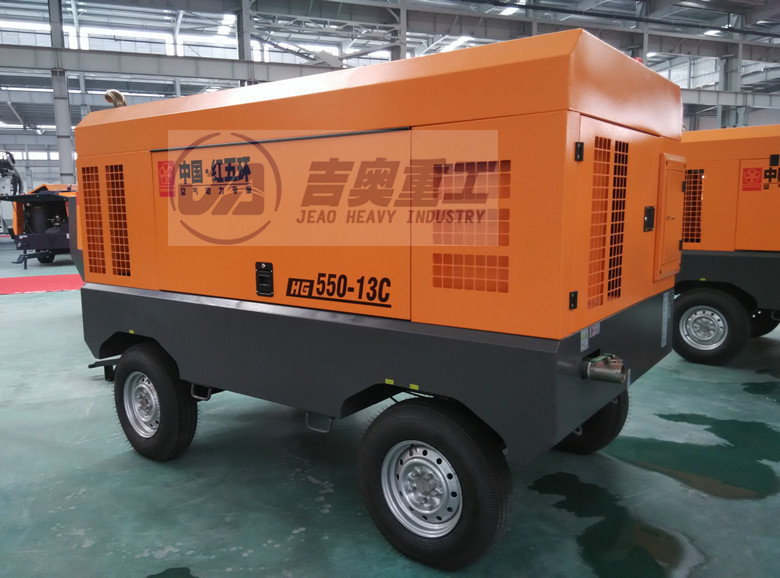

Matching Air Compressor:

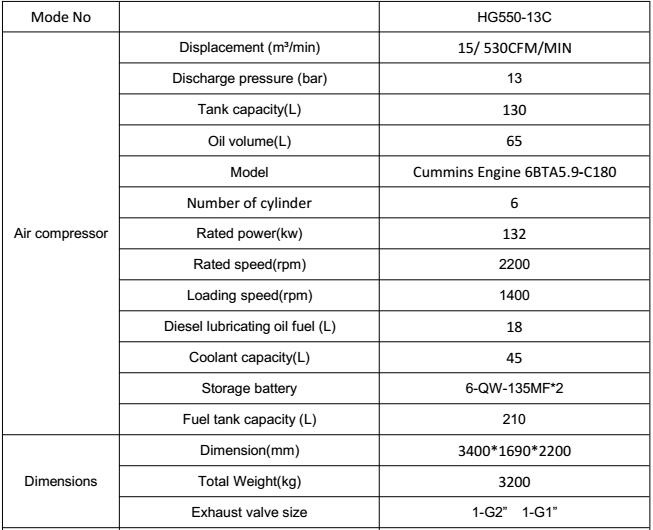

Specification for HG550-13C Diesel Screw Air Compressor:






A Company You Can Trust:

Located in Xinxiang City, Henan Province, China, Henan Jeao Heavy Industry Machinery Co., Ltd. is a professional manufacturer of screw(piston) air compressors, crawler drilling rigs, pneumatic tools, mining construction machines, crushers, etc. We have 12 years' experience in mining construction machinery and have a good reputation in this field. Our products have a vast market in foreign countries such as Nigeria, Zambia, Zimbabwe, Congo, Kenya, USA, UK, Sudan, and other countries and regions.

Quality and Safety:

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed QC, ISO & CE certifications.

Your Success, Our Glory:

Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
