Prod Model: |
JN-D1403 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Center Drill |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Performance Classification: |
Economical CNC Machine Tools |
Flute: |
2/3/4/5/6flute |
Surface: |
Coating Tialn/Altin/Nano/Balzers/Uncoating |
Cutting Diameter: |
D1(1-25mm) |
Flute Diameter: |
D2(1-25mm) |
Overall Length: |
L(50-260mm) |
Suitable For: |
Cooper/Common Materials/Stainless Steel/Cast Iron |
Trial Order: |
Accepted |
Product Description

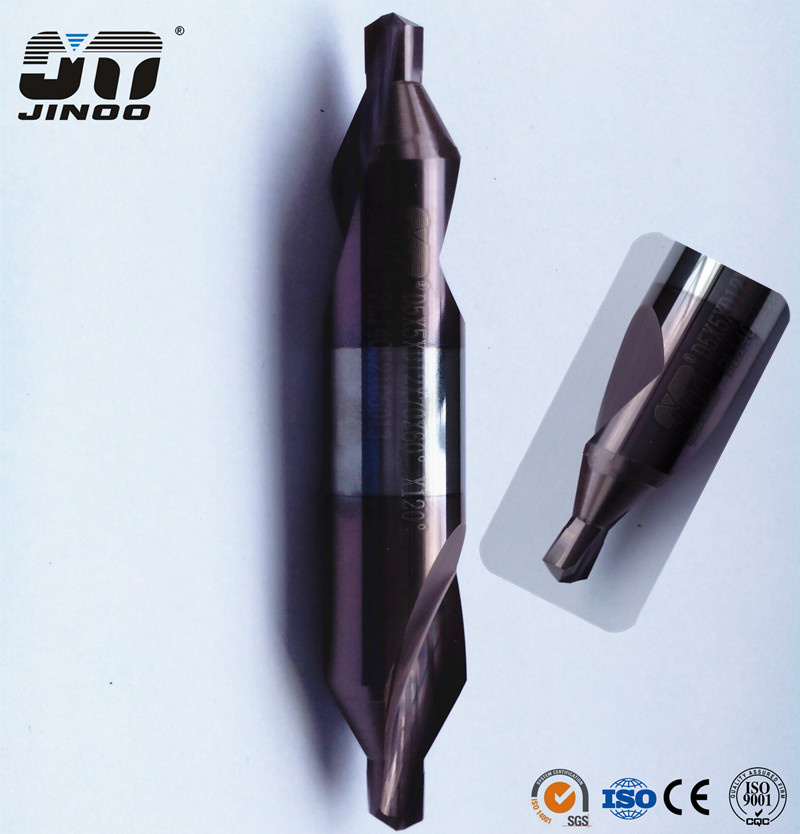

Jinoo 60 Degree Solid Carbide Center Drill Bit for Drilling ToolsSpecification 1> HRA:91.8-92.4
2> TRS:>3800N/mm2
3> CO:8%, WC:92%
4> Grain size: 0.3-1.0um
Application:
- Achievable hole tolerance H8-H9
- Clamp with high precision chucks only
- Drill lengths: 3-12 x drill diameter
- A wide range of workpiece materials
- Conventional drilling, cross holes, angled faces
- Automotive: crankshafts, engine blocks, cylinder hesds
JN-D1203 provides the high stability essential for deep holes, with high speed and efficiency.
- Accurate deep holes to depths up to 12 x drill diameter, without pecking
- High speeds and feeds allow greater productivity to reduce cost per hole
- Fast and efficient chip evacuation reduces machine downtime and increases tool life
- Internal coolant holes deliver coolant directly to the tip of the drill even at deep drilling depths

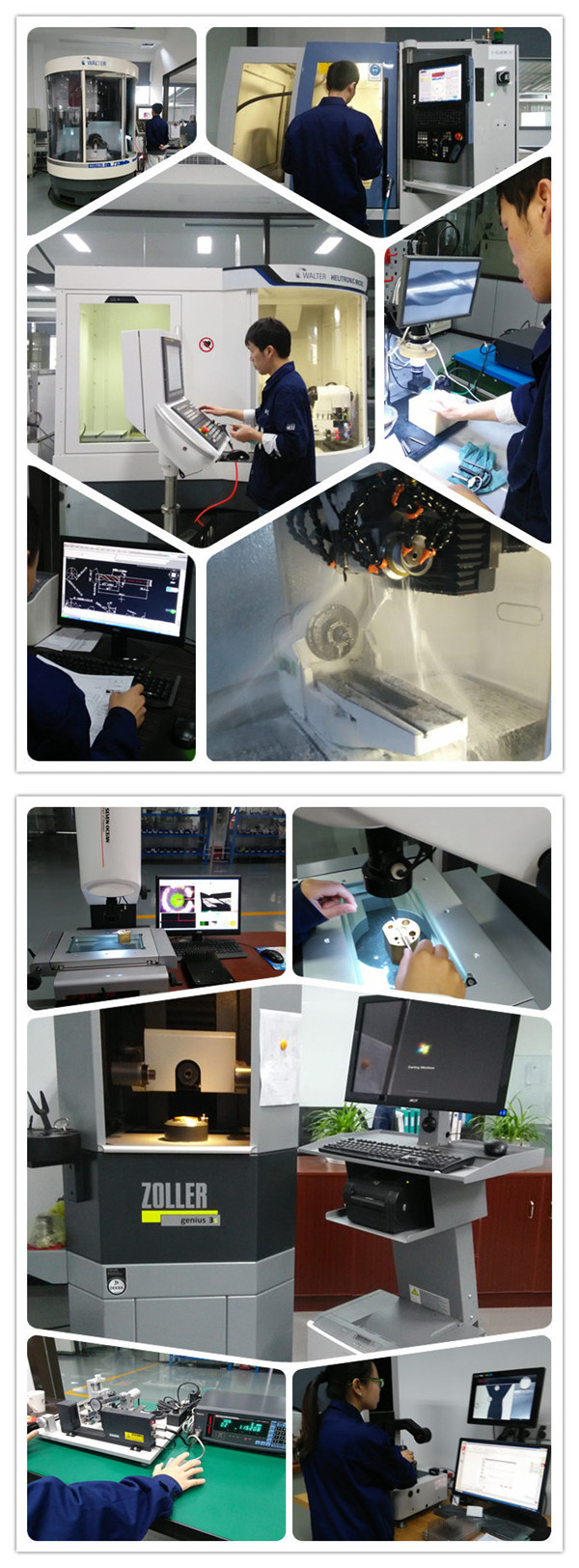

Good quality All tools are made by Walter Power and Helitronic Micro from Germany. ANCA from Australia, Rollomatic guarantee high quality and good performance.
Every end mill is inspected by Zoller and Mitutoyo measuring and inspecting machine.
Raw material 1>ZK30--For wood cutting, pcb cutting.
2> K3--Aluminum cutting, copper, etc.
3> YL10.2--steel alloy, CB Carbide--steel alloy.
4> Guhring carbide from Germany--stainless steel, steel, etc. Taegutec Carbide from Korea-- stainless steel, steel, etc.
5> H10F Sandvik Carbide-- stainless steel steel, etc.

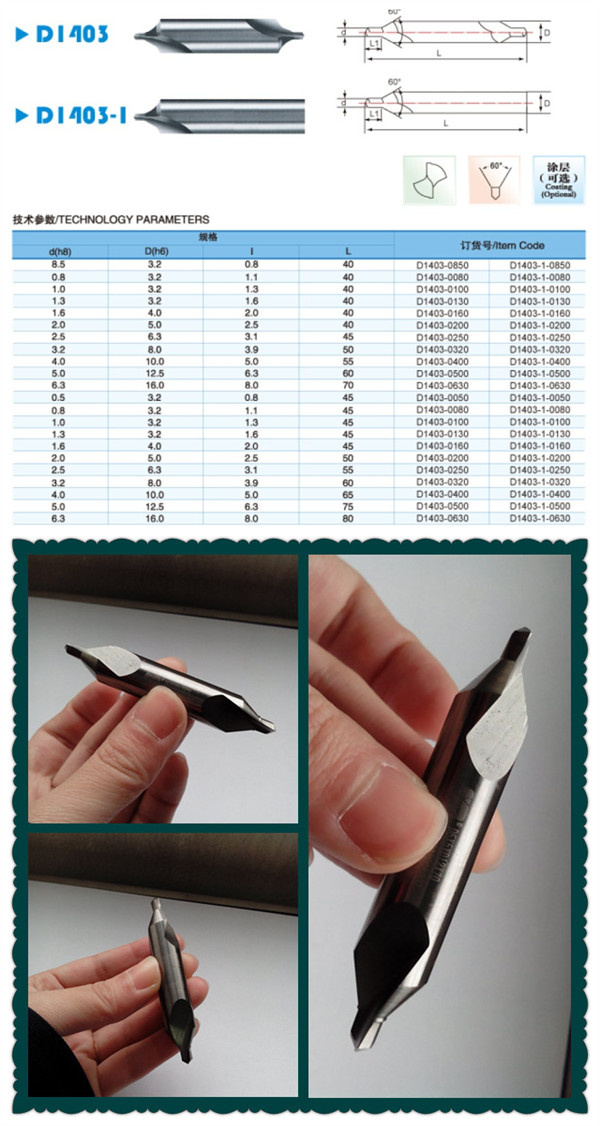

Diameter | Cutting length | Over length | Shank |
0.5 | 3 | 50 | 3 |
1.0 | 6 | 50 | 3 |
1.5 | 9 | 50 | 3 |
2.0 | 12 | 50 | 3 |
2.5 | 14 | 50 | 3 |
3.0 | 16 | 50 | 3 |
3.5 | 20 | 55 | 4 |
4.0 | 22 | 55 | 4 |
4.5 | 24 | 75 | 6 |
5.0 | 26 | 75 | 6 |
5.5 | 28 | 75 | 6 |
6.0 | 28 | 75 | 6 |
6.5 | 31 | 80 | 8 |
7.0 | 34 | 80 | 8 |
7.5 | 34 | 80 | 8 |
8.0 | 37 | 80 | 8 |
8.5 | 37 | 90 | 10 |
9.0 | 40 | 90 | 10 |
9.5 | 40 | 90 | 10 |
10.0 | 43 | 90 | 10 |
11.0 | 47 | 100 | 12 |
12.0 | 51 | 100 | 12 |
13.0 | 51 | 100 | 14 |
14.0 | 51 | 100 | 14 |
16.0 | 51 | 100 | 16 |
18.0 | 51 | 100 | 18 |
20.0 | 51 | 100 | 20 |
Package1> White parts for protect the flute of cutters2> Laser brand and demensions on the body of cutters, print labels.
3> 10pcs each group, packed in small paper box.
4> Sealed with air bubble wrap, pack into bigger carton.
Our service>> Trade term: EXW HS Code: 8207509000 >> Payment term: T/T (Bank tranfer) , Western Union, PayPal.
>> Customized or special cutters are welcome
>> OEM orders are welcome
FAQ Note:
1. All the end mills, carbide drill bit and reamers should be used depending on there workpieces, then it may be play the biggest roles.
2.Cutting tools are sharp, when usage it please careful.
Any further questions, pls feel free to tell me. thanks !!!
Contact Way
Changzhou Jingnuo Tools Co., Ltd
ADD :NO.6-7,Yueshan Road,Xixiashu Town,Xinbei District,Changzhou City,Jiangsu Province,China(Mainland)
Contact: Cherry Lv
Tel :+86-0519-69887533 ext.56533
Fax :+86-0519-83435899
Mobile:+86 139-5122-9576
Website:www.jntool.cn
If you need our quotation pls send e-mail to me ,I will reply to you asap.
We would like to take this opportunity to establish business relationship with you.
We are hot welcomed to visit our factory in Jiangsu China.
The following Specification for your refer, We also provide the OEM or ODM service
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
