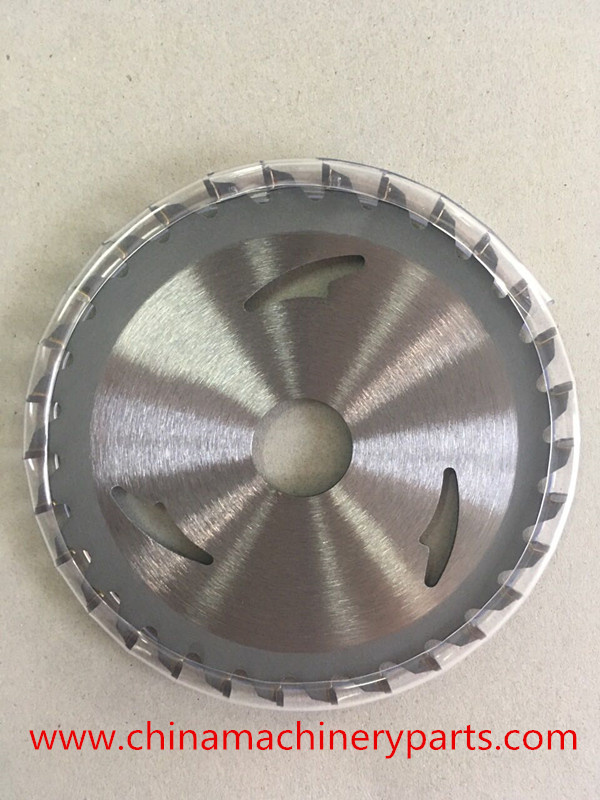

Kanzo Factory Supply Tct Saw Blade for Wood
| Price: |
US $ 1-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
TCT saw blade for wood |
| Teeth: |
Designable |
| Material: |
HSS, Alloy Steel, Tct |
| Other Coating: |
Tin,Ticn,Tialn |
| Quality Gurantee: |
Get Replacement |
Product Description
Saw blade including metal hot-cutting circular hss circular saw blade, metal cold-cutting circular hss circular saw blade , TCT circular hss circular saw blade , HSS segmental circular hss circular saw blade , and diamond circular saw blank . | Diameter | mm | Bore |
| 1.5" | 40 | 5/8" to 2" |
| 8" | 200 | 5/8" to 2" |
| 10" | 250 | 5/8" to 2" |
| 12" | 300 | 5/8" to 2" |
| 14" | 350 | 5/8" to 2" |
| 15" | 400 | 5/8" to 2" |
| 19" | 500 | 5/8" to 2" |
| HSS/ HSS-E DMo5 circular saw blade M2 M35 DIN 1.3343 DIN 1.3243 |
| Dia*thickness | Hole:From 5mm-32mm-40mm-50mm etc | | | | | |
| 20x0.2-3 | 25x0.2-6 | 32x0.2-6 | | | | |
| 40x0.2-0.8 | 75x6.5-7 | 125x0.8-1.2 | | | | |
| 40x1-1.5 | 75x7.5-8.5 | 125x1.5 | | | | |
| 40x2 | 80x0.5-0.8 | 125x2 | | | | |
| 40x2.5-3 | 80x1-1.2 | 125x2.5-3 | | | | |
| 40x3.5-4 | 80x1.5 | 125x3.5-4 | | | | |
| 40x4.5-5 | 80x2 | 125x5 | | | | |
| 50x0.5-0.8 | 80x2.5-3 | 125x5.5-6 | | | | |
| 50x1-1.5 | 80x3.5-4 | 150x1-1.2 | | | | |
| 50x2 | 80x4.5-5 | 150x1.5 | | | | |
| 60x0.3-0.4 | 80x5.5-6 | 150x2 | | | | |
| 60x0.5-0.8 | 80x6.5-7 | 150x2.5-3 | | | | |
| 60x1-1.2 | 80x8 | 150x3.5-4 | | | | |
| 60x1.5 | 100x0.5-0.8 | 150x4.5-5 | | | | |
| 60x2 | 100x1-1.2 | 150x5.5-6 | | | | |
| 60x2.5-3 | 100x1.5 | 150x6.5-7 | | | | |
| 60x3.5-4 | 100x2 | 150x7.5-8.5 | | | | |
| 60x4.5-5 | 100x2.5-3 | 160x1-1.2 | | | | |
| 63x0.5-0.8 | 100x3.5-4 | 160x1.5 | | | | |
| 63x1-1.2 | 100x4.5-5 | 160x2 | | | | |
| 63x1.5 | 100x5.5-6 | 160x2.5-3 | | | | |
| 63x2 | 100x7 | 160x3.5-4 | | | | |
| 63x3 | 100x8 | 160x4.5-5 | | | | |
| 75x0.5 | 110x0.8-1.2 | 160x5.5-6 | | | | |
| 75x0.6-0.8 | 110x1.5 | 200x1.5 | | | | |
| 75x1-1.2 | 110x2 | 200x2 | | | | |
| 75x1.5 | 110x2.5-3 | 200x2.5-3 | | | | |
| 75x2 | 110x3.5-4 | 200x3.5-4 | | | | |
| 75x2.5-3 | 110x4.5-5 | 200x4.5-5 | | | | |
| 75x3.5-4 | 110x5.5-6 | 200x5.5-6 | | | | |
| 75x4.5-5 | 110x7 | 200x6.5-7 | | | | |
| 75x5.5-6 | 110x8 | 200x7.5-8.5 | | | | |
| 225x2 | 250*1.0-2.5 | 275x1.0-2.5 | | | | |
| 300x1.2-3.0 | 315x2.0-3.0 | 325x2.0-2.5 | | | | |
| 350x2.0-3.0 | 370x2.5 | 400x2.0-3.0 | | | | |
| 425x3.0 | 450x3.0 | 500x3.0-4.0 | | | | |
| T.C.T circular saw blade for Aluminum Brass etc | | |
| Dia* thickness*hole | | Teeth No.BW/BS |
| 250x4.0/5.0/6.0/7.0/8.0x25.4 | | 40/60/80/100/120 |
| 255x3.2/2.8/2.0x25.4 | | 60/80/100/120 |
| 300x3.0/2.8x25.4 | 60/80/100/120 |
| 305x3.0/2.8x25.4 | 60/80/100/120 |
| 355x3.5/3.2x25.4 | 60/80/100/120 |
| 405x3.8/3.2x25.4 | 60/80/100/120 |
| 455x4.2/4.0x25.4/30 | | 60/80/100/120 |
| 500x4.4/4.0x25.4/30 | | 60/80/100/120 |
| 510x4.4/4.0x30/40/50 | | 60/80/100/120/144 |
| 550x4.4/4.0x32/40/50/80 | | 60/80/100/120/144 |
| 560x5.0x32/40/50/80 | | 48/100/120 |
| 600x5.0/4.0x32/40/50/80 | | 50/60/80/100/120 |
| 650x5.0/4.0x32/40/50/80 | | 60/80/100/120 |
| 700x6.0/5.0x32/40/50/80 | | 60/80/100/120 |
| 710x6.0/5.0x50/60/80/100 | | 60/80/100/120 |
| 750x7.0/6.5x50/60/80/100 | | 60/80/100/120 |
| 800x7.0/6.5x50/60/80/100 | | 60/80/100/120 |
| 850x8.0/7.5x50/60/80/100 | | 60/80/100/120 |
| 900x8.0/7.5x50/60/80/100 | | 60/80/100/120 |
| 910x8.0/7.5x50/60/80/100 | | 60/80/100/120 |
| 1000x10.0/8.0x50/60/80/100 | | 60/80/100/120 |
| 1050x10.0x50/60/80/100 | | 60/80/100/120 |
| 1100x10.0/9.0x80/100/120150 | | 60/80/100/120 |
| 1200x10.0/9.0x80/100/120/150 | | 60/80/100/120 |
| 1250x10.0x80/100/120/150 | | 60/80/100/120 |
| 1430x10.0x80/100/120/150 | | 120/150 |
| 1450x10.0x80/100/120/150 | | 120/150 |
| 1750x11.0x80/100/120/150 | | 150 |
| circular saw blade for cold cutting | | |
| 160x1.8x40 | 48T |
| 200x2.0x40 | 54T |
| 230x2.0x40 | 60T |
| 250x2.0x32 | 54/60/72/120 |
| 285x2.0x32 | 60/72/80 |
| 315x2.25x32 | 60/72/80/100/120/140 |
| 360x2.6x40 | 60/80/100/120/130/140 |
| 425x2.5x50 | 80T |
| 425x2.7x50 | 80/100 |
| 460x2.7x50 | 60/80/100 |

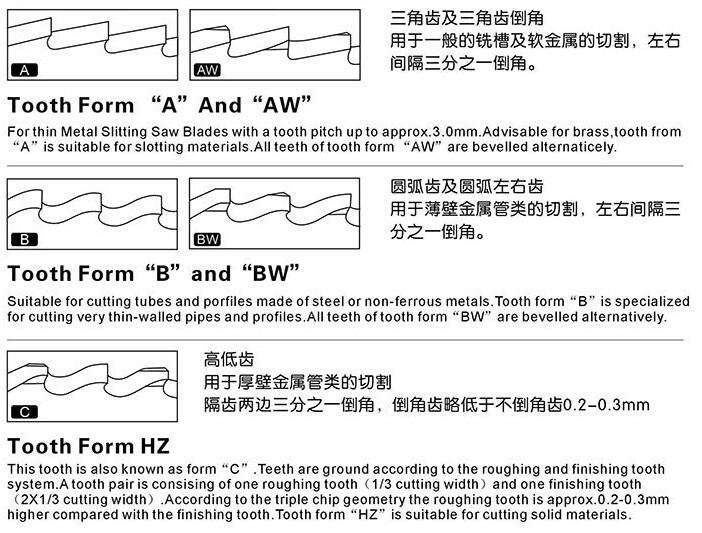

The different kinds of tooth forms are used according to different requirements of cutting.
How to choose the right tooth form?
1.Tooth form "A" and "AW"
For thin Metal Slitting Saw Blades with a tooth pitch up to approx. 3.0mm Advisable for brass, tooth form "A" is
suitable for slotting materials. All teeth of tooth form "AW" are bevelled alternatively.
2.Tooth form "B" and "BW"
Suitable for cutting tubes and profiles made of steel or non-ferrous metals. Tooth form "B" is specialized for cutting very thin walled popes and profiles. All teeth of tooth form "BW" are bevelled alternatively.
3.Tooth form HZ
This tooth is also known as form "HZ". Teeth are ground according to the roughing and finishing tooth system. A tooth pair is consisting of one roughing tooth(1/3 cutting width) and one finishing tooth(2x1/3 cutting width). According to the triple chip geometry the roughing tooth is approx.0.2-0.3mm higher compared with the finishing tooth. Tooth form "HZ" is suitable for cutting solid materials.
4.Tooth Form BR
Tooth form BR is a parrot tooth with chip breaker.This tooth form is sutiable for cutting pipes under high performance conditions because the teeth are side cutting.

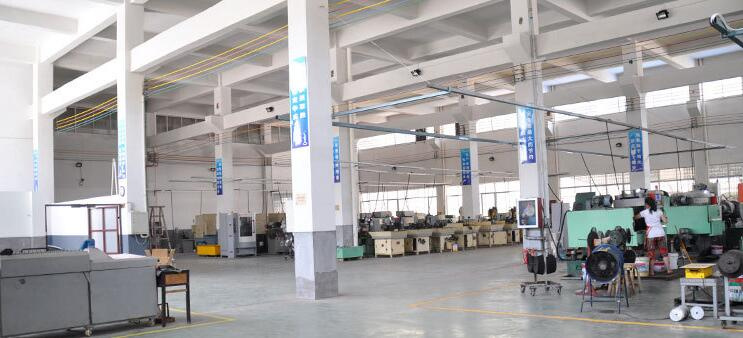

Our factory:
if you are interested or if you have any question ,please feel free to send me email or inquire below: ↓↓↓
Zhejiang Kanzo Industrial Co., Ltd is a professional supplier for casting and machined metal components for 15 years. We have a wide variety of materials, for example, carbon steel, low and high alloy steel, stainless steel, aluminum, copper, ductile cast iron etc., which are widespread used in construction machinery, Automobile electricity Industry, petroleum, agricultural and medical machinery and so on.
KANZO covers various foundries and machining factories based on various casting processes with custom CNC machines. Our CNC machines refers to turning, milling, stamping and so on.

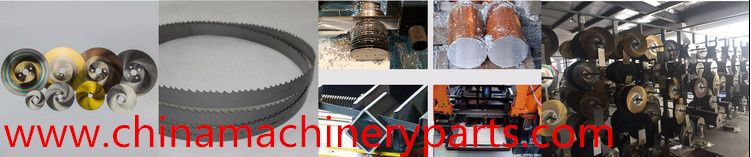

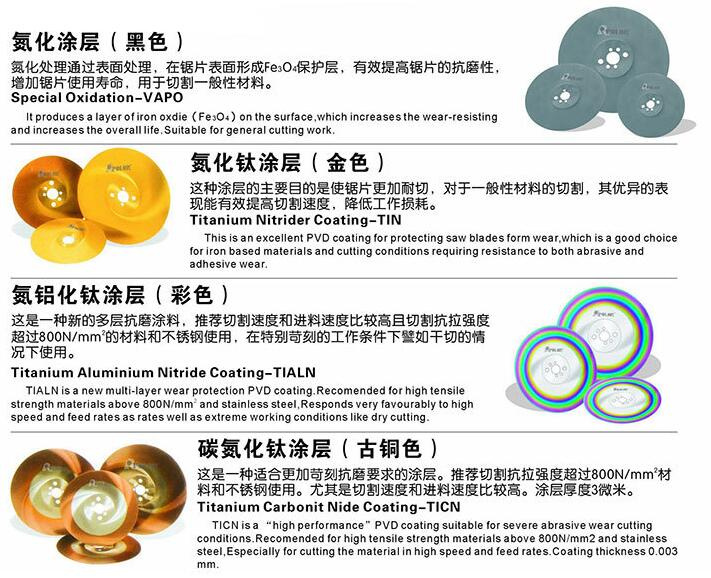

In 2006, KANZO company established its branch and started producing metal cutting circular saw blades and M42 band saw blades. The circular saw blades are supplied in high speed steel of M2 (DIN 1.3343), and cobalt-alloyed steel M35(DIN 1.3243). Diameters vary from 30 to 550 mm in various thickness, tooth forms and number. Beside PVD (physical Vapour Deposition) coating, we can provide these coatings: TiN (Titanium Nitride, TiCN (Titanium Carbon Nitride), and TiALN (Titanium Aluminium Nitride).
At present, We have more than 300 workers and with complete advanced equipment and test machine. Our factory with ISO9001 and ISO/TS16949 certified to keep supplying high quality components. Our products export to worldwide, for example Germany, USA, Canada, South America, Middle East and so on.
Kanzo also have invested in LED lighting industry which company name is ningbo new kanzo electrical. Co., Ltd.
